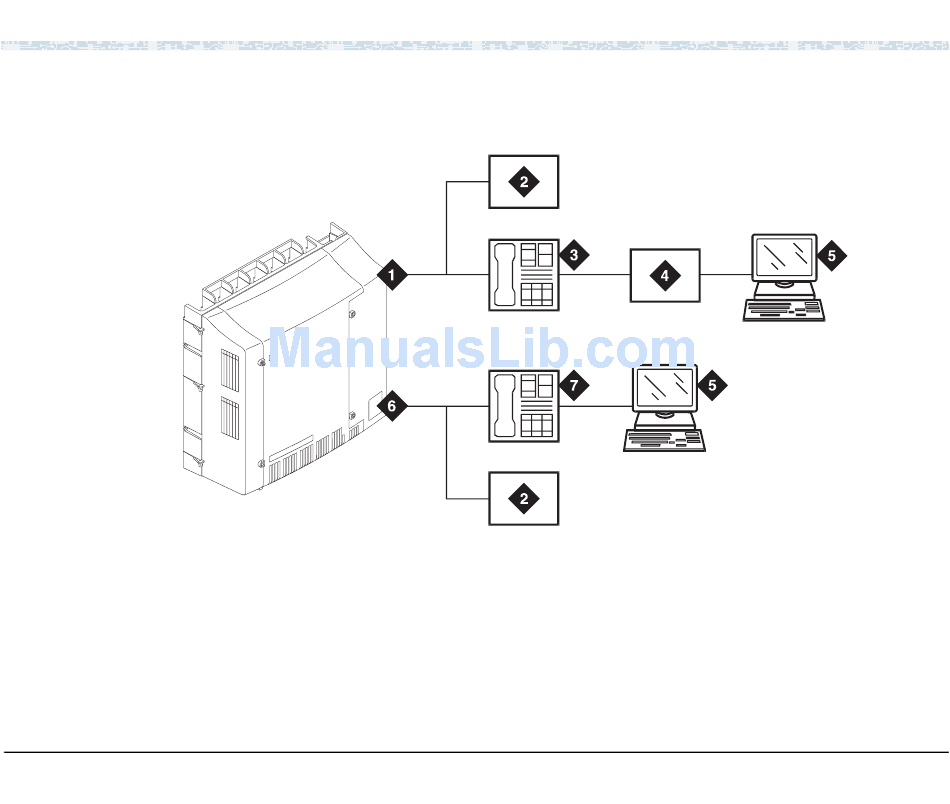

Figure 5 shows two typical PassageWay configurations.
1)
2)
3)
4)
DEFINITY ProLogix Solutions Release 2 Overview 555-235-100
Figure 5. PassageWay Direct Connect Configurations
2- or 4-wire DCP Port
Auxiliary Power
DCP Telephone
Passageway Adapter
PassageWay Direct Connection Solutions
5) Personal Computer (with Microsoft Windows)
6) 2-wire DCP Port
7) 8411 DCP Telephone with built-in
PassageWay Interface
