Attaching an External Monitor (CRT)
The computer is capable of displaying not only on the internal LCD, but also on an
external XGA display monitor. Simultaneous display on LCD and External monitor
is available. You may enter the System Configuration Utility (SCU) to select the
appropriate parameters or use the Fn + F6 keys (refer to Chapter 2, Using Hot Keys)
to change the display setting.
To connect an External Monitor, follow these steps:
1.
Turn the system power off.
2.
Connect the cable to the CRT port on the rear panel of the DeskNote
Computer.
3.
Tighten the screws to fasten the cable to the CRT port.
4.
Insert the other end of the cable to the external monitor.
5.
Turn on the DeskNote Computer.

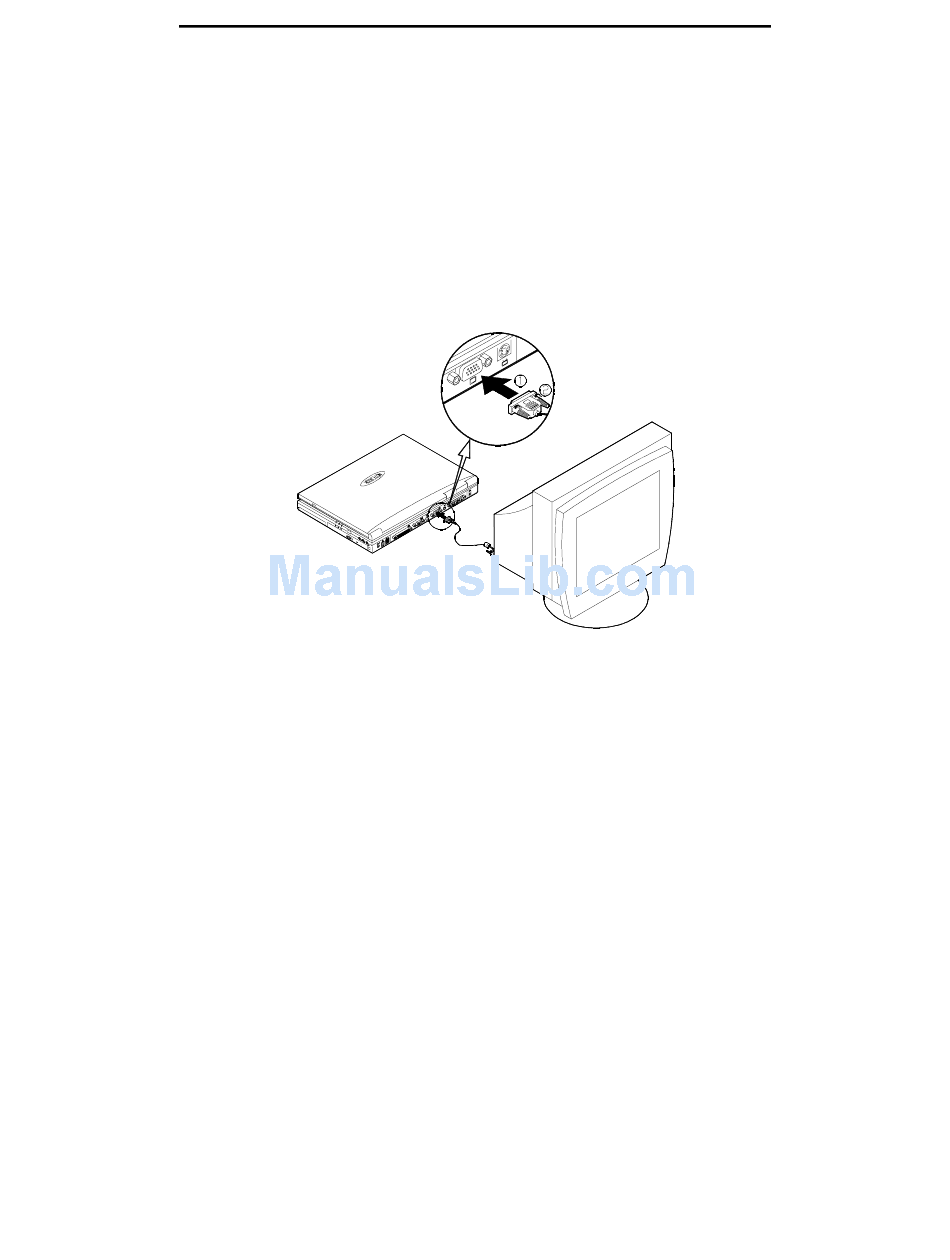

Figure 2-25
Chapter 2—Operation 2-32
