Accessing the Memory Sockets

1.
Turn the system power off.
2.
Press the two keyboard latches to elevate the keyboard from its
normal position (Figure 2-4).
3.
Carefully lift the keyboard assembly out to expose the mainboard.
Locate the memory sockets (Figure 2-6 & Figure 2-7).

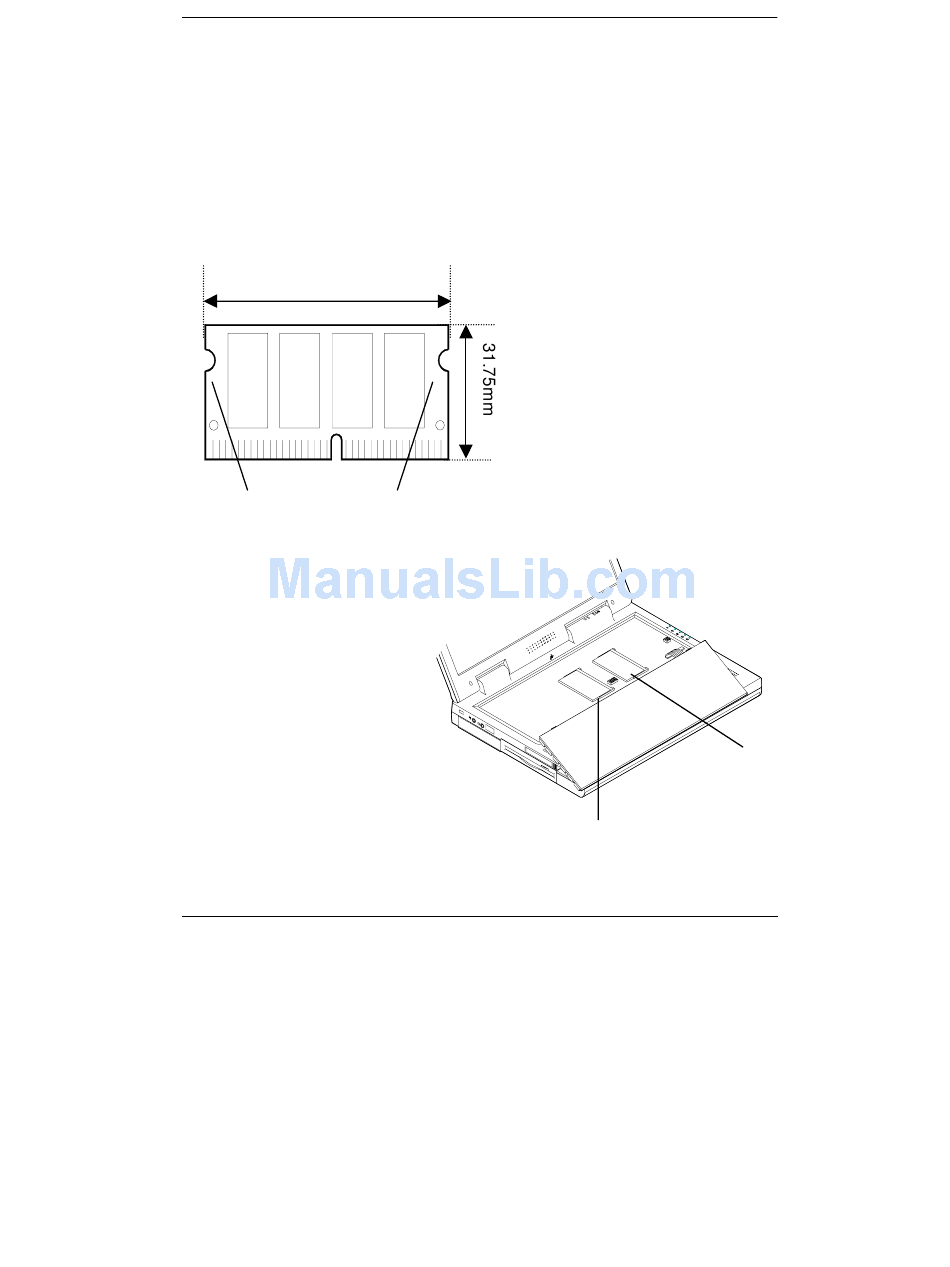

67.6mm
Non-component area
(The edges of the memory module
are the non-component area.)
Figure 2-6
2-5
Bank 0
Chapter 2: Operation
Bank 1
Figure 2-7
