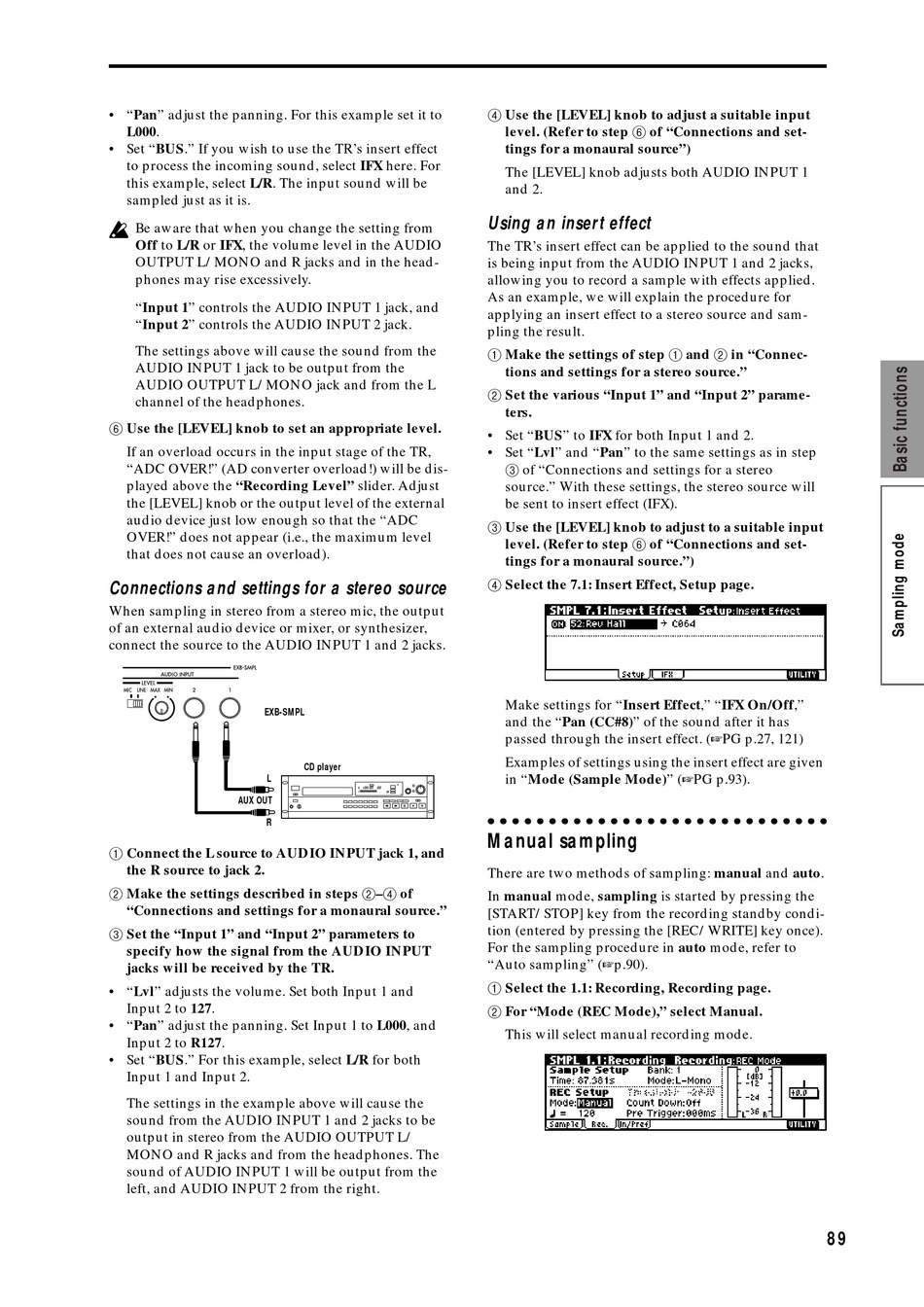

• "Pan" adjust the panning. For this example set it to
L000.
• Set "BUS." If you wish to use the TR's insert effect
to process the incoming sound, select IFX here. For
this example, select L/R. The input sound will be
sampled just as it is.
Be aware that when you change the setting from
Off to L/R or IFX, the volume level in the AUDIO
OUTPUT L/MONO and R jacks and in the head-
phones may rise excessively.
"Input 1" controls the AUDIO INPUT 1 jack, and
"Input 2" controls the AUDIO INPUT 2 jack.
The settings above will cause the sound from the
AUDIO INPUT 1 jack to be output from the
AUDIO OUTPUT L/MONO jack and from the L
channel of the headphones.
6 Use the [LEVEL] knob to set an appropriate level.
If an overload occurs in the input stage of the TR,
"ADC OVER!" (AD converter overload!) will be dis-
played above the "Recording Level" slider. Adjust
the [LEVEL] knob or the output level of the external
audio device just low enough so that the "ADC
OVER!" does not appear (i.e., the maximum level
that does not cause an overload).
Connections and settings for a stereo source
When sampling in stereo from a stereo mic, the output
of an external audio device or mixer, or synthesizer,
connect the source to the AUDIO INPUT 1 and 2 jacks.
EXB-SMPL
L
AUX OUT
R
1 Connect the L source to AUDIO INPUT jack 1, and
the R source to jack 2.
2 Make the settings described in steps 2–4 of
"Connections and settings for a monaural source."
3 Set the "Input 1" and "Input 2" parameters to
specify how the signal from the AUDIO INPUT
jacks will be received by the TR.
• "Lvl" adjusts the volume. Set both Input 1 and
Input 2 to 127.
• "Pan" adjust the panning. Set Input 1 to L000, and
Input 2 to R127.
• Set "BUS." For this example, select L/R for both
Input 1 and Input 2.
The settings in the example above will cause the
sound from the AUDIO INPUT 1 and 2 jacks to be
output in stereo from the AUDIO OUTPUT L/
MONO and R jacks and from the headphones. The
sound of AUDIO INPUT 1 will be output from the
left, and AUDIO INPUT 2 from the right.
CD player
4 Use the [LEVEL] knob to adjust a suitable input
level. (Refer to step 6 of "Connections and set-
tings for a monaural source")
The [LEVEL] knob adjusts both AUDIO INPUT 1
and 2.
Using an insert effect
The TR's insert effect can be applied to the sound that
is being input from the AUDIO INPUT 1 and 2 jacks,
allowing you to record a sample with effects applied.
As an example, we will explain the procedure for
applying an insert effect to a stereo source and sam-
pling the result.
1 Make the settings of step 1 and 2 in "Connec-
tions and settings for a stereo source."
2 Set the various "Input 1" and "Input 2" parame-
ters.
• Set "BUS" to IFX for both Input 1 and 2.
• Set "Lvl" and "Pan" to the same settings as in step
3 of "Connections and settings for a stereo
source." With these settings, the stereo source will
be sent to insert effect (IFX).
3 Use the [LEVEL] knob to adjust to a suitable input
level. (Refer to step 6 of "Connections and set-
tings for a monaural source.")
4 Select the 7.1: Insert Effect, Setup page.
Make settings for "Insert Effect," "IFX On/Off,"
and the "Pan (CC#8)" of the sound after it has
passed through the insert effect. (
Examples of settings using the insert effect are given
in "Mode (Sample Mode)" (

Manual sampling

There are two methods of sampling: manual and auto.
In manual mode, sampling is started by pressing the
[START/STOP] key from the recording standby condi-
tion (entered by pressing the [REC/WRITE] key once).
For the sampling procedure in auto mode, refer to
"Auto sampling" (
p.90).
1 Select the 1.1: Recording, Recording page.
2 For "Mode (REC Mode)," select Manual.
This will select manual recording mode.
PG p.27, 121)
PG p.93).
89
