Write protect
switch
Protected
Loading data

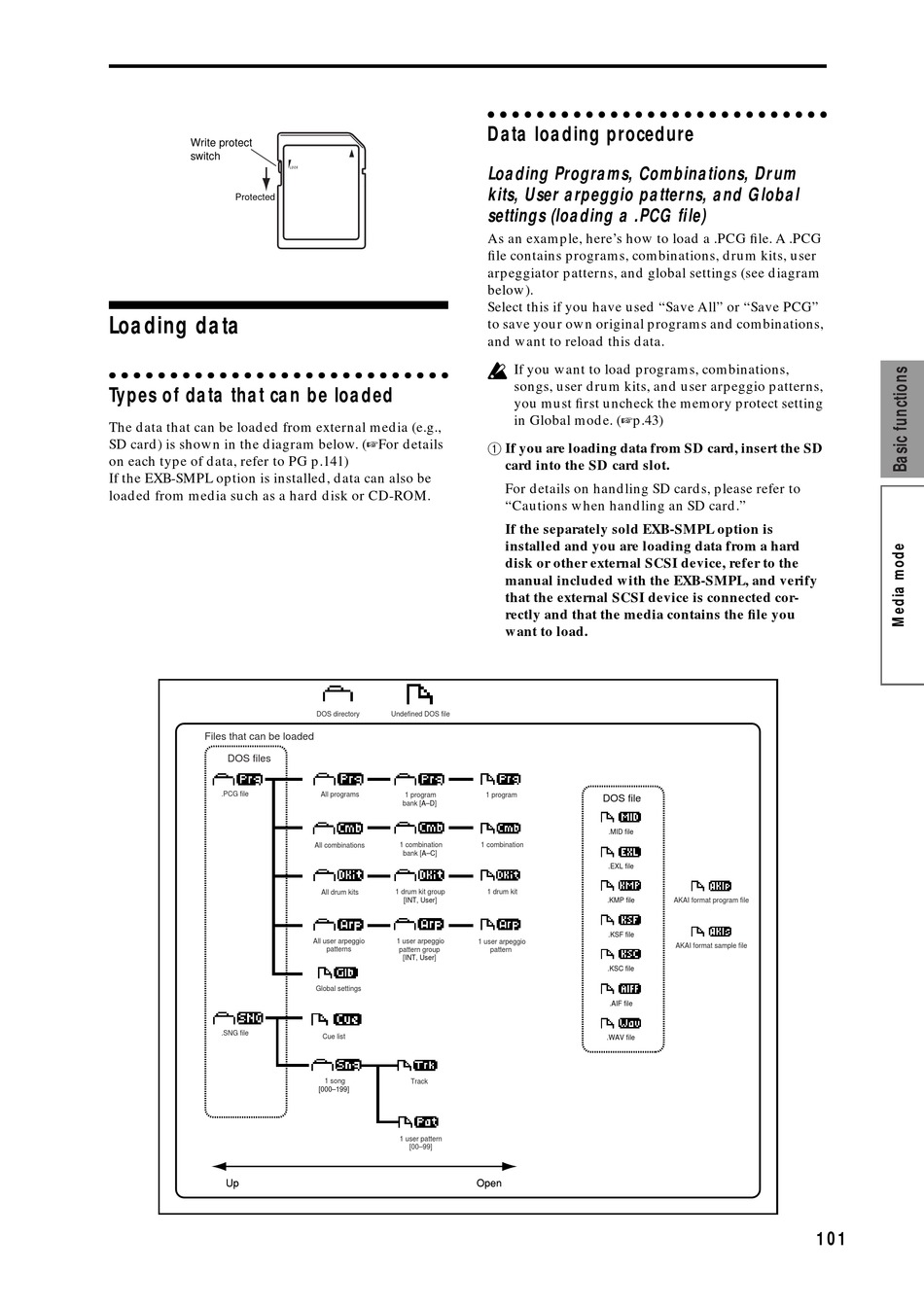

Types of data that can be loaded
The data that can be loaded from external media (e.g.,
SD card) is shown in the diagram below. (
on each type of data, refer to PG p.141)
If the EXB-SMPL option is installed, data can also be
loaded from media such as a hard disk or CD-ROM.
Files that can be loaded
DOS files
.PCG file
.SNG file
LOCK
☞
For details
DOS directory
Undefined DOS file
All programs
1 program
bank [A–D]
All combinations
1 combination
bank [A–C]
All drum kits
1 drum kit group
[INT,
User]
All user arpeggio
1 user arpeggio
patterns
pattern group
[INT,
User]
Global settings
Cue list
1 song
Track
[000–199]
1 user pattern
[00–99]
Data loading procedure
Loading Programs, Combinations, Drum
kits, User arpeggio patterns, and Global
settings (loading a .PCG file)
As an example, here's how to load a .PCG file. A .PCG
file contains programs, combinations, drum kits, user
arpeggiator patterns, and global settings (see diagram
below).
Select this if you have used "Save All" or "Save PCG"
to save your own original programs and combinations,
and want to reload this data.
If you want to load programs, combinations,
songs, user drum kits, and user arpeggio patterns,
you must first uncheck the memory protect setting
☞
in Global mode. (
p.43)
1 If you are loading data from SD card, insert the SD
card into the SD card slot.
For details on handling SD cards, please refer to
"Cautions when handling an SD card."
If the separately sold EXB-SMPL option is
installed and you are loading data from a hard
disk or other external SCSI device, refer to the
manual included with the EXB-SMPL, and verify
that the external SCSI device is connected cor-
rectly and that the media contains the file you
want to load.
1 program
DOS file
.MID file
1 combination
.EXL file
1 drum kit
.KMP file
.KSF file
1 user arpeggio
pattern
.KSC file
.AIF file
.WAV file
AKAI format program file
AKAI format sample file
101
