AT&T MERLIN LEGEND Data Manual page 67

P l a n n i n g
LOCAL HOST
WORKSTATION
ON LOCAL
AREA
NETWORK

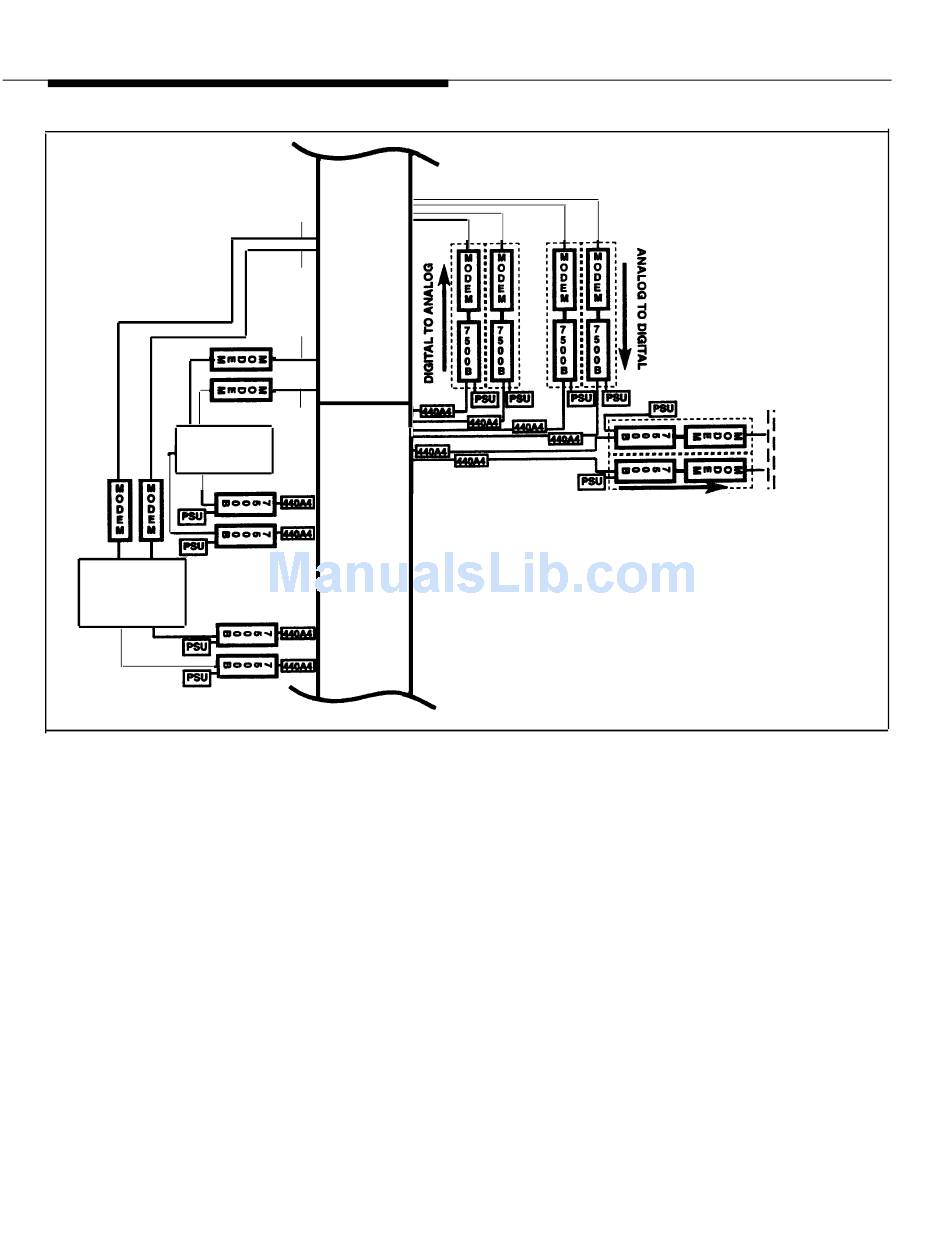

Figure 3-3 Data Hunt Groups
E.
DHG {
T/R
c .
} DHG
T/R
012 BASIC
TELTPHONE
STATION
JACKS
T/R
A.
}
DHG
F .
DHG {
T/R
G .
DHG {
B.
}
DHG
008 MLX
STATION
JACKS
D.
}
DHG
Members of a data hunt group must be the same data station—digital or analog.
When you assign members of a modem pool to a data hunt group, be sure to
assign only those members that are reached during the first stage of dialing. In
an analog-to-digital modem pool, assign the modems to the data hunt group; in
a digital-to-analog modem pool, assign the ISDN 7500B Data Modules to the
data hunt group.
If you have a digital-to-analog modem pool on a dedicated outside line, you
cannot place members of this type of modem pool in the same data hunt group
as members of a modem pool that uses system lines.
You can assign up to 32 data hunt groups or calling groups, or a combination of
both types. Each data hunt group can have a maximum of 20 members and
each data station can be a member of only one data hunt group.
You can also designate particular lines/trunks or pools (Hybrid/PBX only) to ring
directly into a data hunt group. However, incoming calls on a given trunk can be
directed to only one data hunt group.
DIGITAL TO ANALOG
T/R = TIP/RING
440A4 = TERMINATING RESISTOR
PSU = WP-90110-L1 POWER UNIT, 115 VAC
OR 277A Data Mounting
DEDICATED
OUTSIDE
LINES FOR
OUTGOING
CALLS
3-23
Data Hunt Groups
