Front I/O and Power Switch Assembly

1. Prepare the computer for disassembly
2. Remove the access panel
3. Remove the front bezel
4. Remove the front fan assembly
5. Remove the black T15 screw (1) that secures the assembly to the chassis.

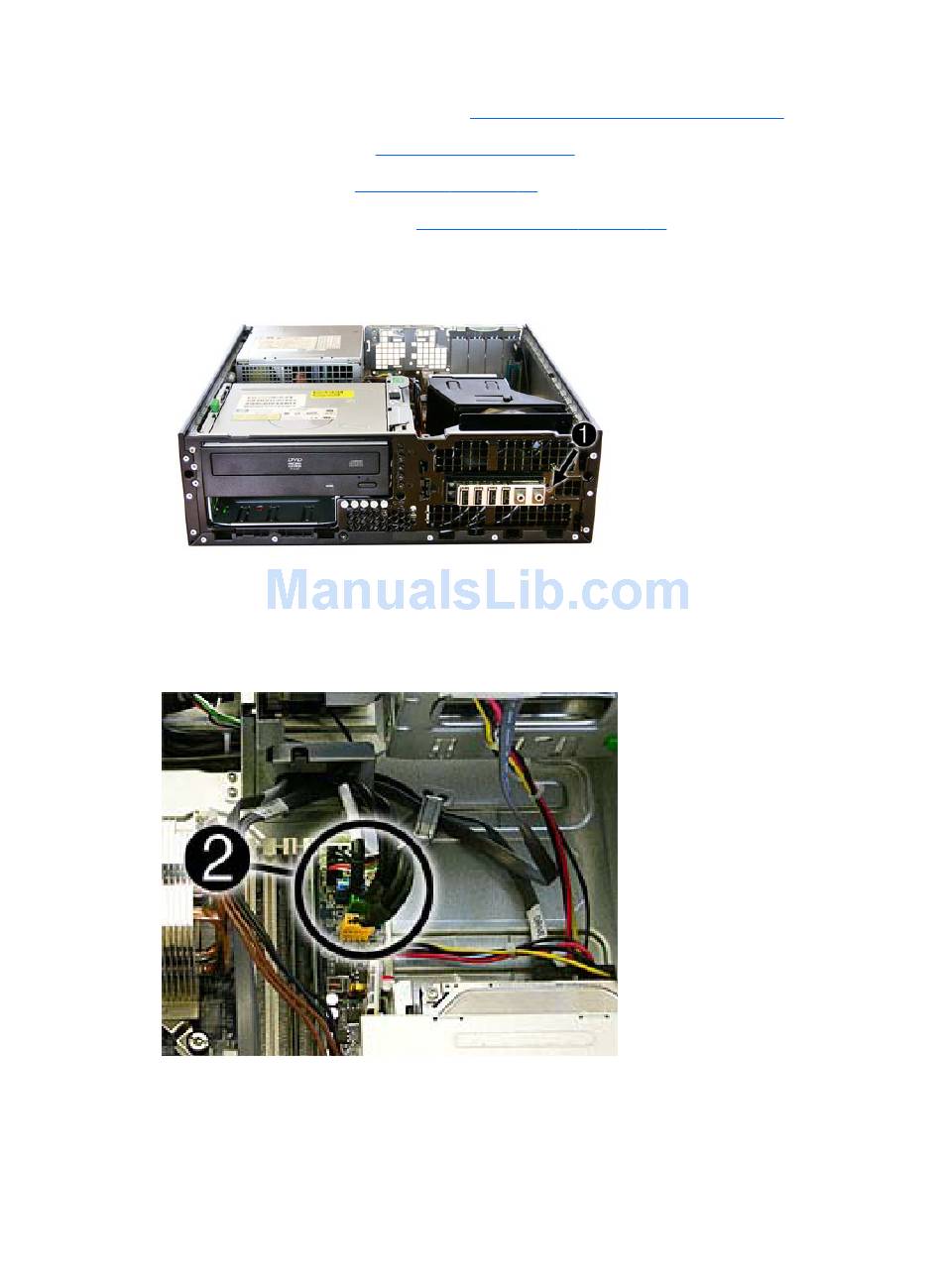

Figure 5-47
6. Rotate the drive cage to its upright position.
7. Disconnect the cables (2) from the system board.
Figure 5-48
