Front Fan Assembly

1. Prepare the computer for disassembly
2. Remove the access panel
3. Remove the front bezel
4. Remove the baffle
5. Disconnect the fan cable from the system board (CH FAN1, P9).

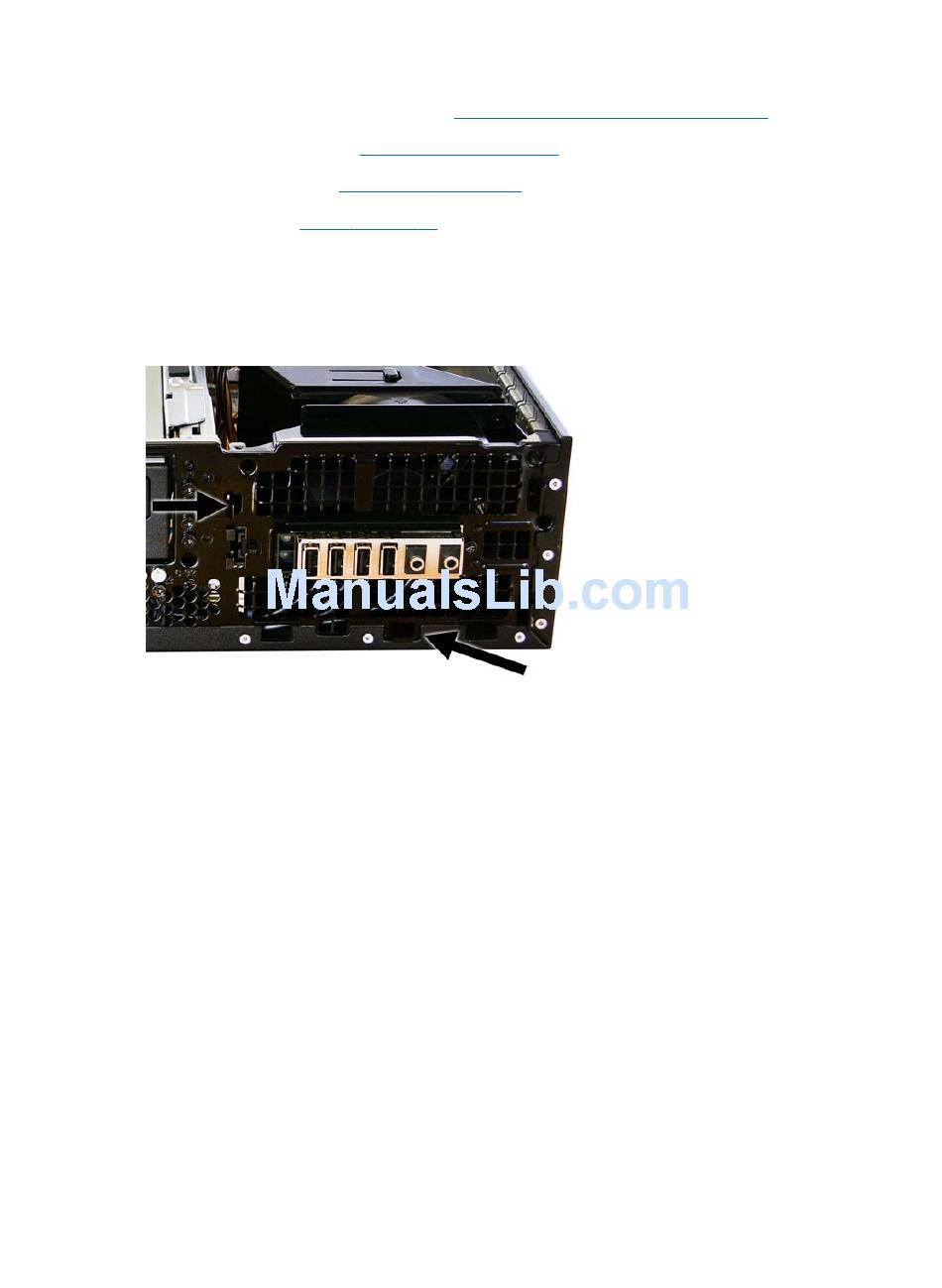

6. On the front of the computer, press the left and bottom tabs to disengage the fan assembly from
the chassis.
Figure 5-46
7. Lift the assembly out of the chassis.
To install the chassis fan, reverse the removal procedure. Be sure to orient the air flow into the unit.
68 Chapter 5 Removal and Replacement Procedures
(Access Panel on page
(Front Bezel on page
(Baffle on page 67).
Removing the chassis fan
(Preparation for Disassembly on page
32).
34).
32).
