4.

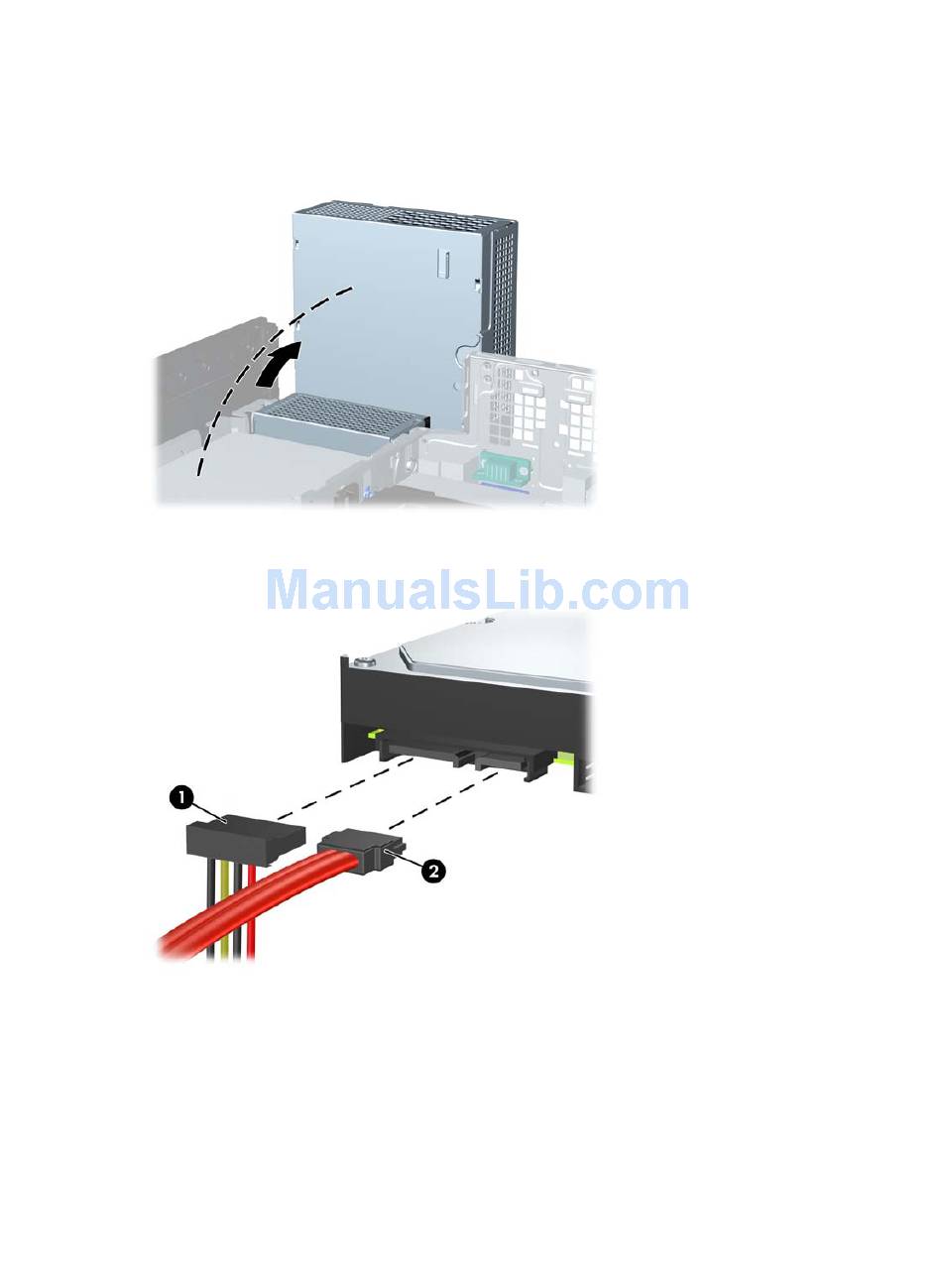

Rotate the power supply to its upright position. The hard drive is located beneath the power
supply.
Figure 5-32
5.
Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 5-33
60
Chapter 5 Removal and Replacement Procedures
Raising the Power Supply
Disconnecting the Hard Drive Power Cable and Data Cable
