Rear Panel Components

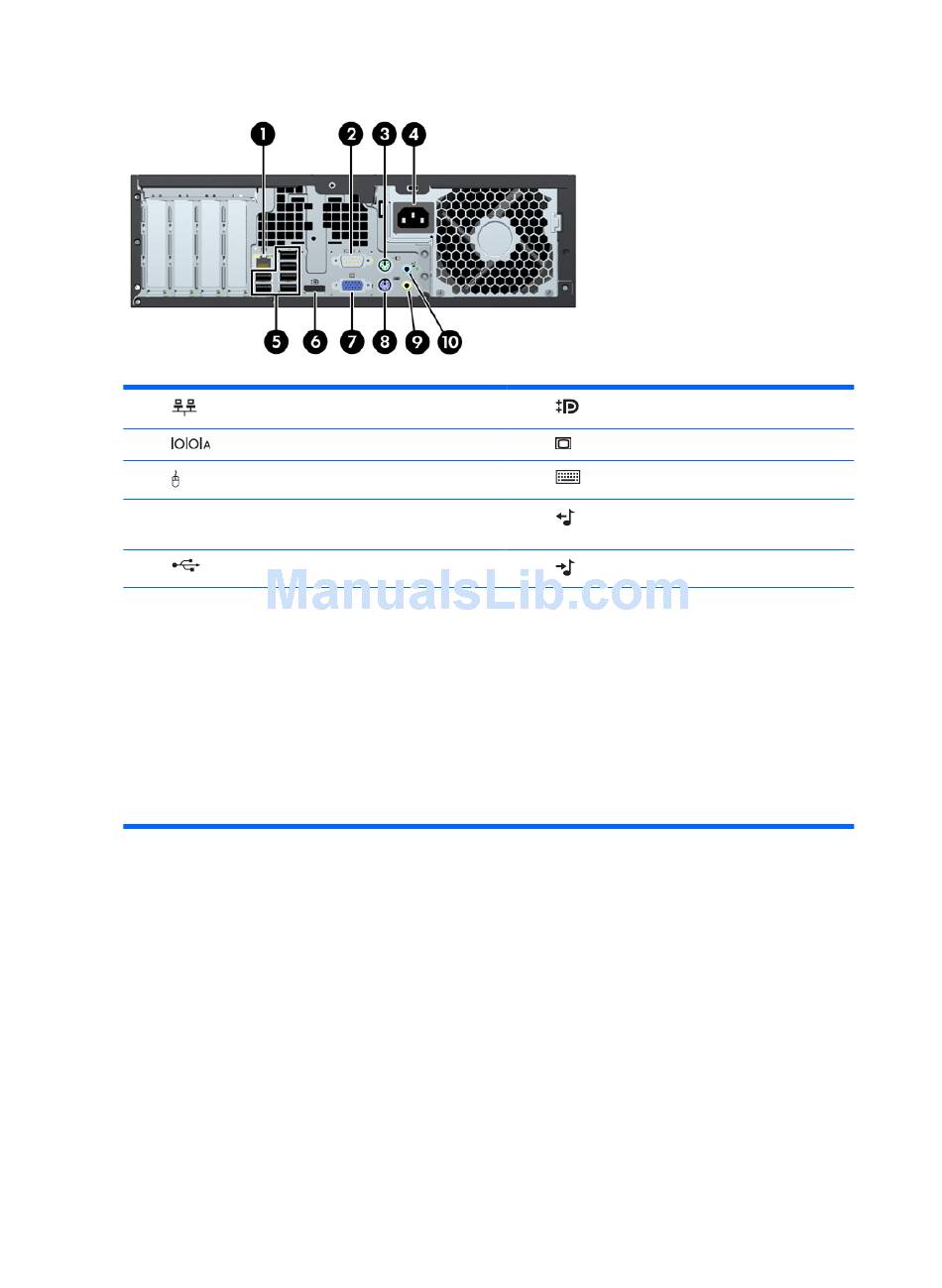

Figure 1-3 Rear Panel Components
Table 1-2 Rear Panel Components
1 RJ-45 Network Connector
2 Serial Connector
3 PS/2 Mouse Connector (green)*
4 Power Cord Connector
5 Universal Serial Bus (USB)
The Microsoft MultiPoint Server operating system does not support PS/2 mouse and keyboard connectors on the
HP MultiSeat ms6000 Desktop; a USB mouse and keyboard must be used instead.
NOTE: Arrangement and number of connectors may vary by model.
An optional second serial port and an optional parallel port are available from HP.
The monitor connectors on the system board are inactive when a graphics card is installed in the computer.
If a graphics card is installed into the PCI or PCI Express x1 slot, the connectors on the graphics card and the
system board may be used at the same time. Some settings may need to be changed in Computer Setup to use
both connectors. For information about setting the boot VGA controller, refer to the Computer Setup (F10) Utility
Guide.
6 DisplayPort Monitor Connector
7 VGA Monitor Connector
8 PS/2 Keyboard Connector (purple)*
9 Line-Out Connector for powered audio
devices (green)
10 Line-In Audio Connector (blue)
