8.
While holding the body of the assembly, pull the assembly away from the front of the chassis
while guiding the cables through the hole in the drive cage (3).

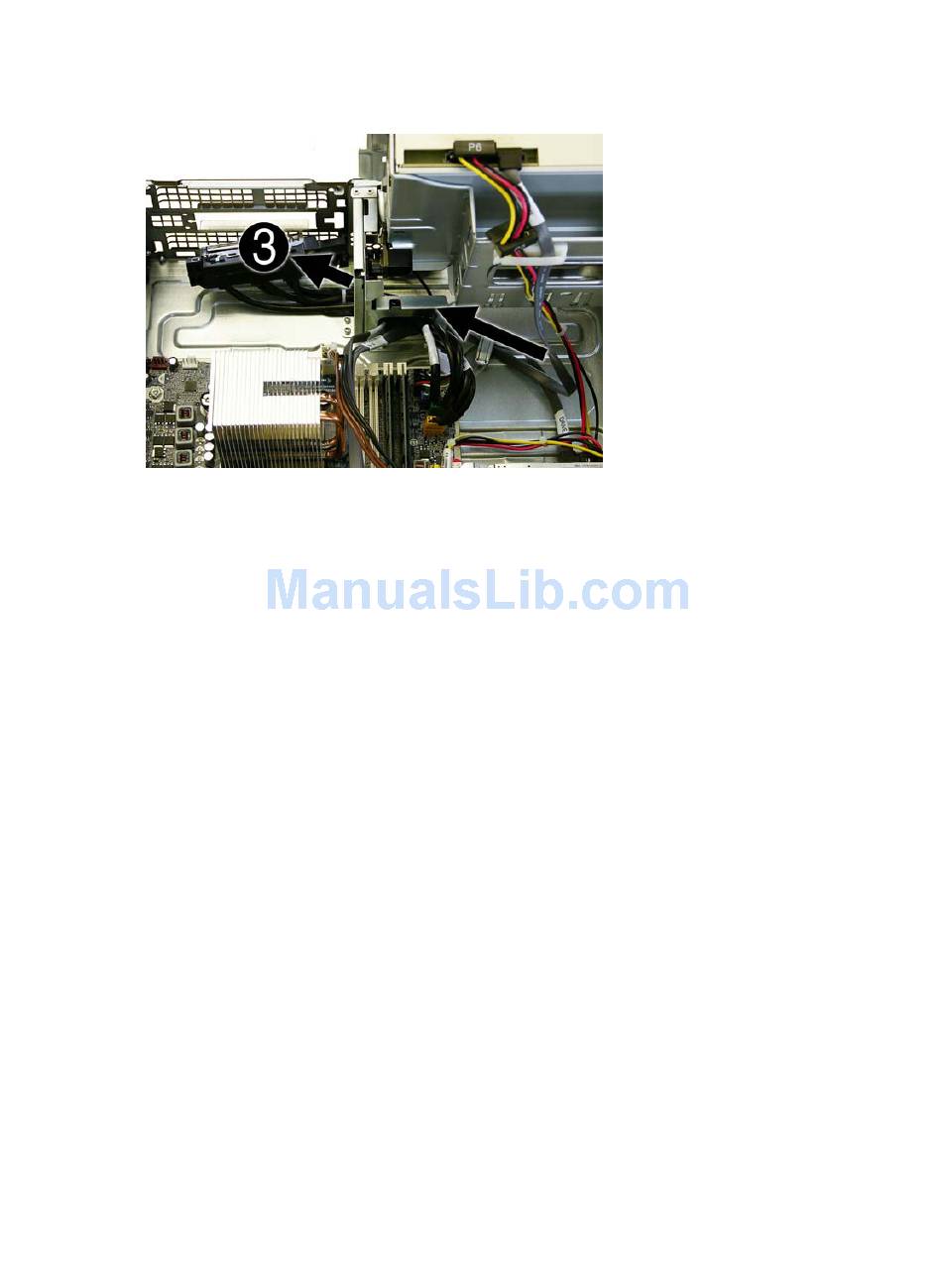

Figure 5-49
9.
Remove the assembly from the chassis.
To reinstall the front I/O/power supply assembly, reverse the removal procedure.
70
Chapter 5 Removal and Replacement Procedures
Guiding the wires through the drive cage
