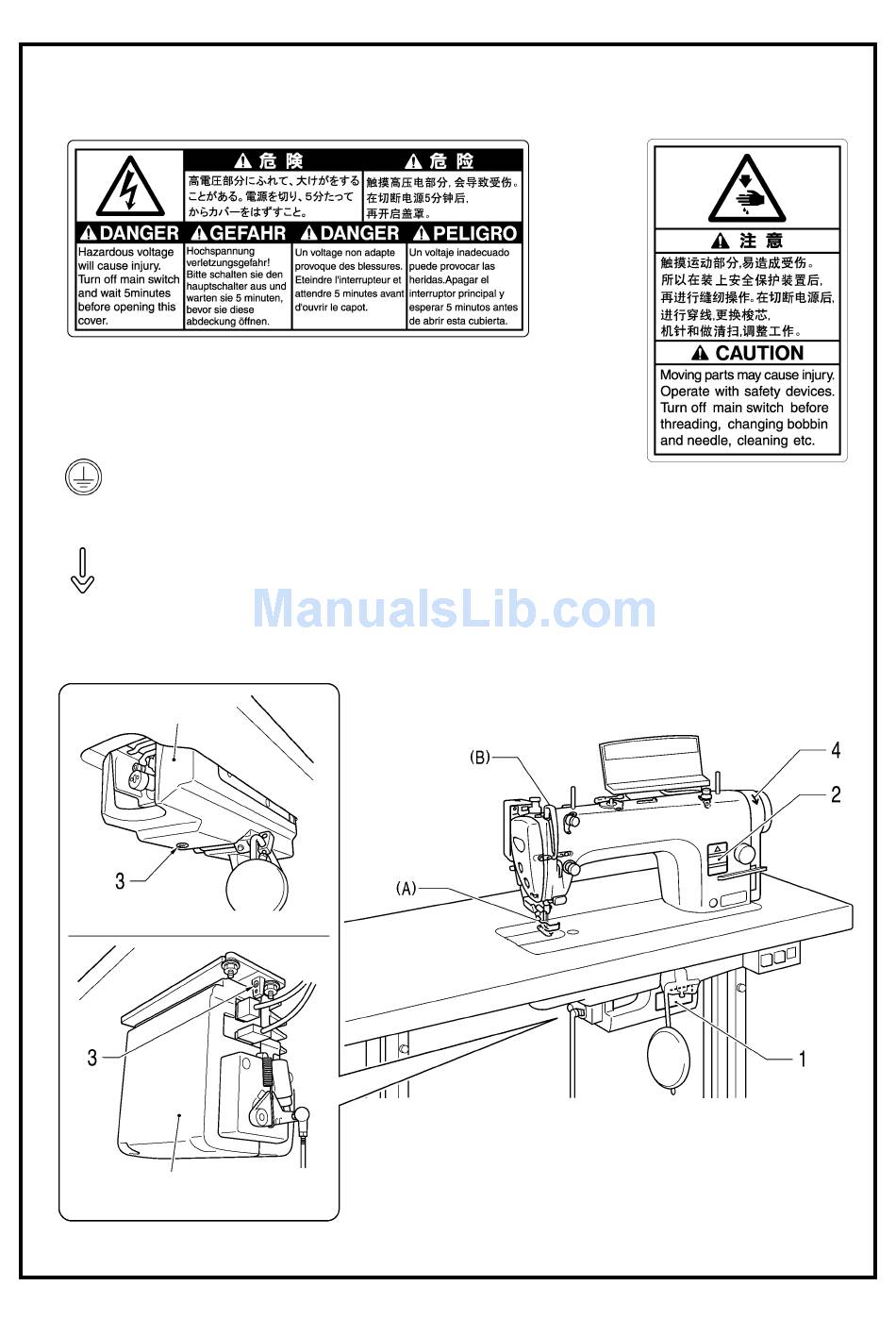

[3] Warning labels
The following warning labels appear on the sewing machine.
Please follow the instructions on the labels at all times when using the machine. If the labels have been removed or are
difficult to read, please contact your nearest Brother dealer.
1
3
Be sure to connect the ground. If the ground connection is not
secure, you run a high risk of receiving a serious electric shock,
and problems with correct operation may also occur.
4
Direction of operation
Oil pan
Control box
iv
S-7200B
2
Safety devices:
(A) Finger guard
(B) Thread take-up cover
3629M
