troubleshooting your hp visualization center sv6
architecture overview
Figure 1-1
without extra I/O devices for processes such as debugging, there is a
Digi-terminal server. To conveniently access each HP J6000, they are
connected to a LAN. The ProCurve switches pass the protocol to the
Gigabit networking. All of these components are shown in the diagram
below.

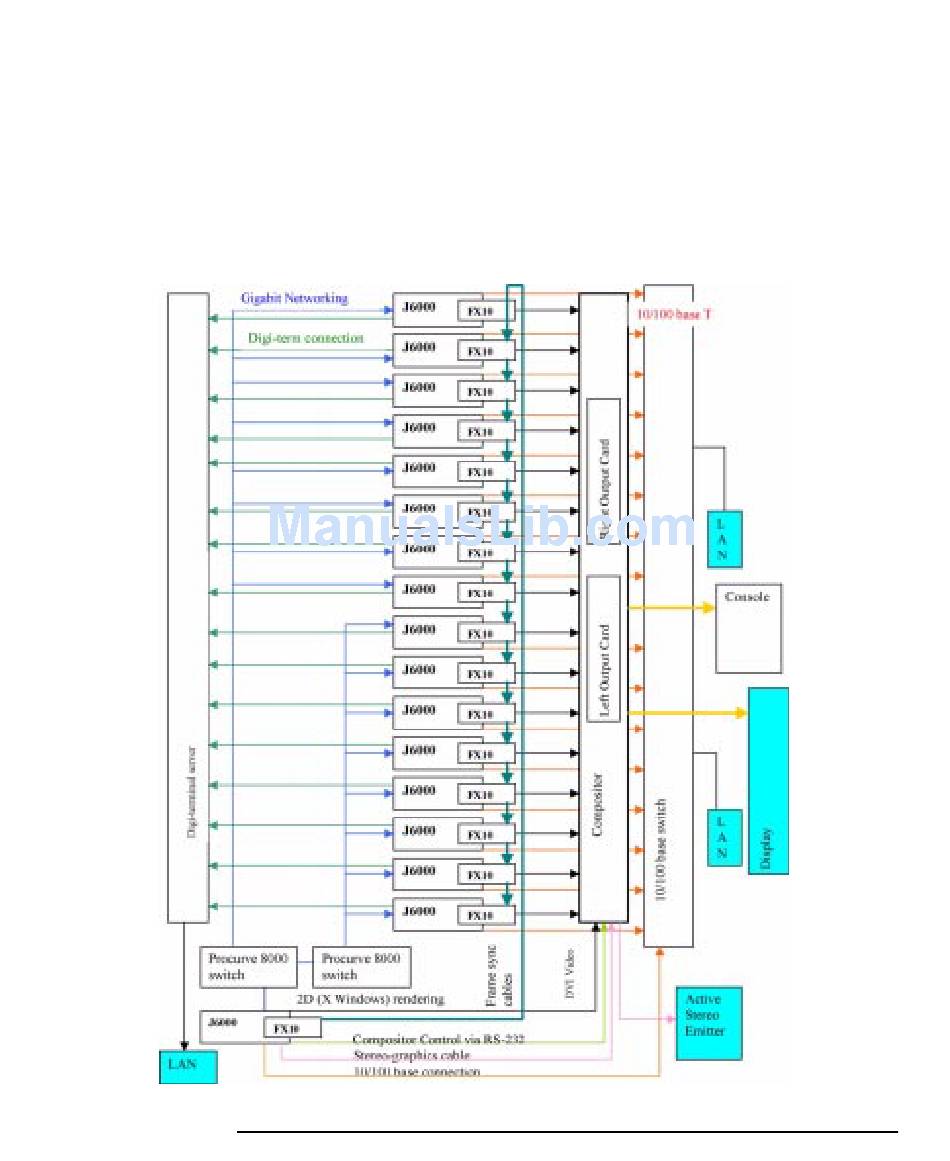

sv6 Architecture
