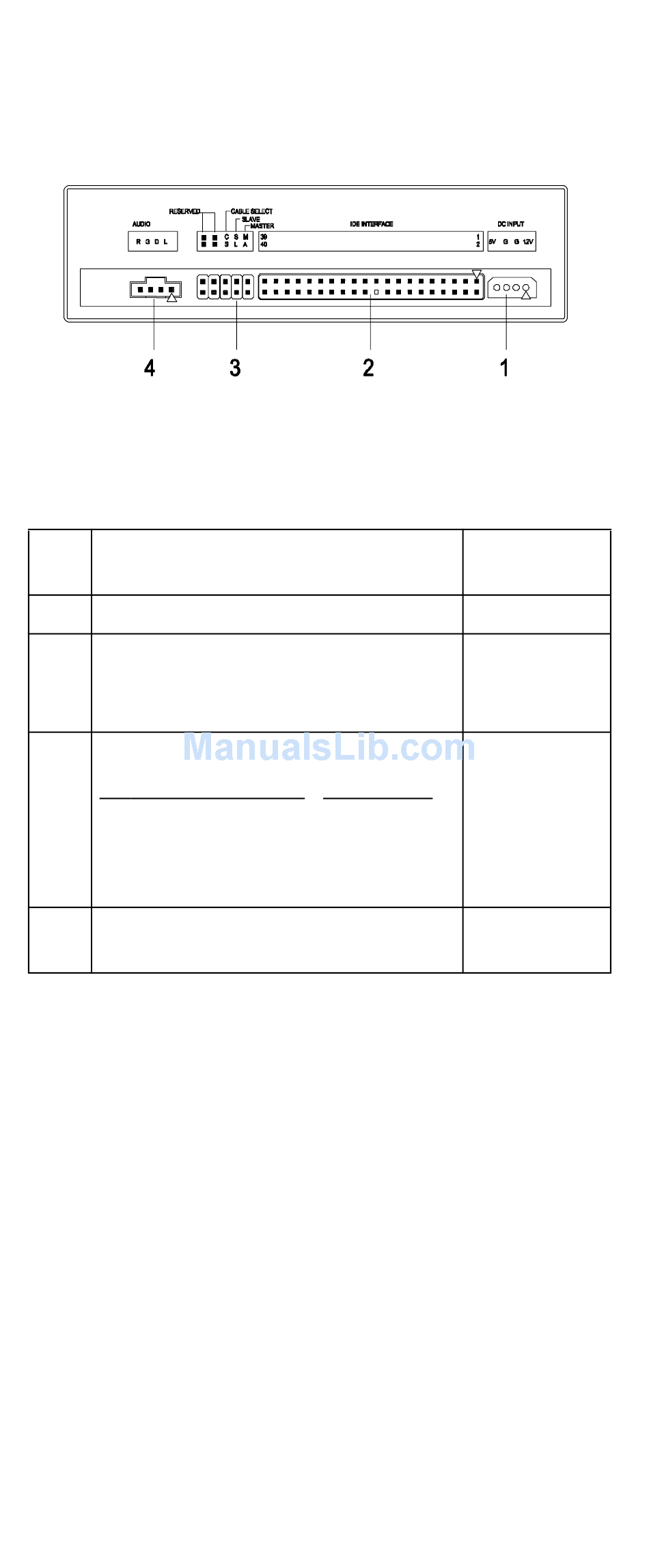

DVD-ROM Drive Rear Panel Connectors
and Jumpers
DVD-ROM Drive Rear Panel Connectors and
Jumpers
Item
1
Power connector
2
IDE Interface connector
3
Configuration jumper.
a
RD
RD CS SL MA Description
--
--
--
--
--
--
4
Audio Out
a.
RD -- Configuration jumper (RD indicates
Reserved)
Function
--
--
On
--
On
--
On
--
-- Cable select
Parts/Test Point Locations 133
Master
Slave.
Connect
to...
Power supply
System
board
CN12
--
Depended on
sound card
