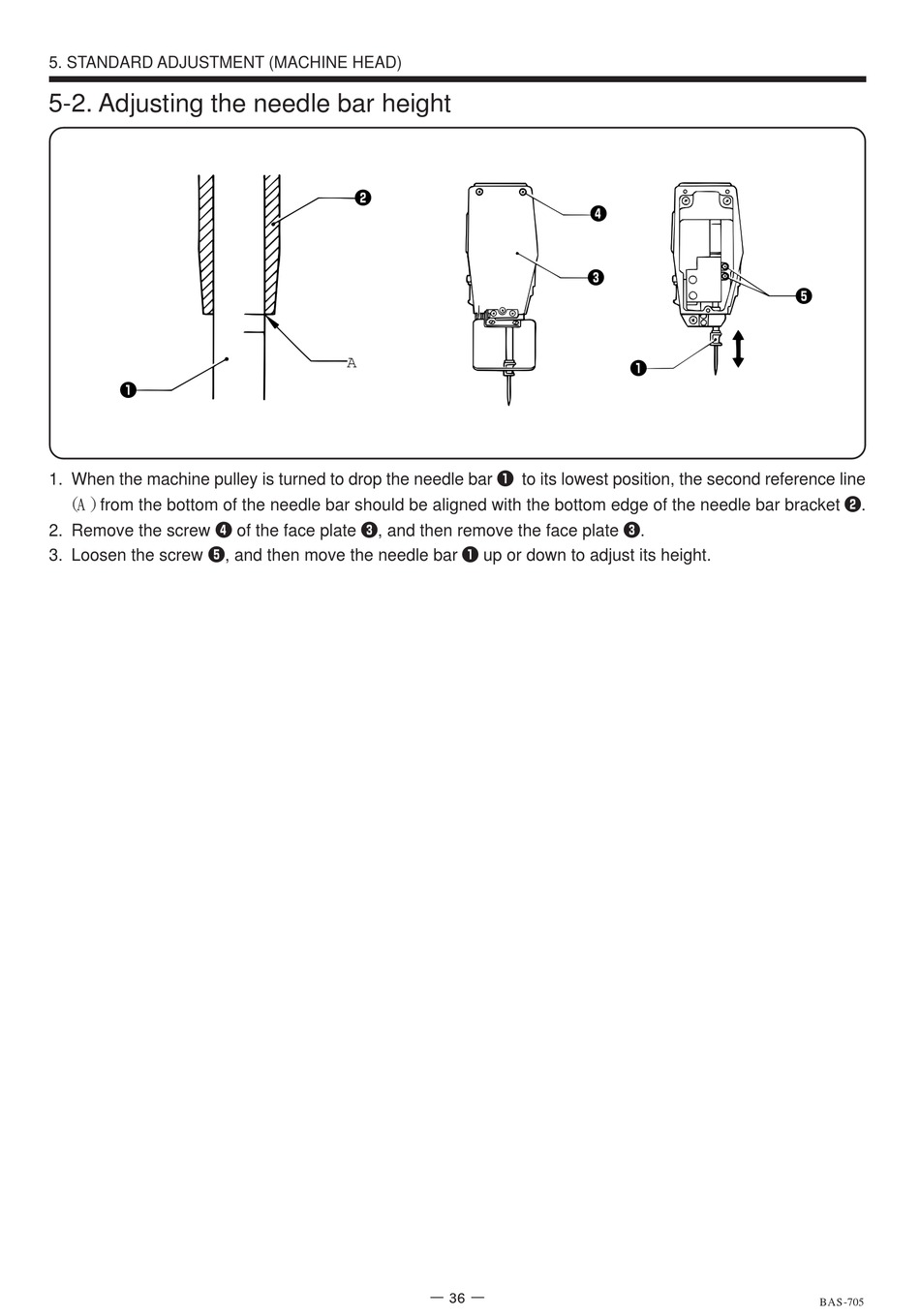

5. STANDARD ADJUSTMENT (MACHINE HEAD)

5-2. Adjusting the needle bar height

w
r
e
t
A
q
q
1. When the machine pulley is turned to drop the needle bar q to its lowest position, the second reference line
from the bottom of the needle bar should be aligned with the bottom edge of the needle bar bracket w.
2. Remove the screw r of the face plate e, and then remove the face plate e.
3. Loosen the screw t, and then move the needle bar q up or down to adjust its height.
