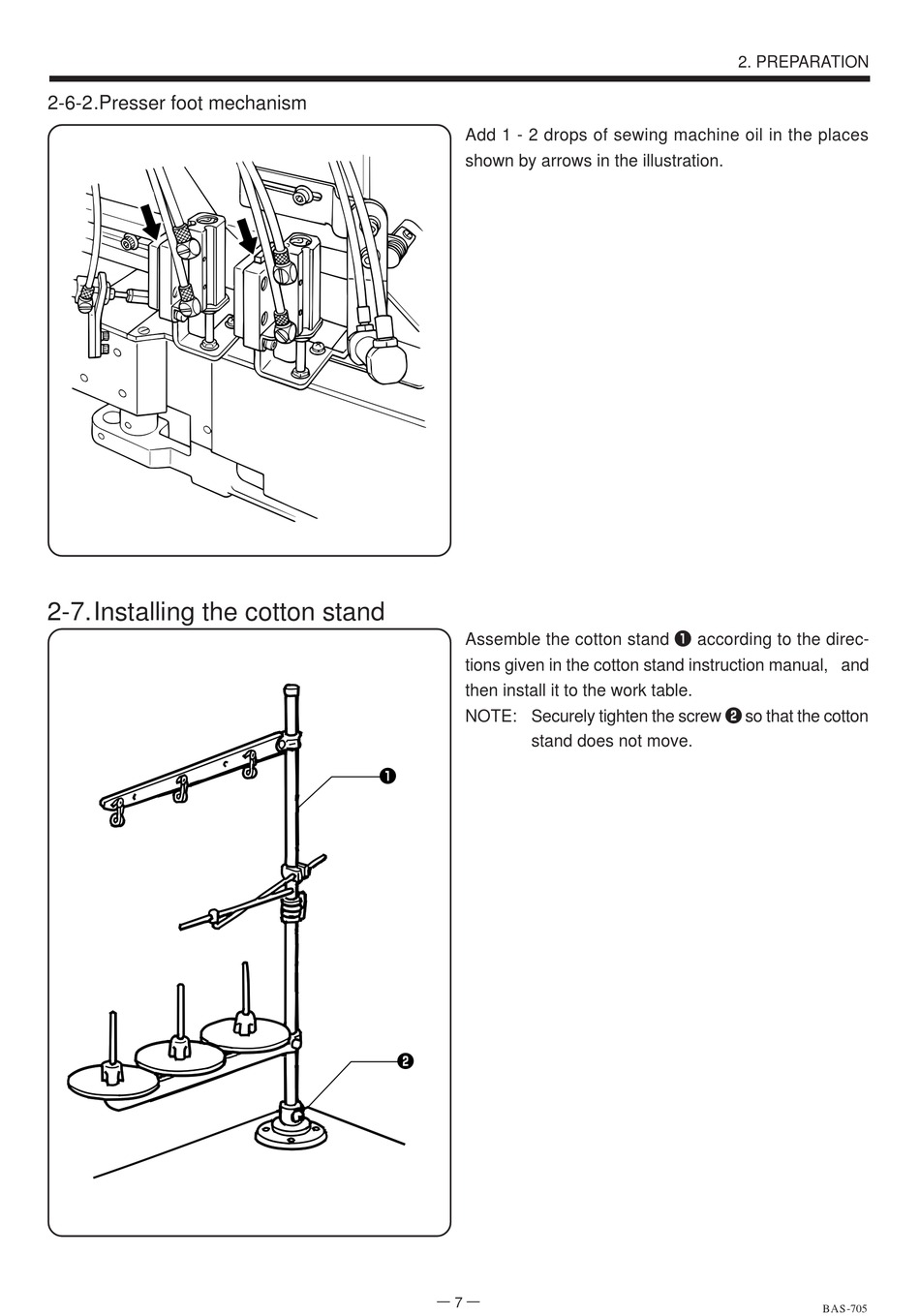

2-6-2.Presser foot mechanism

2-7.Installing the cotton stand

Add 1 - 2 drops of sewing machine oil in the places
shown by arrows in the illustration.
Assemble the cotton stand q according to the direc-
tions given in the cotton stand instruction manual, and
then install it to the work table.
NOTE: Securely tighten the screw w so that the cotton
stand does not move.
q
w
7
2. PREPARATION
BAS-705
