7.3 Replacing the Pick Roller
7.3
Replacing the Pick Roller
Replace the Pick roller following the procedure below.

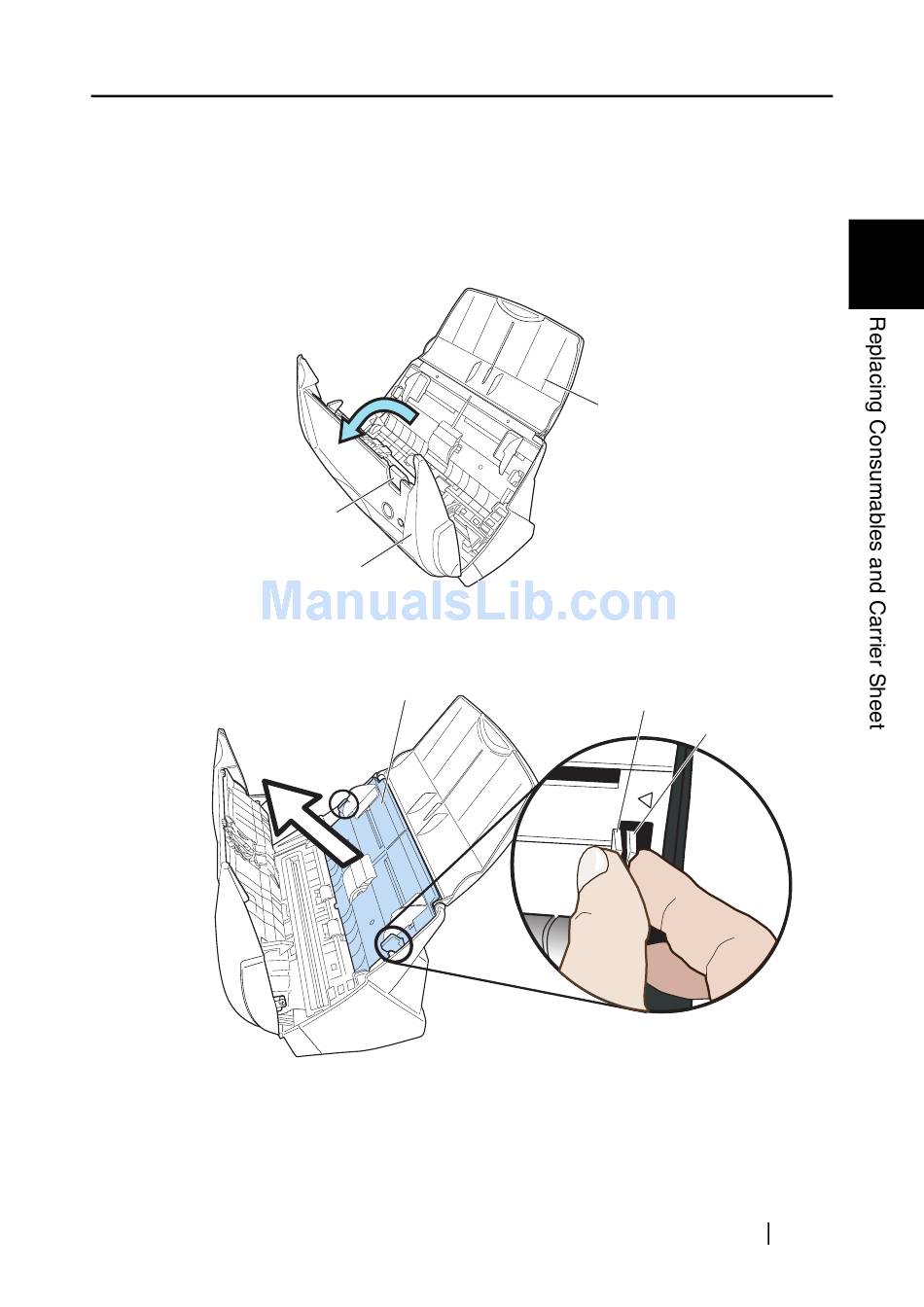

1. Remove the documents on the paper chute cover.
7
2. Open the ADF while pulling the cover open lever.
Paper chute cover
Cover open lever
ADF cover
3. Remove the sheet guide.
Pinch the knobs on the sheet guide and pull the sheet guide to remove it.
Sheet guide
Handle
Claw
147
ScanSnap fi-5110EOX2 Operator's Guide
