7.2
Replacing the Pad ASSY
Replace the Pad ASSY following the procedure below.
1. Remove the documents on the paper chute cover.

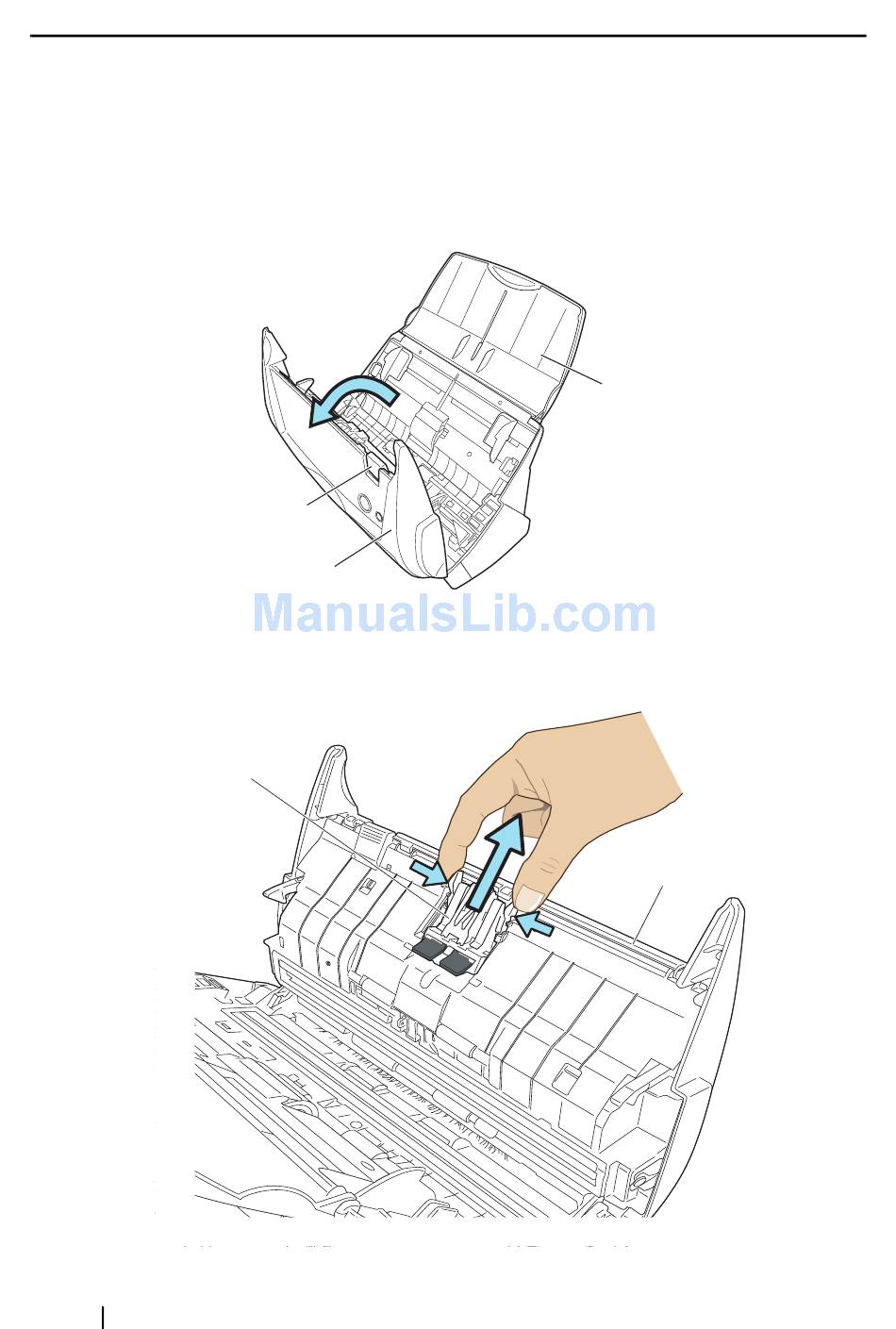

2. Open the ADF while pulling the cover open lever.
Cover open lever
3. Remove the Pad ASSY.
Pull out the Pad ASSY in the direction of the arrow while pinching both ends of the Pad
ASSY.
Pad ASSY
144
ADF cover
Paper chute cover
ADF cover
