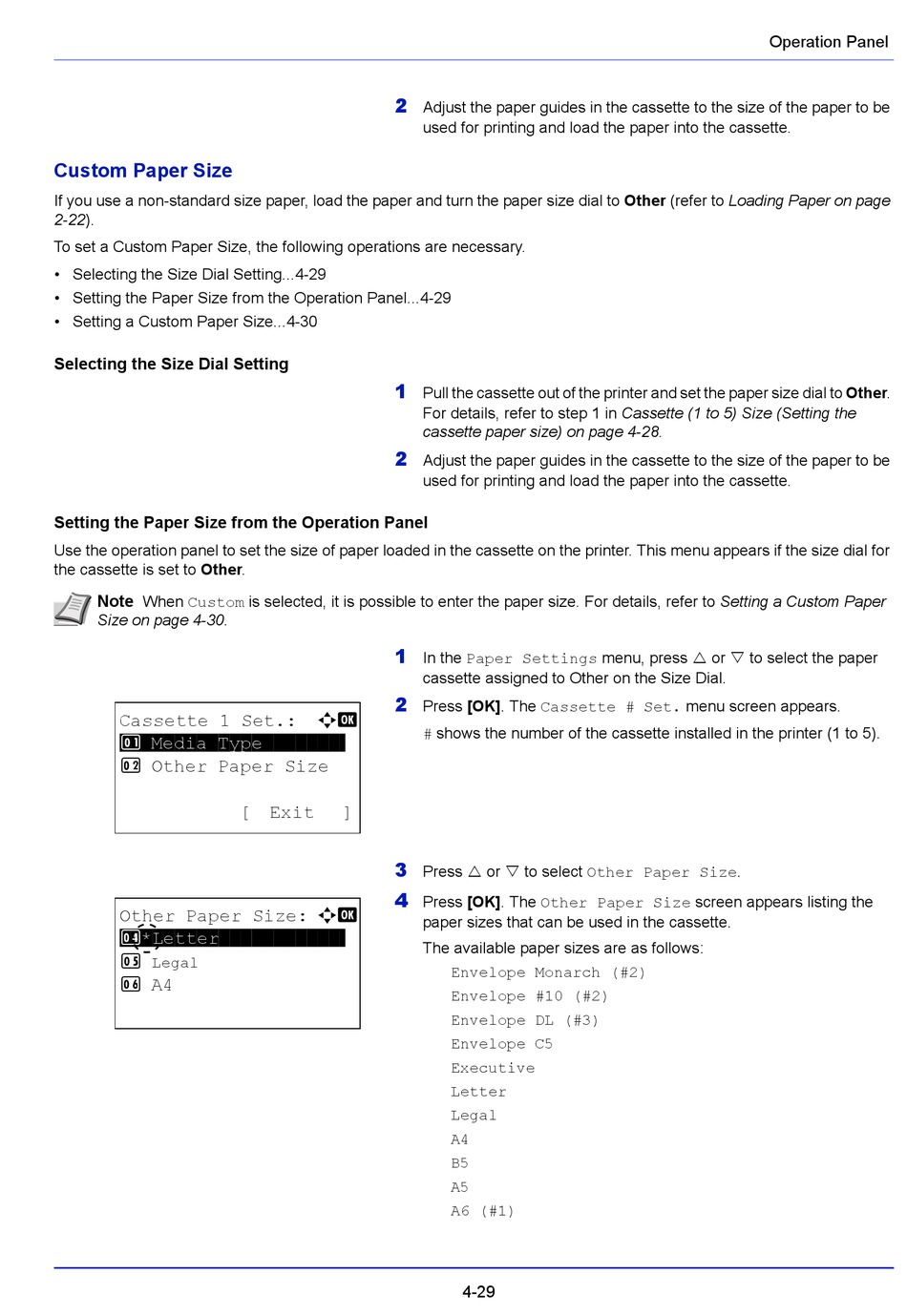

Kyocera FS-2100DN Operation Manual page 91

Custom Paper Size
If you use a non-standard size paper, load the paper and turn the paper size dial to Other (refer to Loading Paper on page
2-22).
To set a Custom Paper Size, the following operations are necessary.
• Selecting the Size Dial Setting...4-29
• Setting the Paper Size from the Operation Panel...4-29
• Setting a Custom Paper Size...4-30
Selecting the Size Dial Setting
Setting the Paper Size from the Operation Panel
Use the operation panel to set the size of paper loaded in the cassette on the printer. This menu appears if the size dial for
the cassette is set to Other.
Note When Custom is selected, it is possible to enter the paper size. For details, refer to Setting a Custom Paper
Size on page 4-30.
Cassette 1 Set.: a b
1 ********************- Media Type
2 Other Paper Size
Other Paper Size: a b
4 *Letter
********************-
5
Legal
6
A4
2
1
2
1
2
[ Exit ]
3
4
Adjust the paper guides in the cassette to the size of the paper to be
used for printing and load the paper into the cassette.
Pull the cassette out of the printer and set the paper size dial to Other.
For details, refer to step 1 in Cassette (1 to 5) Size (Setting the
cassette paper size) on page 4-28.
Adjust the paper guides in the cassette to the size of the paper to be
used for printing and load the paper into the cassette.
In the Paper Settings menu, press  or  to select the paper
cassette assigned to Other on the Size Dial.
Press [OK]. The Cassette # Set. menu screen appears.
# shows the number of the cassette installed in the printer (1 to 5).
Press  or  to select Other Paper Size.
Press [OK]. The Other Paper Size screen appears listing the
paper sizes that can be used in the cassette.
The available paper sizes are as follows:
Envelope Monarch (#2)
Envelope #10 (#2)
Envelope DL (#3)
Envelope C5
Executive
Letter
Legal
A4
B5
A5
A6 (#1)
4-29
