Printed Colors Are Inaccurate; Image Edges Are Blurred Or White Banding Occurs; Documents Are Printed Crooked - Canon imagePROGRAF iPF610 User Manual

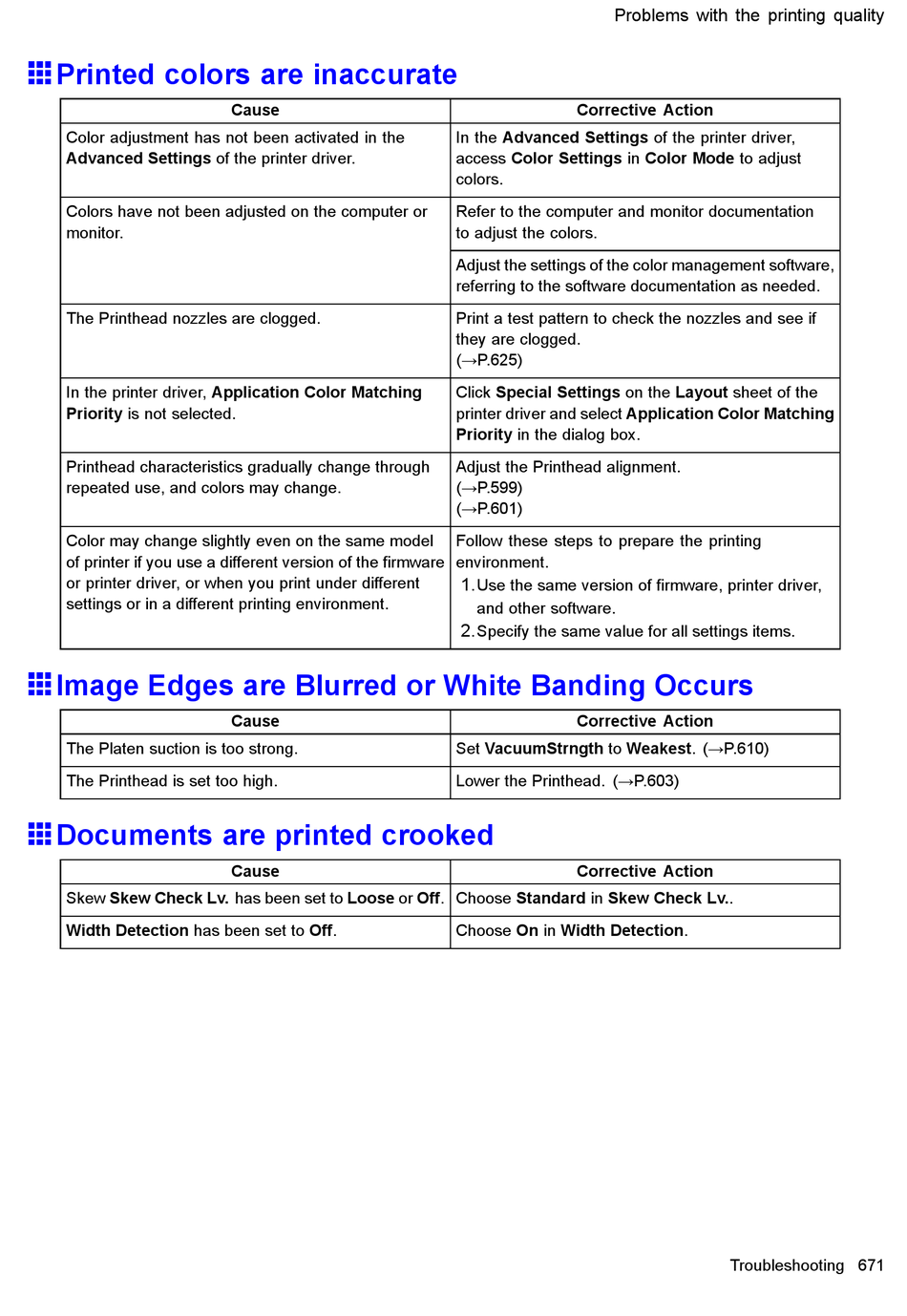

Printed colors are inaccurate

Color adjustment has not been activated in the
Advanced Settings of the printer driver.
Colors have not been adjusted on the computer or
monitor.
The Printhead nozzles are clogged.
In the printer driver, Application Color Matching
Priority is not selected.
Printhead characteristics gradually change through
repeated use, and colors may change.
Color may change slightly even on the same model
of printer if you use a different version of the rmware
or printer driver, or when you print under different
settings or in a different printing environment.

Image Edges are Blurred or White Banding Occurs

The Platen suction is too strong.
The Printhead is set too high.

Documents are printed crooked

Skew Skew Check Lv. has been set to Loose or Off. Choose Standard in Skew Check Lv..
Width Detection has been set to Off.
Cause
Cause
Cause
Problems with the printing quality
Corrective Action
In the Advanced Settings of the printer driver,
access Color Settings in Color Mode to adjust
colors.
Refer to the computer and monitor documentation
to adjust the colors.
Adjust the settings of the color management software,
referring to the software documentation as needed.
Print a test pattern to check the nozzles and see if
they are clogged.
(→P.625)
Click Special Settings on the Layout sheet of the
printer driver and select Application Color Matching
Priority in the dialog box.
Adjust the Printhead alignment.
(→P.599)
(→P.601)
Follow these steps to prepare the printing
environment.
1.
Use the same version of rmware, printer driver,
and other software.
2.
Specify the same value for all settings items.
Corrective Action
Set VacuumStrngth to Weakest. (→P.610)
Lower the Printhead. (→P.603)
Corrective Action
Choose On in Width Detection.
Troubleshooting 671
