Adjusting the Printhead
2.

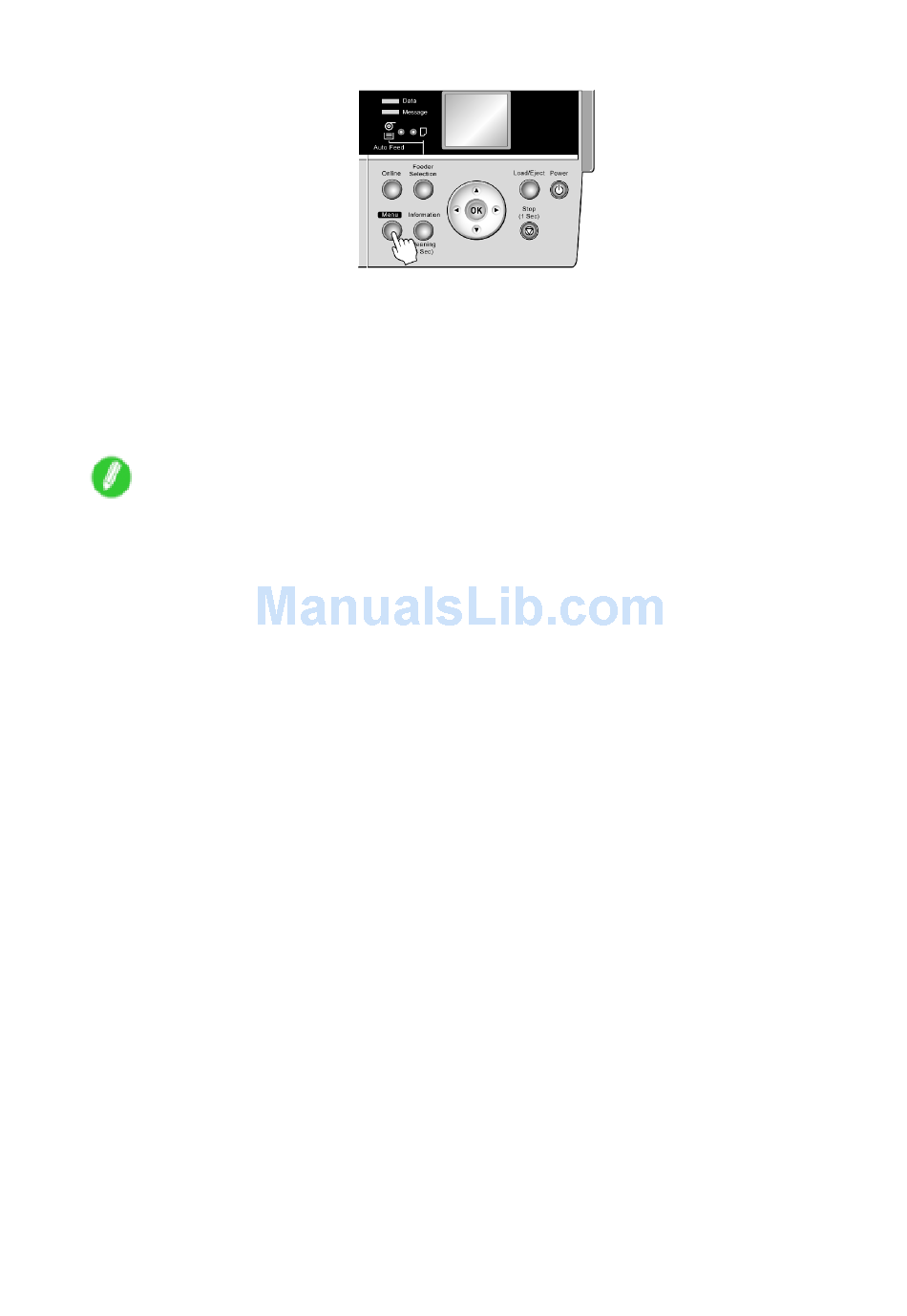

Press the Menu button to display MAIN MENU.
3.
Press ▲ or ▼ to select Adjust Printer, and then press the ► button.
4.
Press ▲ or ▼ to select Auto Head Adj., and then press the ► button.
5.
Press ▲ or ▼ to select Advanced Adj., and then press the ► button.
6.
Press ▲ or ▼ to select Yes, and then press the OK button.
A test pattern is printed for printhead adjustment.
After reading the pattern, the printer automatically adjusts the Printhead alignment.
Note
•
If paper is fed automatically and no roll is loaded, select the media source and click the OK button.
Additionally, when Cassette is selected as the paper source, choose the type and size of paper.
600 Maintenance
