9. Remove a pair of device slides from the drive cage.
10. Attach the device slides to the hard drive. This is a tool-less operation. Insert pins
on device slides into mounting holes on hard drive. Press firmly to secure device
slides to hard drive. Ensure that the metal tabs on the device slides are facing the
front of the hard drive and facing towards each other, as shown in the figure.
30

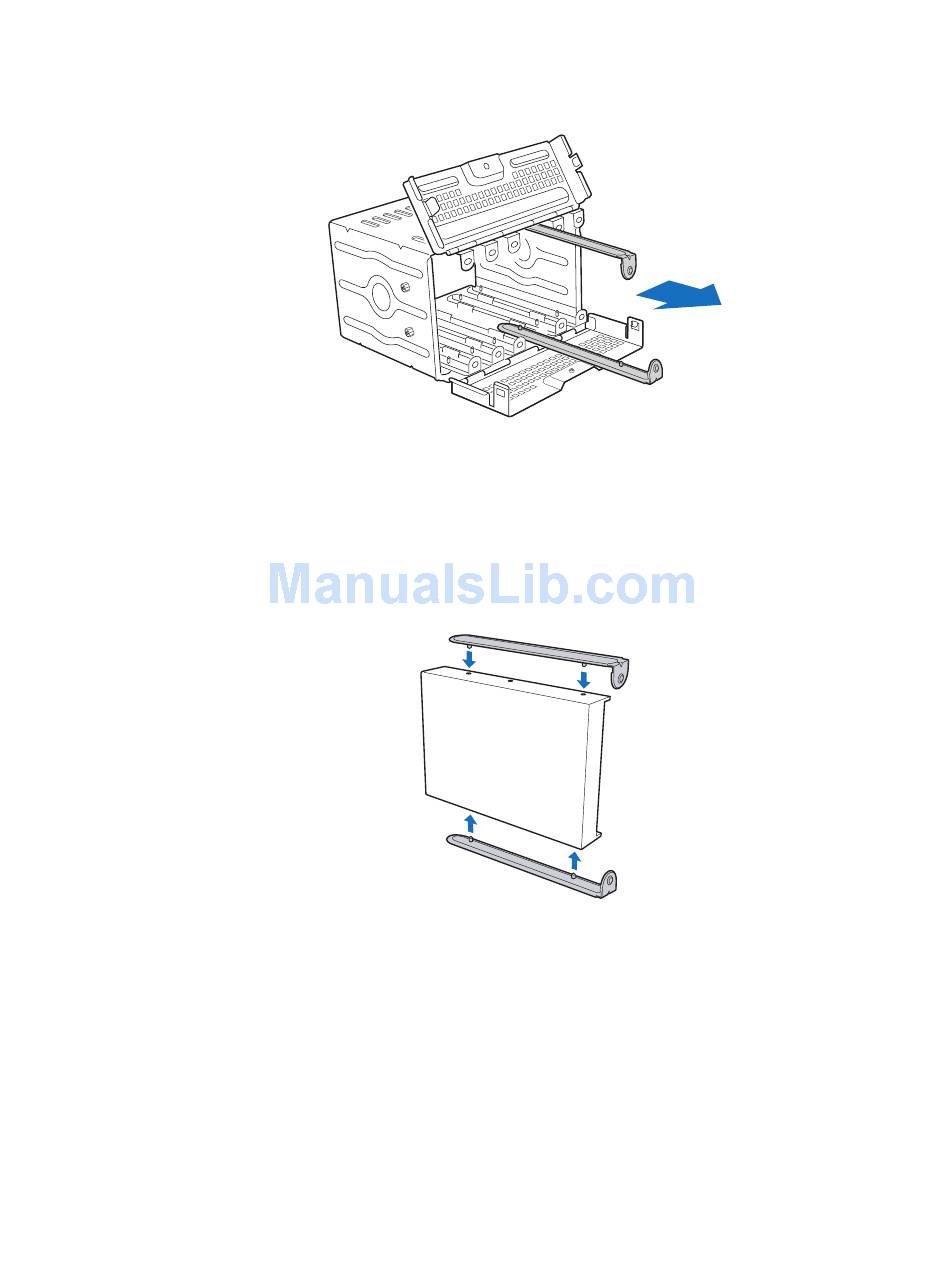

Figure 19. Removing Slides from Drive Cage
Figure 20. Attaching Device Slides to Hard Drive
AF000581
AF000582
Intel® Server System SC5400RA User's Guide
