6. Place screws in two of the three holes from inside the intermediate member and loosely tighten
with a washer and lock nut. The correct alignment of the screw, washer, lock nut, bracket, and
slide assembly is shown in Figure 9.

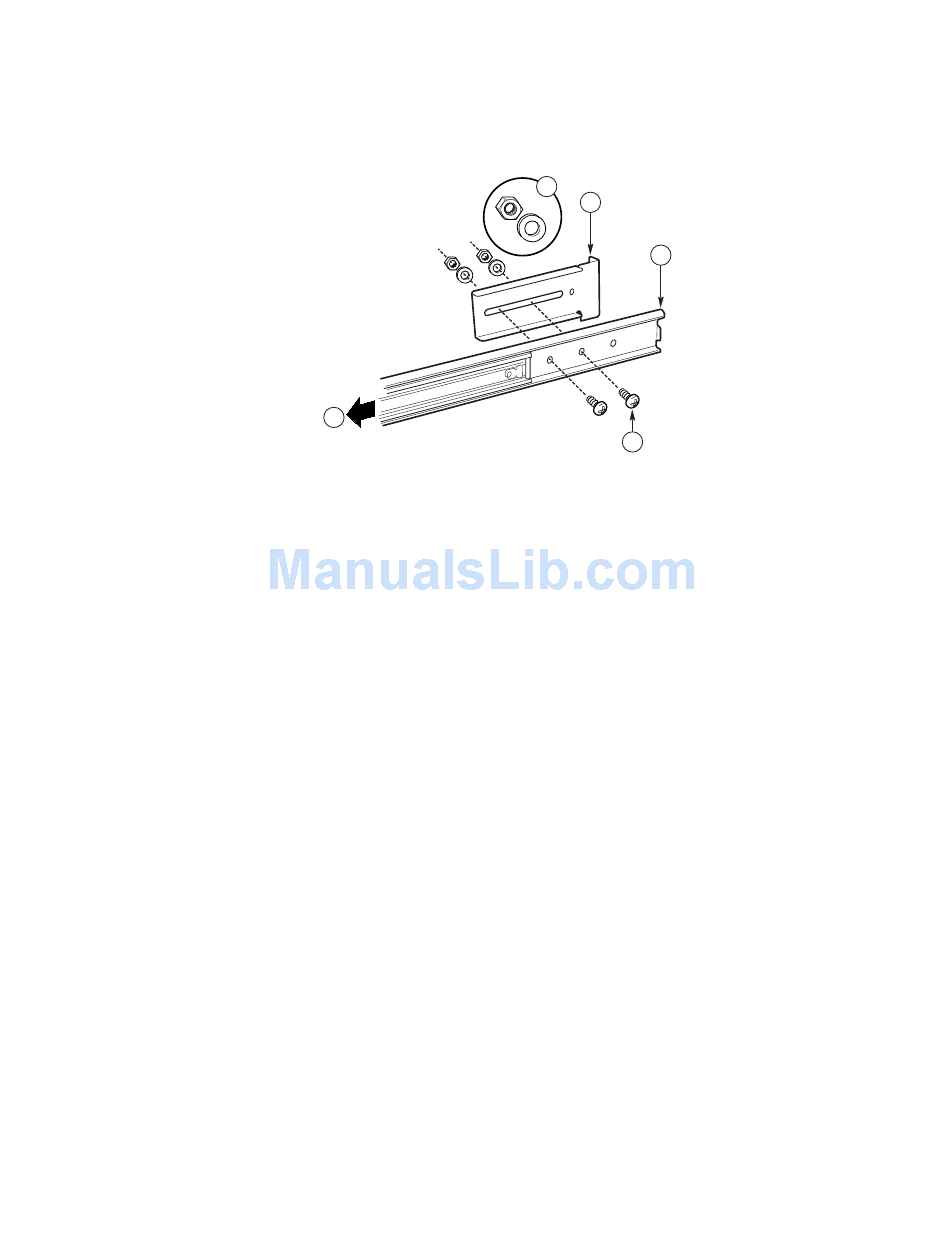

Figure 9. Correct Alignment of the Screw, Washer, Nut, Bracket,
A. Extended slide rail
assembly
B. Extension direction
C. Rear left bracket
D. Screw
E. Washer and lock-nut
7. Slide the bracket back and forth. Make sure that the screws are loose enough to allow the
bracket to move freely.
8. Repeat steps 2 through 7 for the other slide assembly.
B
and Slide Assembly at the Rear
The slide rail assembly extended so that the screw hole in the outer member
is centered in the rectangular hole of the intermediate member.
The intermediate member is extended in this direction.
Rear left bracket labeled FR/RL.
One of two screws used to secure the bracket to the slide rail assembly.
Notice what screw holes are used on the outer member.
Correct orientation of the washer and lock-nut for each screw.
E
C
A
D
OMO9985
SRKA4 /ISP4400 Server System 17
