Install Handles

The handles attach to the chassis. As an option, you can also attach the handles to the rack.
1. Make sure that you pull the chassis out of the rack until the safety latch snaps into place.
2. As shown in Figure 11, align the inside top and bottom handles with the top and bottom holes
of the chassis.
3. Place screws in the top and bottom holes on the inside edge of the handle. Tighten both screws
to secure the handle to the chassis.
4. If you want to secure the handle to the vertical rack, place screws in the top and bottom holes
on the outside edge of the handle. Tighten both screws.

Attach the Front Bezel to the Chassis

The front bezel attaches to and protects the front of the server.
1. Make sure that you pull the chassis out of the rack until the safety latch snaps into place.
2. Place the front bezel over the front of the chassis. The edge of the bezel should line up with
the front edges of the chassis. The ball studs on the back of the bezel fit easily into holes on
the front of the server.
3. Gently push the front bezel into the chassis. The front bezel snaps into place.

Removing the Server from the Rack

1. Pull the server out until the safety latches on each side lock into place.
2. Make sure that a hand-truck or other mechanical assist unit is placed directly under the server.
3. Depress the safety latches on both sides and simultaneously pull the chassis out of the slide
assembly.
4. Pull the hand-truck or other mechanical assist unit out along with the chassis.

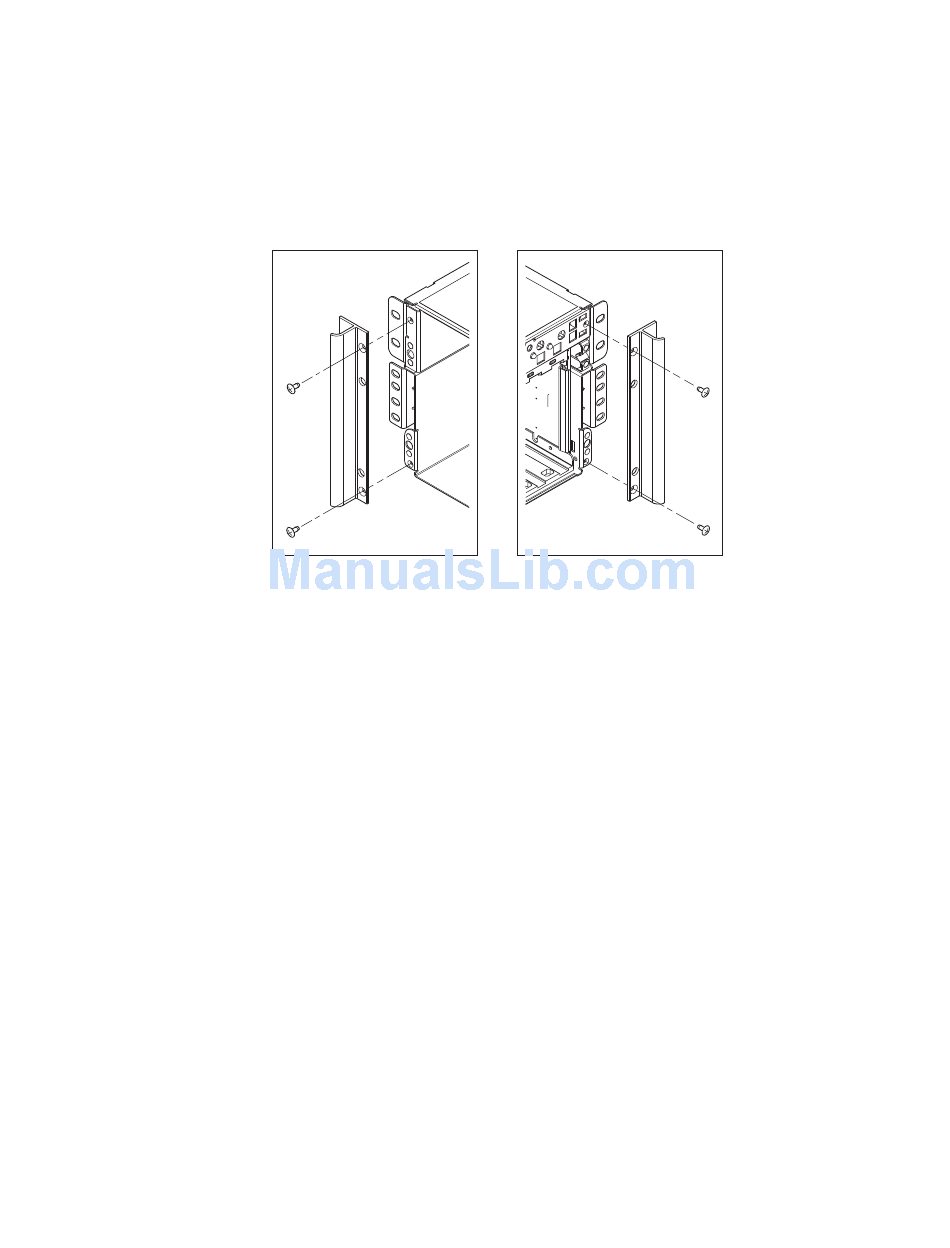

Figure 11. Handles Aligned with Chassis
OM09999
SRKA4 /ISP4400 Server System 19
