Prepare the Slide Assemblies

1. Remove the slide assemblies from the kit.
2. Orient the slide assembly so that the inside of the inner member is facing up and the safety
latch is visible.
3. Fully extend the telescoping slide assembly until the intermediate member hits the safety latch
on the inner member.
4. Depress the safety latch with your thumb. Pull the inner member away from the intermediate
member until the inner member separates from the rest of the slide assembly.
5. Set the intermediate and outer members of the slide assembly aside. You will need them in a
later on.

Prepare the Server

1. Remove six #10-32 x 1/4 long pan-head screws from the kit.
2. Orient the first inner member so that the latch points towards the rear of the chassis. The inner
member is noted by "A" in Figure 5. Notice that the safety latch is pointed towards the rear of
the chassis.
3. Align the three holes in the inner member with the three holes in the chassis.
4. Insert and tighten a screw through each hole in the bar and chassis wall.
5. Repeat steps 2 through 4 for the other inner member and other side of the chassis.
A

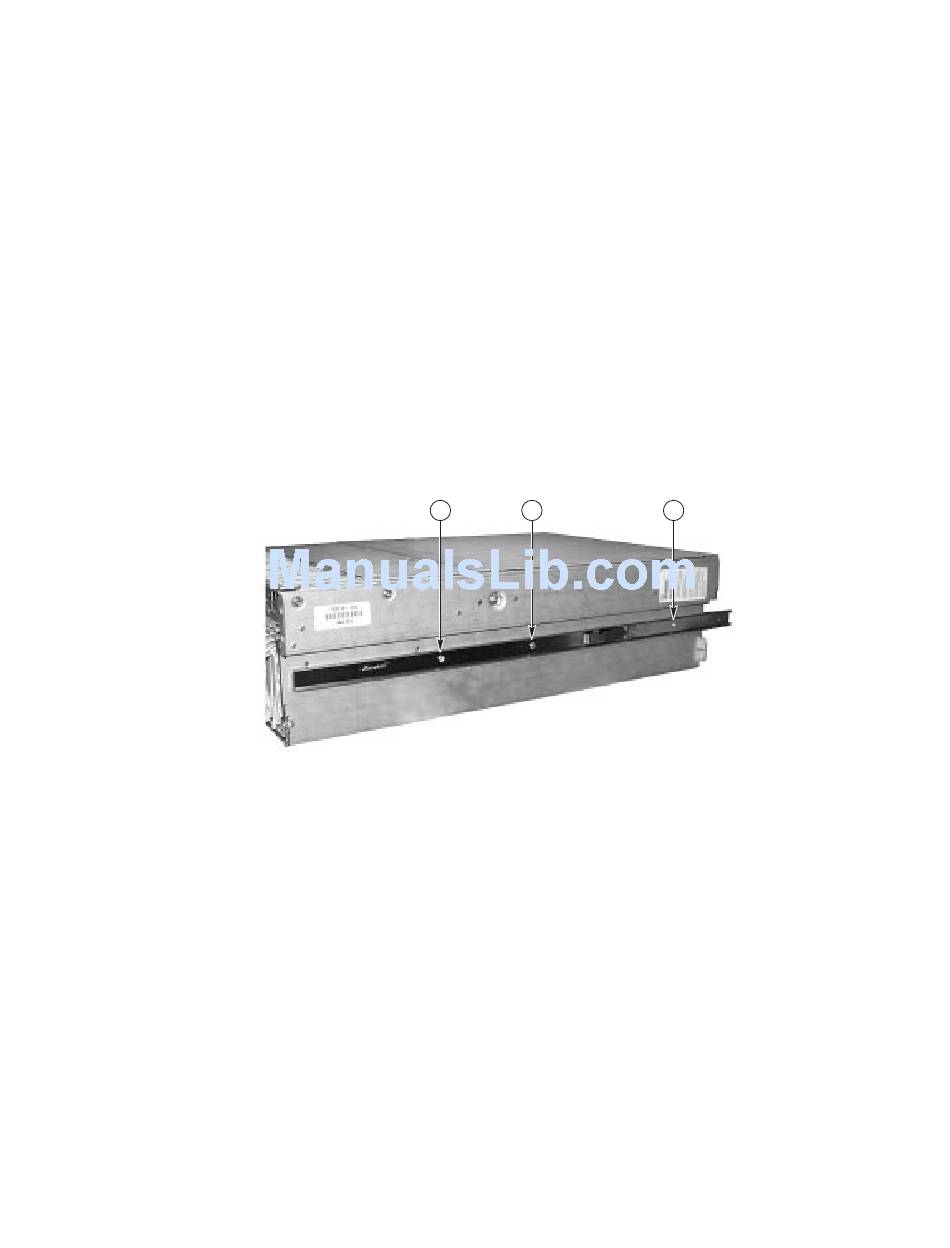

Figure 5. Inner Member Attached to Chassis
A A
OM09986
SRKA4 /ISP4400 Server System 13
