The inner member has a safety latch shown in Figure 4. Without fully extending the slide
assembly, you can move the server in and out from the rack. When the slide assembly is fully
extended, this latch locks the assembly in the fully extended position. When you depress the latch,
you can release the inner member from the rest of the slide assembly.
A.
Inner member
B.
Safety latch
C. Intermediate member
WARNING
A
NCHOR THE EQUIPMENT RACK
to an unmovable support to prevent it from falling over when the server
is pulled to the front on the slide assembly. The anchors must be able to
withstand a force of up to 113 kg (250 lbs). You must also consider the
weight of any other device installed in the rack.
CAUTION
After completing the rack mount installation, do not depress the safety latch
unless you are removing the chassis from the rack. The purpose of the
safety latch is to prevent the server from unexpectedly sliding out of the
rack.
12 Quick Start Guide
C
B

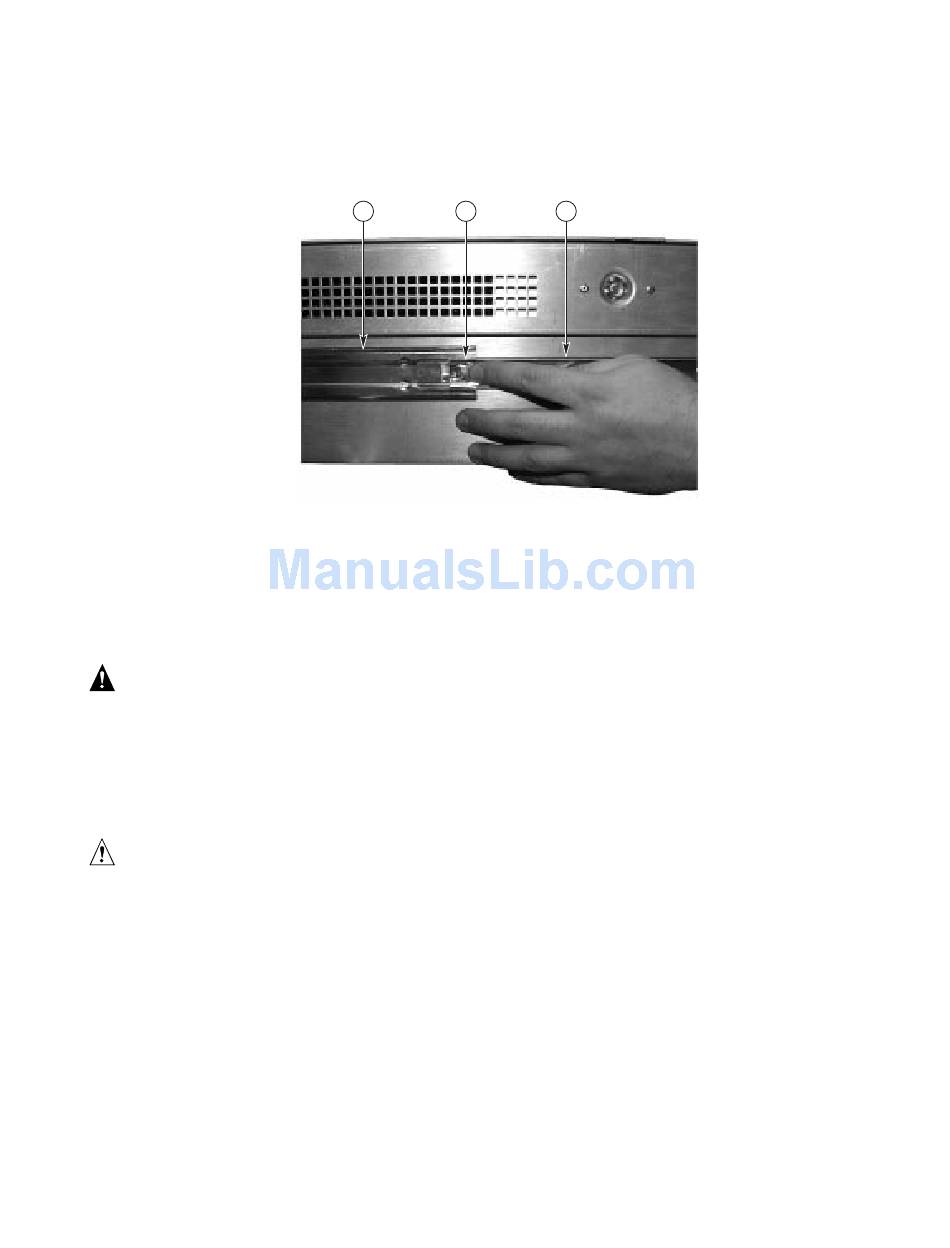

Figure 4. Safety Latch
The inner member is the narrowest piece of the slide assembly.
The inner member is attached to the chassis.
The safety latch is located on the inner member.
The intermediate member slides into the inner member.
: You must anchor the equipment rack
A
OM09983
