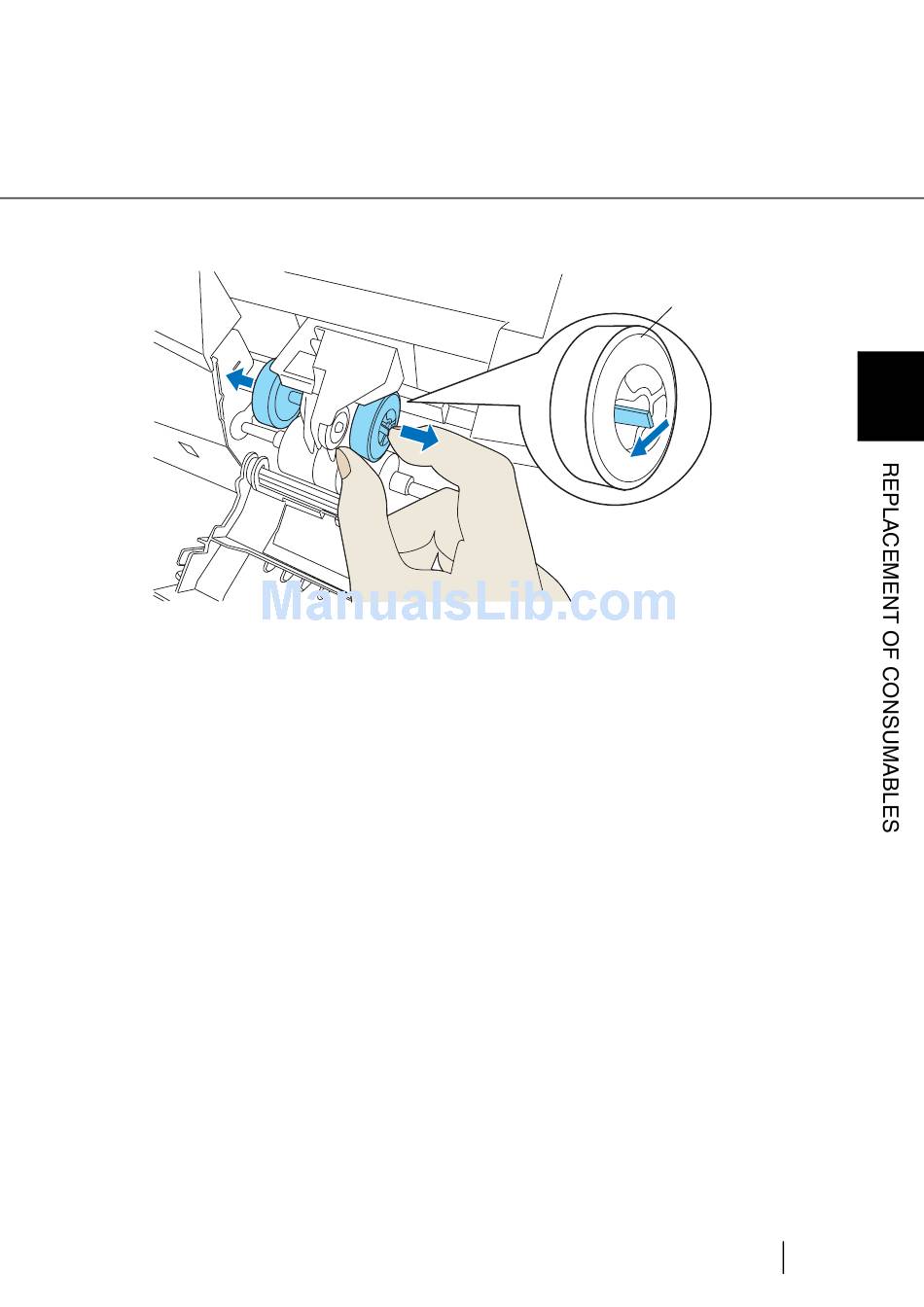

3. While pulling up the tab away from the shaft, slide the Pick rollers (2
rollers, left and right) from the shaft for removal.
4. Install the new Pick rollers (2 rollers, left and right) in the reversed order
of the detachment.
Put the roller correctly on the shaft, until it is locked in place.
5. Close the roller cover.
6. Close the ADF cover.
Refer to "2.3 Opening and Closing ADF" on page 12
7. Reset the Pick roller counter
Refer to "5.2 How to check and reset the Consumables Counter" on page 117
r
5.4 Replacing the Pick Roller
Pick Roller
123
5
