As the handset cannot distinguish between a Desktop Charger and Charging Rack, it is
recommended that the alert signal is silenced when placed in a rack. It can be set in the
"In charger" profile, see
2.3

Icons and Text in the Display

The icons and text in the display indicate functions and settings to which you have access.
The display normally shows date and time, the owner ID and telephone number. The
owner ID can manually be set by the user.

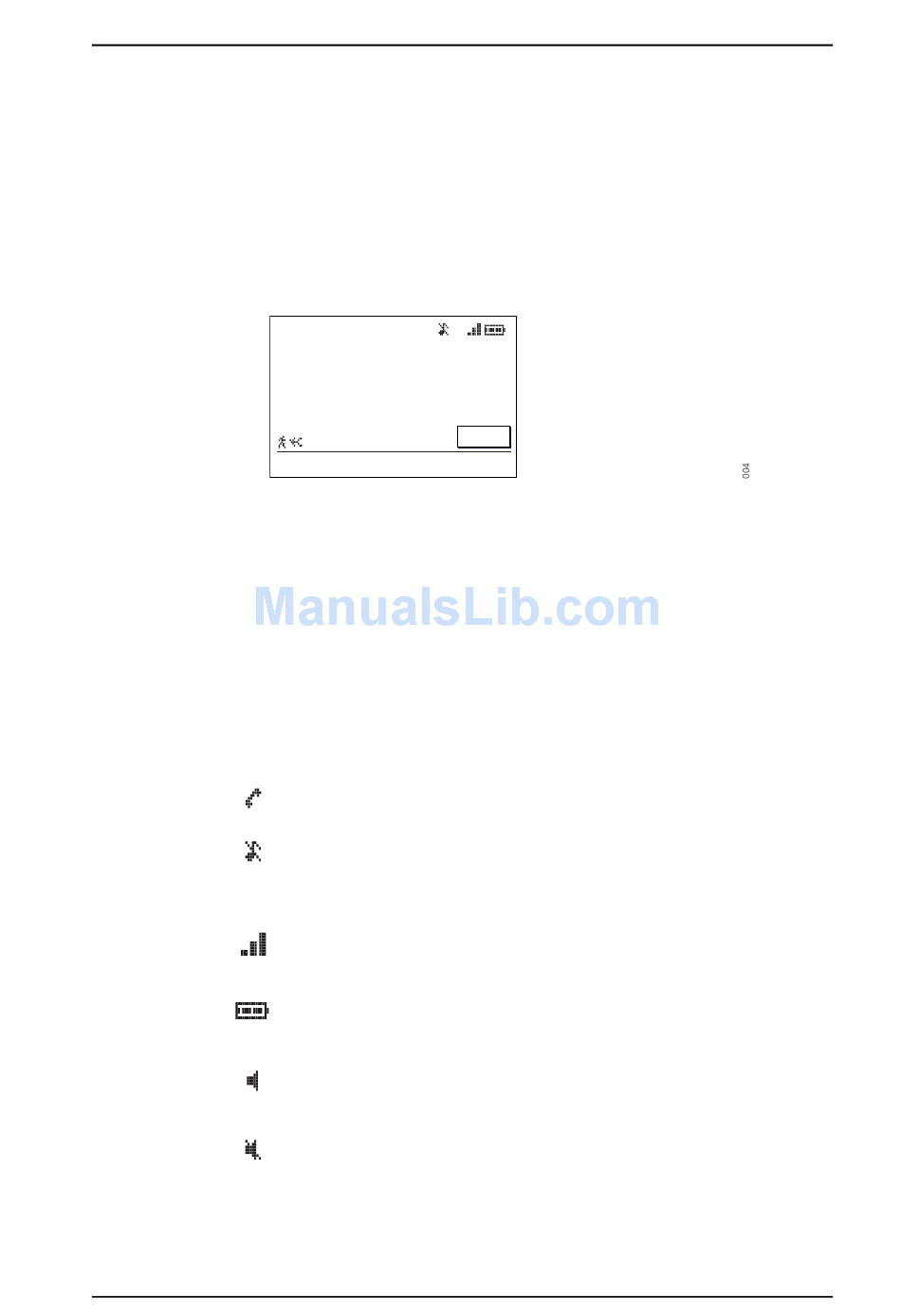

Figure 4. Example of a display configuration in stand-by mode.
In stand-by mode the upper row is used for icons. Three rows are used for information.
The first row shows the date and time and the second row is used for user information.
The user information in stand-by mode can be set by the user. The third information row is
used for showing the alarm icons and status of the handset. Examples of status
information are; muted, in charger etc. When there is no status to show the row is empty.
The bottom row (under the line) is the Soft key field. In stand-by mode it shows the user
defined names of the three Soft keys beneath the display. In menu mode where the Soft
keys are used for different choices, it gives you the function of each Soft key. Examples of
functions are; Select, Back, Option, Save etc.
2006-09-22/ Ver. B
9.6.2 Change Profile Settings
Figure 4.
Apr 30 10:36am
Elisabeth 23654
Menu Assist
The "Off-hook" icon indicates that your handset is off-hook.
The "Audio signals off" icon is shown when all alert signals,
including ring signal, message tone, key beep etc. are turned off.
High priority messages will however override this setting.
The "Signal strength" icon is always shown in the display in stand-
by mode. The level indicators decreases when the signal strength
becomes weaker.
The "Battery" icon is always shown in the display in stand-by mode.
When the level is low it is time to charge the battery.
The "Loudspeaking on" icon is shown when it is possible to use the
loudspeaking function.
The "Loudspeaking off" icon is shown when the loudspeaker is
activated.
on page 43.
}
Icon row
}
Time and date
}
User information
} Status information, i.e. current mode,
Silent
and alarm icons
} Shows the Soft keys function:
Doctor
User defined in stand-by mode
