User Manual
Ascom i75 VoWiFi Handset
Handset Memory
The handset memory contains all personal settings such as phonebook, identity, alert
signal and your defined functions of the Soft keys and Hot keys. All personal settings are
downloaded to the memory when the user logs into the WLAN network. In addition, the
memory holds up to two versions of the firmware.
2.2

Chargers

2.2.1

Desktop Charger for Ascom i75 VoWiFi Handset

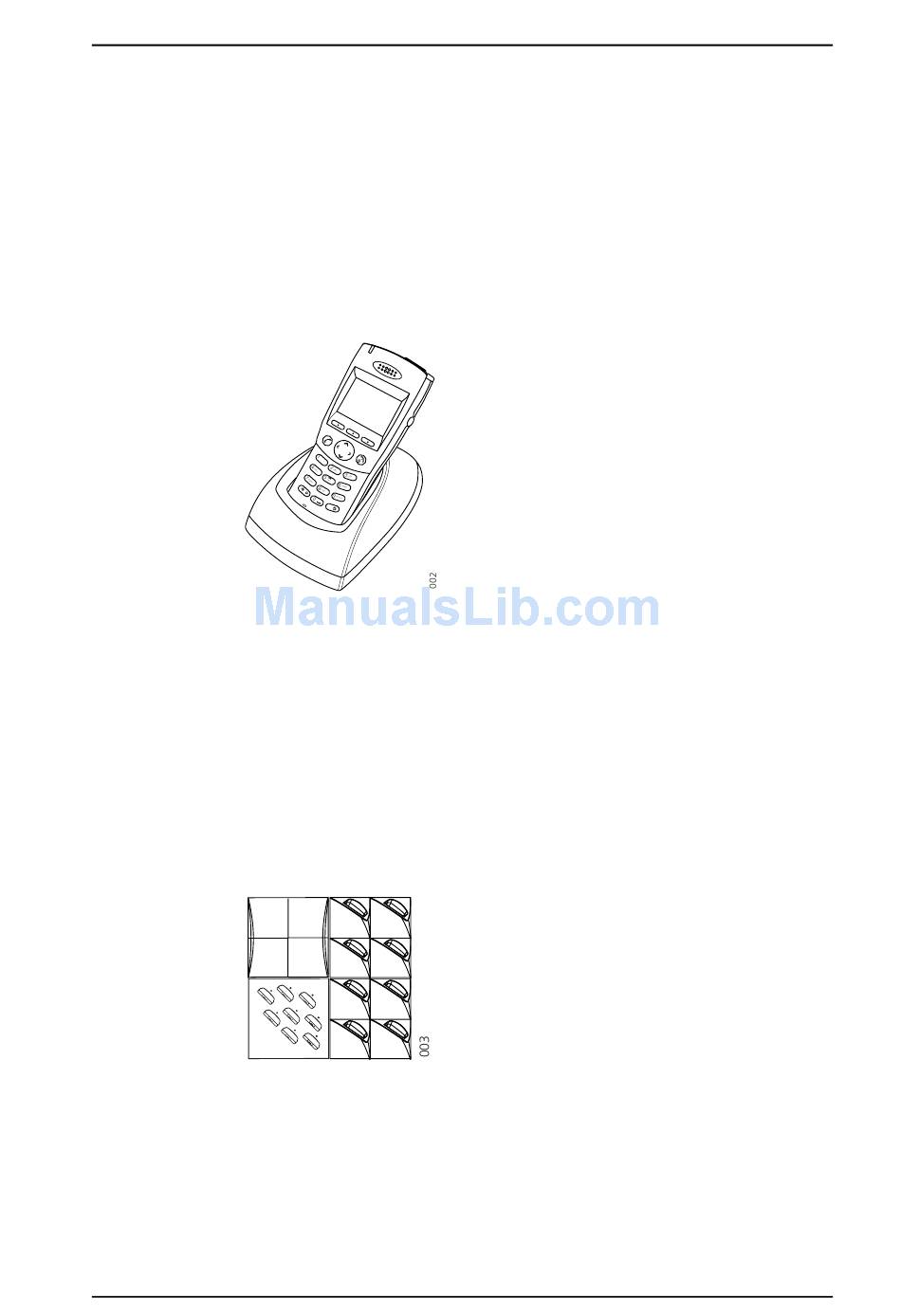

Figure 2. i75 in Desktop Charger.
The Desktop Charger is used for charging your handset, for example at your desk. The
tilted design facilitates the use of handsfree operation, for example in loudspeaking mode.
The charger is delivered with a plug-in power supply and is connected into a wall socket.
2.2.2

USB Programming Device

Similar to the Desktop charger in design, the USB programming device is used to connect
your handset to a computer in order to upgrade the firmware and edit parameters.
2.2.3

Wall Mounted Charging Racks

Figure 3. Example; two charging racks for handsets and one for spare batteries.
Wall mounted charging racks is used for charging handsets and spare batteries. The
charging racks and its power supply are a modular system which enables a number of
installation configurations. Each power supply can support three charging racks with four
positions for handsets, or eight positions for batteries, in each rack (see the Data Sheet for
Charging Rack).
2006-09-22/ Ver. B
Figure 2.
Figure 3.
TD 92319GB
4
