Display Icons and Text

Functions and settings available to the user are shown as icons and text on the display. This section
describes the status and system icons and their functions.

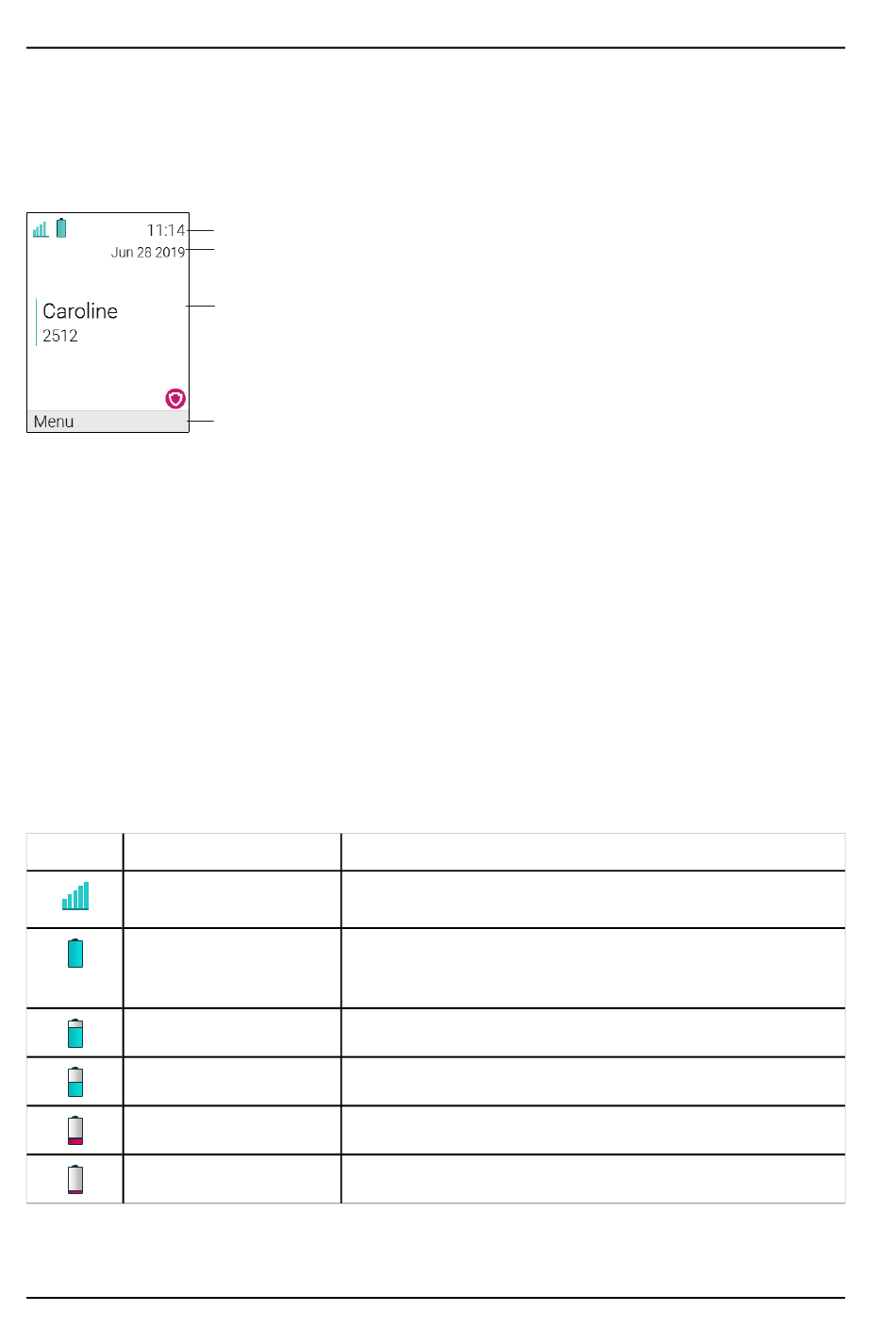

Figure 2. Example of the screen in Idle mode
Status bar shows icons that give the user information about signal strength, battery status, sound off,
missed calls, new messages/voice mail, key lock, phone lock, and time. This row is always visible on all
screens.
Header bar displays headset connection, Bluetooth connection / Bluetooth headset connection, man-down
and no-movement functions, and the current date.
Active area is used for information such as the name of the system to which the handset is connected to. A
user identity provided by the system and/or an Owner ID can also be displayed if configured. This is also
the area for dialog window text, for example Missed calls or to confirm an action.
Soft key bar is used for soft keys that can be used as shortcuts for functions in the handset.
The Scroll bar can be found on the right of the Active area. It becomes visible when a menu screen has
more than six menus, or if the complete text in a message cannot be displayed on the screen
simultaneously.
Table 2 Status and system icons description
Icon Name
Signal strength
Full battery
High battery level
Medium battery level
Low battery warning
Very low battery warning
TD 93289EN / 09 April 2020 / Ver. C
Status bar
Header bar
Active area
Soft key bar
Description
Indicates the strength of the signal. The icon is located in the
Status bar.
Indicates that battery has 75 to 100% remaining capacity. All
icons indicating the battery capacity status are located in the
Status bar.
Indicates that battery has 50 to 75% remaining capacity.
Indicates that battery has 25 to 50% remaining capacity.
Indicates that battery has 10 to 25% remaining capacity.
Indicates that battery has 7 to 10% remaining capacity.
