Maintenance

12.1 Charge the Battery

The battery requires charging when the handset is not in use or when the battery icon in
the display shows a low charge.
Place the handset in the charger. A beep indicates connection with the charger. The
charging status is shown by the battery icon in the handset display. After approximately 2–
6 hours the handset is fully charged, indicated by a filled battery icon. If the handset is
switched off when placed in the charger, the charging indicator will be shown. The
charging indicator will show a full battery if the battery is fully charged.

12.1.1 Charging Spare Batteries

Spare batteries can be charged in the wall-mounted Charging Rack equipped with the
Battery Pack Charger.

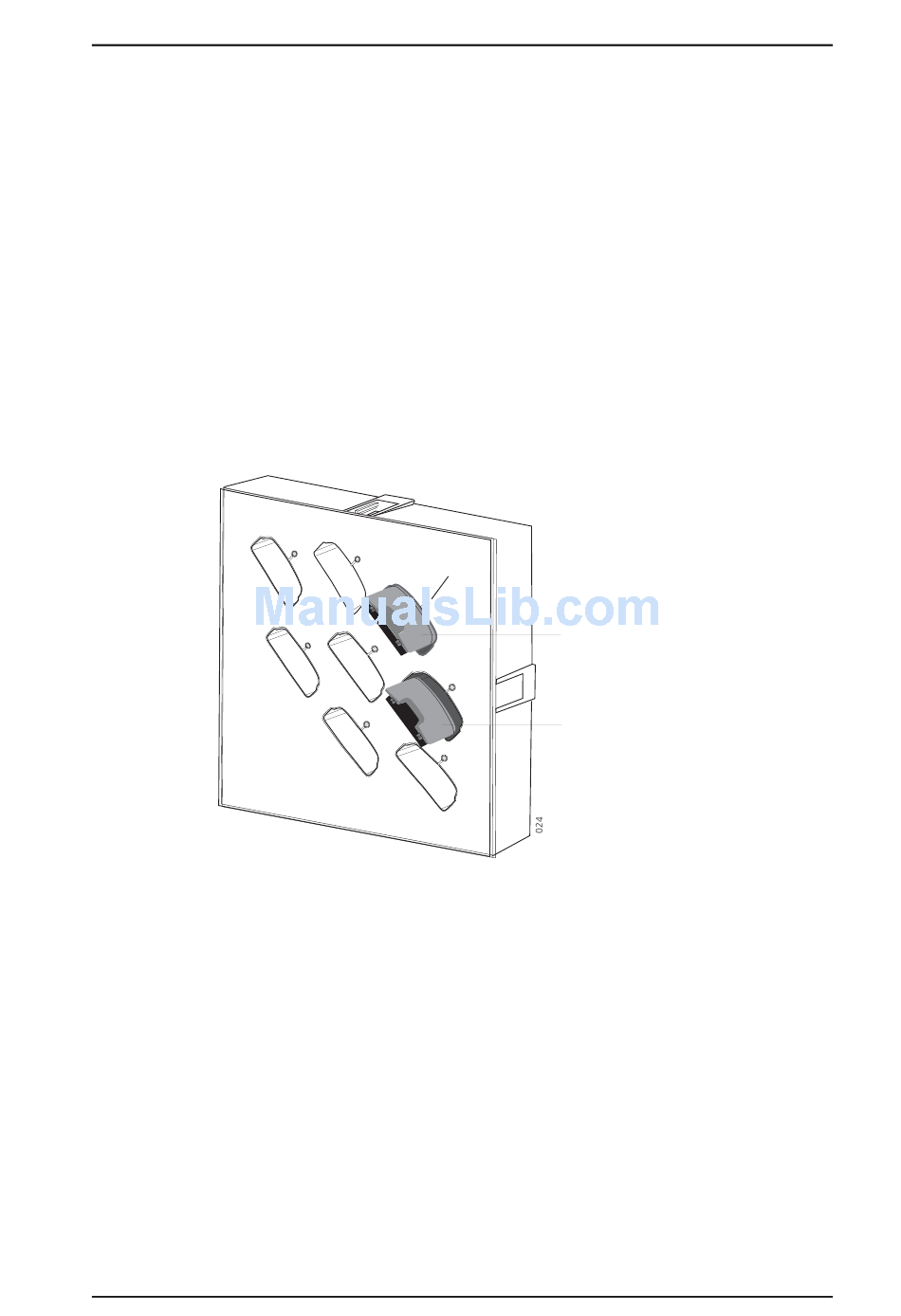

Figure 15. Inserting a battery in the battery charger.
Place the battery in the charging slot. The LED on the adapter shows an orange light.
When the battery is fully charged, the LED will show a green light.
If an error occurs during charging, the LED will show a red light.
If the LED does not start to flash when the battery is placed in the charging slot, the
battery is not in contact. Remove the battery and put it into the charging slot again.
Note: It is not possible to charge spare batteries in the Desktop Charger.

12.2 Remove the Battery

The battery is fastened by two hooks. To remove the battery, press firmly on the two
release buttons on the sides of the handset.
