Descriptions

Volume button
Off hook key
Navigation key

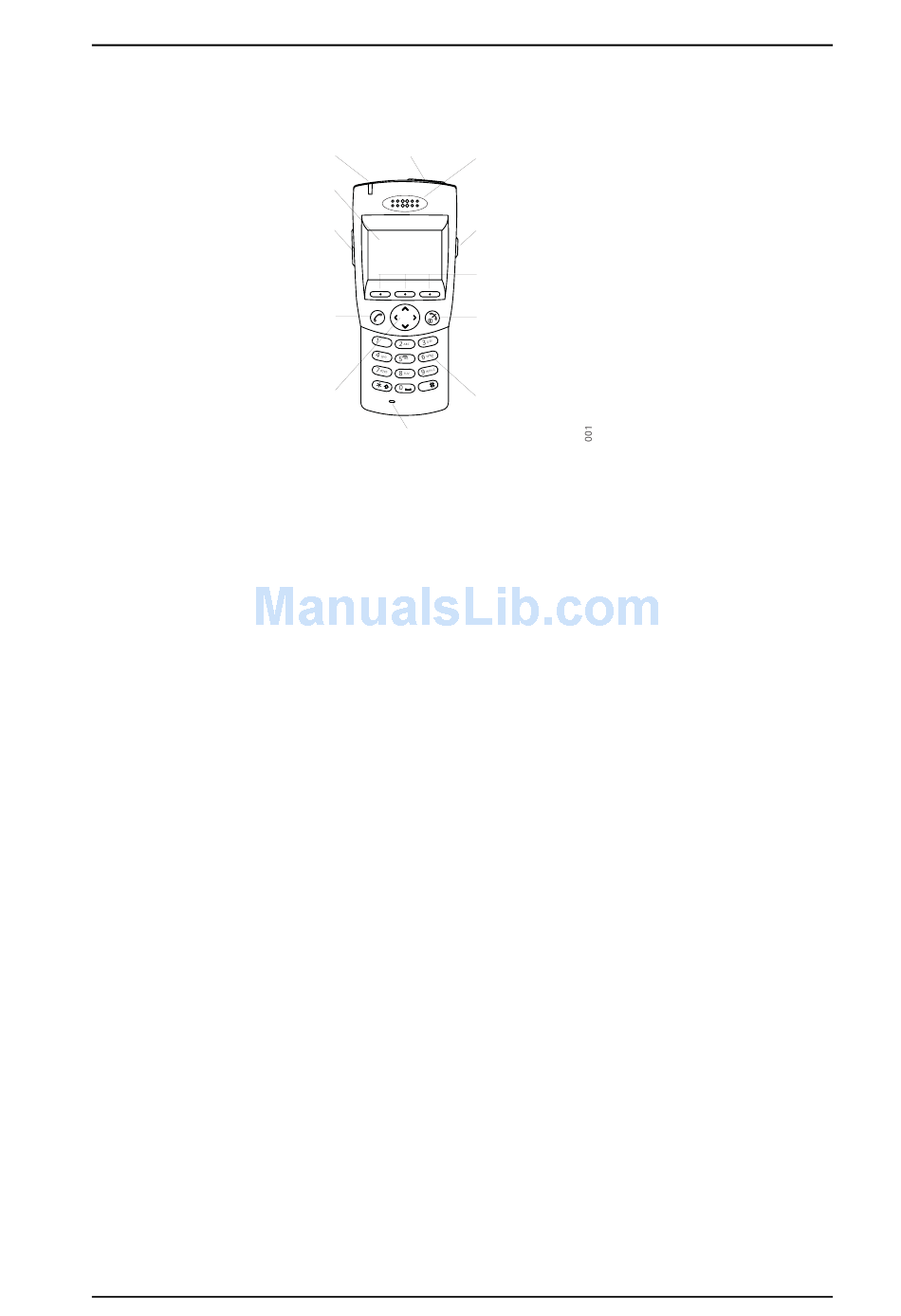

Figure 1. Overview of the Ascom i75 VoWiFi Handset.
2.1

The Ascom i75 VoWiFi Handset

Case
The case is made of durable PC/ABS plastic.
The i75 Handset has the enclosure protection IP40 and it also fulfils IEC 68-2-32 procedure
1, which makes it drop proof from 1.5 meters onto concrete.
Antenna
The antenna is integrated inside the handset.
Display
The display is an illuminated 128 x 64 pixels LCD, covered by anti-reflex treated plastic
glass for maximum readability.
Keypad
The keypad is illuminated, which makes it possible to operate the handset in dark
environments. While not in use, the keypad should be locked to prevent pressing a key
accidentally.
Clip, Hinge-type
The clip on the back of the handset helps you fasten the handset to a belt or similar.
It is also possible to change the clip to a swivel-type or, if no clip is needed, to replace it
with a covering plate.
Battery
The battery is a rechargeable Li-lon battery placed on the back of the handset.
2006-09-22/ Ver. B
Figure 1.
Alarm button
LED
Display
Microphone
Loudspeaker
Mute button
Soft keys
On hook key
On/Off key
Alpha numeric keys
TD 92319GB
