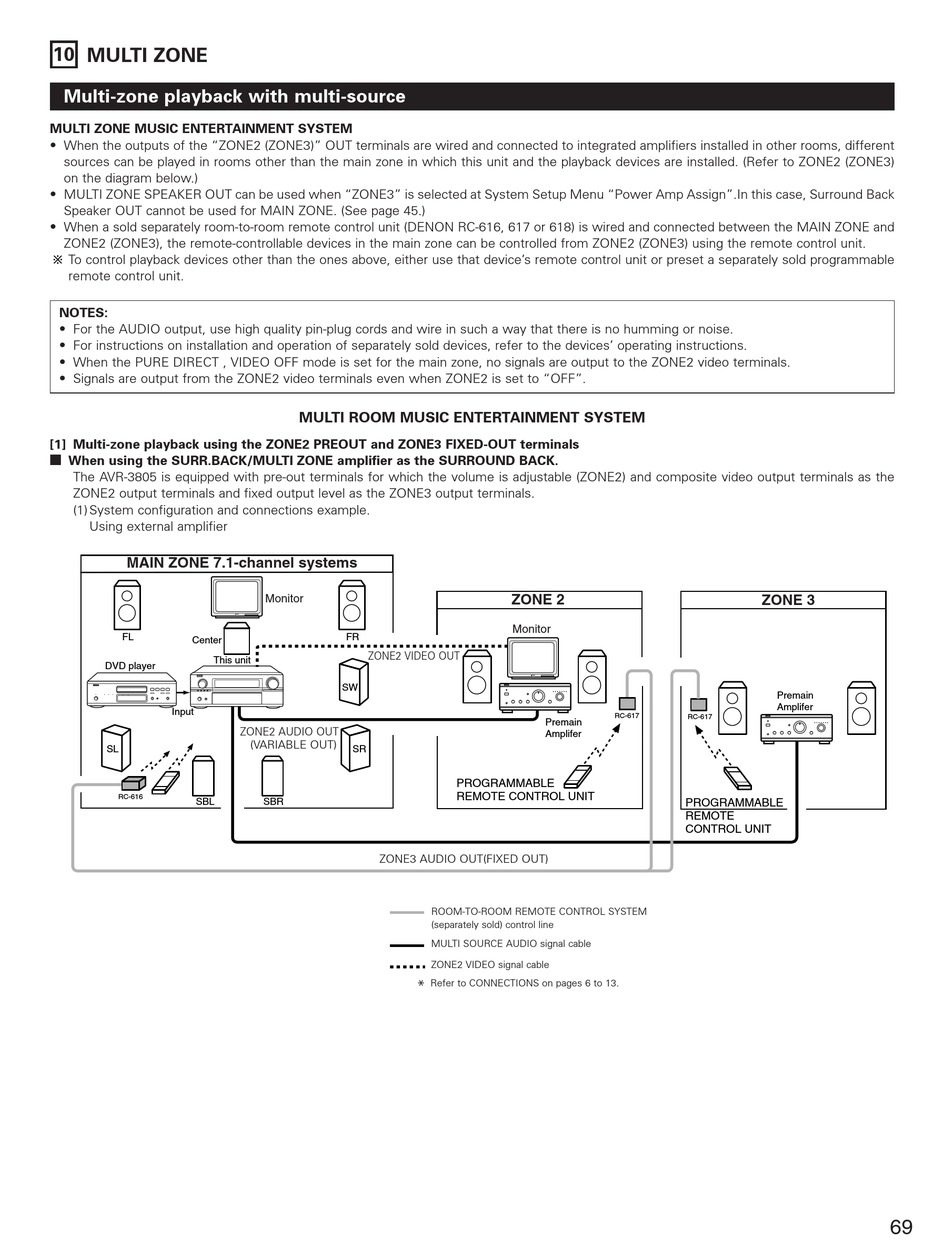

10 MULTI ZONE

Multi-zone playback with multi-source
MULTI ZONE MUSIC ENTERTAINMENT SYSTEM
• When the outputs of the "ZONE2 (ZONE3)" OUT terminals are wired and connected to integrated amplifiers installed in other rooms, different
sources can be played in rooms other than the main zone in which this unit and the playback devices are installed. (Refer to ZONE2 (ZONE3)
on the diagram below.)
• MULTI ZONE SPEAKER OUT can be used when "ZONE3" is selected at System Setup Menu "Power Amp Assign".In this case, Surround Back
Speaker OUT cannot be used for MAIN ZONE. (See page 45.)
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and connected between the MAIN ZONE and
ZONE2 (ZONE3), the remote-controllable devices in the main zone can be controlled from ZONE2 (ZONE3) using the remote control unit.
To control playback devices other than the ones above, either use that device's remote control unit or preset a separately sold programmable
remote control unit.
NOTES:
• For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices' operating instructions.
• When the PURE DIRECT , VIDEO OFF mode is set for the main zone, no signals are output to the ZONE2 video terminals.
• Signals are output from the ZONE2 video terminals even when ZONE2 is set to "OFF".
[1] Multi-zone playback using the ZONE2 PREOUT and ZONE3 FIXED-OUT terminals
2 When using the SURR.BACK/MULTI ZONE amplifier as the SURROUND BACK.
The AVR-3805 is equipped with pre-out terminals for which the volume is adjustable (ZONE2) and composite video output terminals as the
ZONE2 output terminals and fixed output level as the ZONE3 output terminals.
(1) System configuration and connections example.
Using external amplifier
MAIN ZONE 7.1-channel systems
FL
Center
This unit
DVD player
B
Input
SL
RC-616
SBL
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
Monitor
FR
ZONE2 VIDEO OUT
SW
CH SEL
ENTER
ZONE2 AUDIO OUT
(VARIABLE OUT)
SR
SBR
ZONE3 AUDIO OUT(FIXED OUT)
ZONE 2
Monitor
B
Premain
Amplifer
PROGRAMMABLE
REMOTE CONTROL UNIT
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE AUDIO signal cable
ZONE2 VIDEO signal cable
* Refer to CONNECTIONS on pages 6 to 13.
ZONE 3
Premain
Amplifer
RC-617
RC-617
B
PROGRAMMABLE
REMOTE
CONTROL UNIT
