Denon AVR-3805 & AVR-2805 Manual

Partner: Denon
Model: AVR-3805 & AVR-2805
Device Type: Receiver
GENERAL INFORMATION
SIMPLWINDOWS NAME:
CATEGORY:
VERSION:
SUMMARY:
GENERAL NOTES:
CRESTRON HARDWARE REQUIRED:
SETUP OF CRESTRON HARDWARE:
VENDOR FIRMWARE:
VENDOR SETUP:
CABLE DIAGRAM:

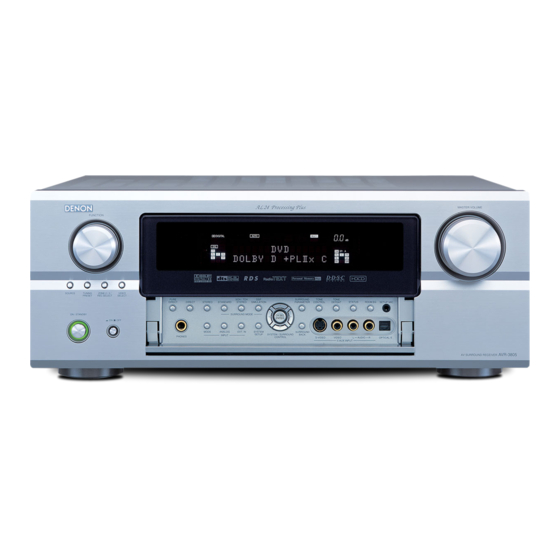

Denon AVR-2805 + AVR-3805
Receiver/Processor
1.0
Controls all of the standard functions and provides true feedback.
This module will control all of the standard functions on a Denon AVR-2805/3805
receiver. True feedback is provided by the receiver. Functions provided include main
zone control as well as zone 2, zone 3 and record zone source selection, surround
mode selection, surround speaker level adjustments, and tuner band/preset
selection.
Note that for surround mode selection, certain selections are only valid while certain
sources are selected. So choosing a particular surround mode may actually cause a
slightly different mode to be activated on the Denon system. However, since true
feedback is provided, the actual surround mode currently active will be reflected on
the output of this module.
Note that some functions are not valid on the AVR2805. This includes the zone 3
commands and some of the surround modes.
CNXCOM, ST-COM, C2-COM
RS232
Baud: 9600
Parity: None
Data Bits: 8
Stop Bits: 1
None
None
CNSP-121
