Installation instructions, only for experts
5. Electrical connection
Observe the following points when connecting the power to the infrared controller:
● Work on the infrared controller may only be performed when the power has
been disconnected.
All components on the Infrabox Basic power supply unit are connected as shown
in the figures below:
5.1. Connection area for sensor/control unit/seat sensor
1
Seat sensor (optional)
2
Foiltemperature sensor (FF)
Safety temperature limiter (STB)
3
Infrabox control unit

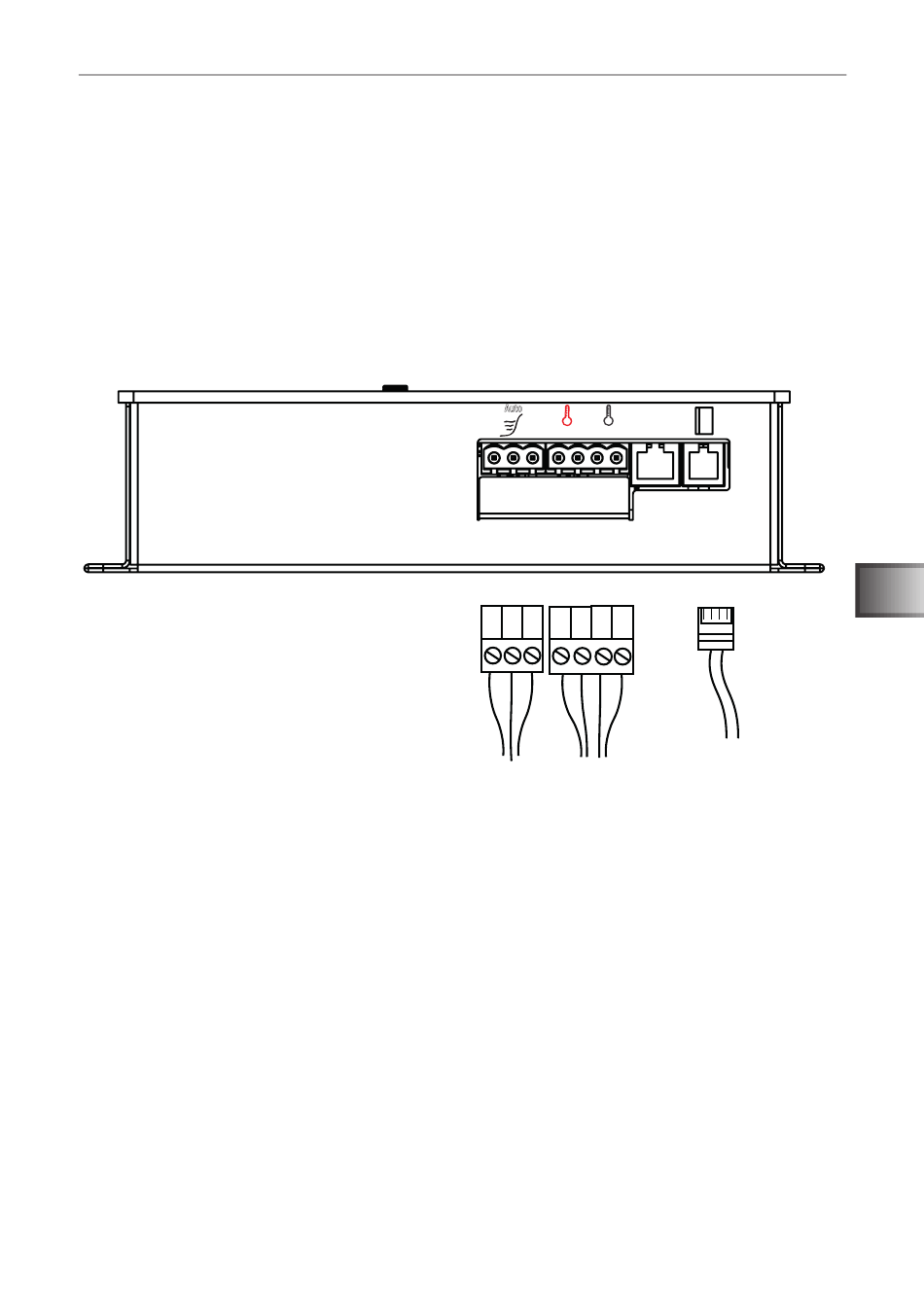

Fig. 6: Connection area for sensor/control unit/seat sensor
Auto
STB
FF
rd wt bk
1
2
rd = red = rot
wt = white = weiß
bk = black = schwarz
p. 15/32
3
EN
