Installation instructions, only for experts

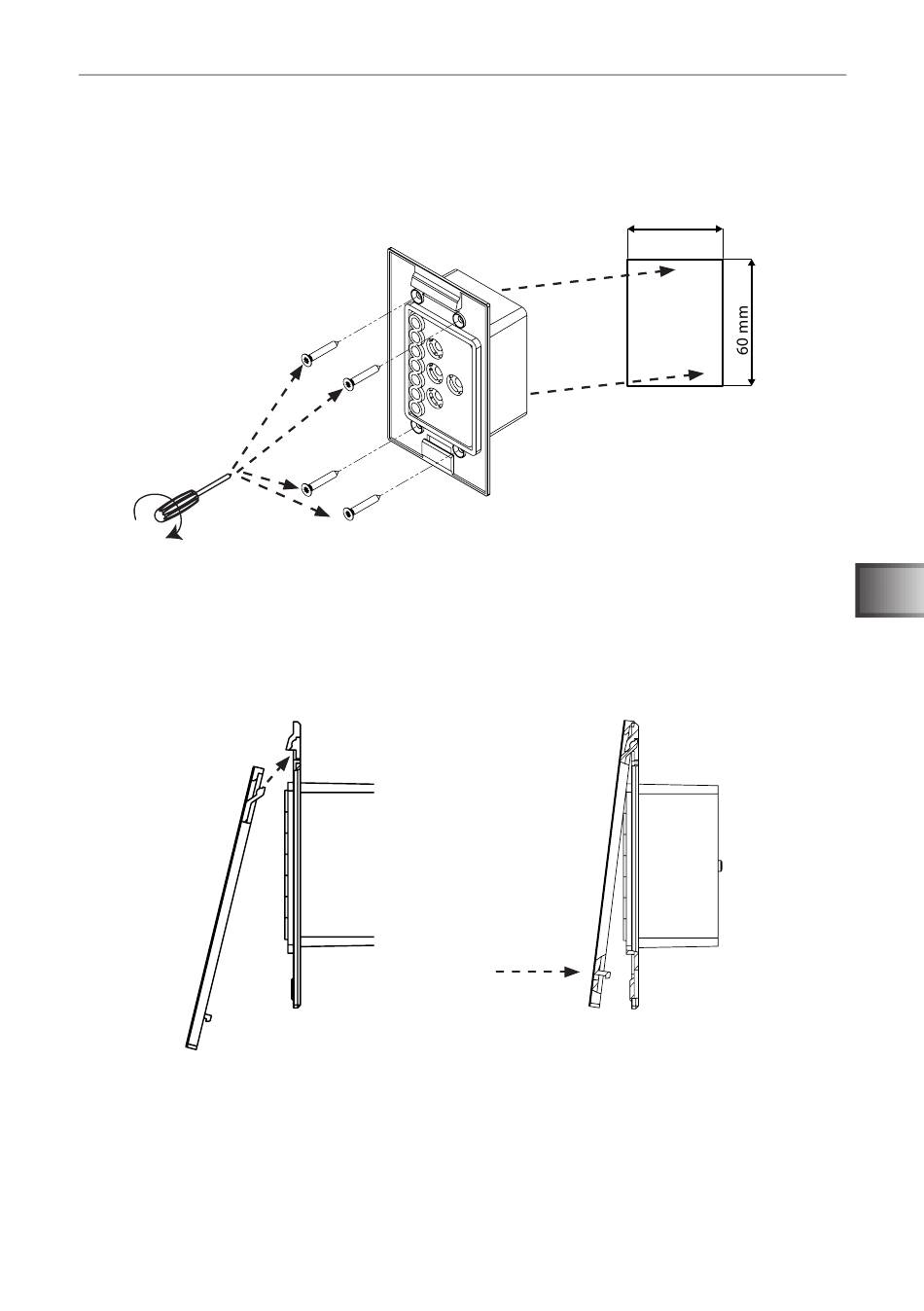

1. Cut out the 60 x 48 mm recess using a jigsaw, for example.
2. Provide cable guides for the connecting cable.
3. Screw the housing to the cabin wall by screwing the 4 wood screws supplied
through the hole.
Fig. 3
4. The front panel of the control unit is inserted with slight pressure into
the housing. Ensure that the lower catches engage noticeably.
5. Connect the 4-pin plug to the RJ11 socket on the control unit.
Installing the control unit
Fig. 4 Installing the control unit
p. 13/32
48 mm
EN
