Installation instructions, only for experts
4.2. Installing the control unit
The control unit 2
of the cabin with a maximum clearance of 10 metres from the power supply
unit 1
(see Fig. 2). For the installation, a standard jigsaw is required to cut out
the recess for the control unit. The operating unit can be installed both inside
and outside the cabin.
*
For installation inside a sauna cabin, maintain a distance of at least 30 cm to
the ceiling. (see Fig. 2 Control panel position on page 12).
ATTENTION!
Damage to the unit
● The control unit 2
(protection class IP X4).
● Work on the control panel may only be carried out using a standard screw-
driver. Using a cordless screwdriver may irreparably damage the housing.
min. 30 cm
2

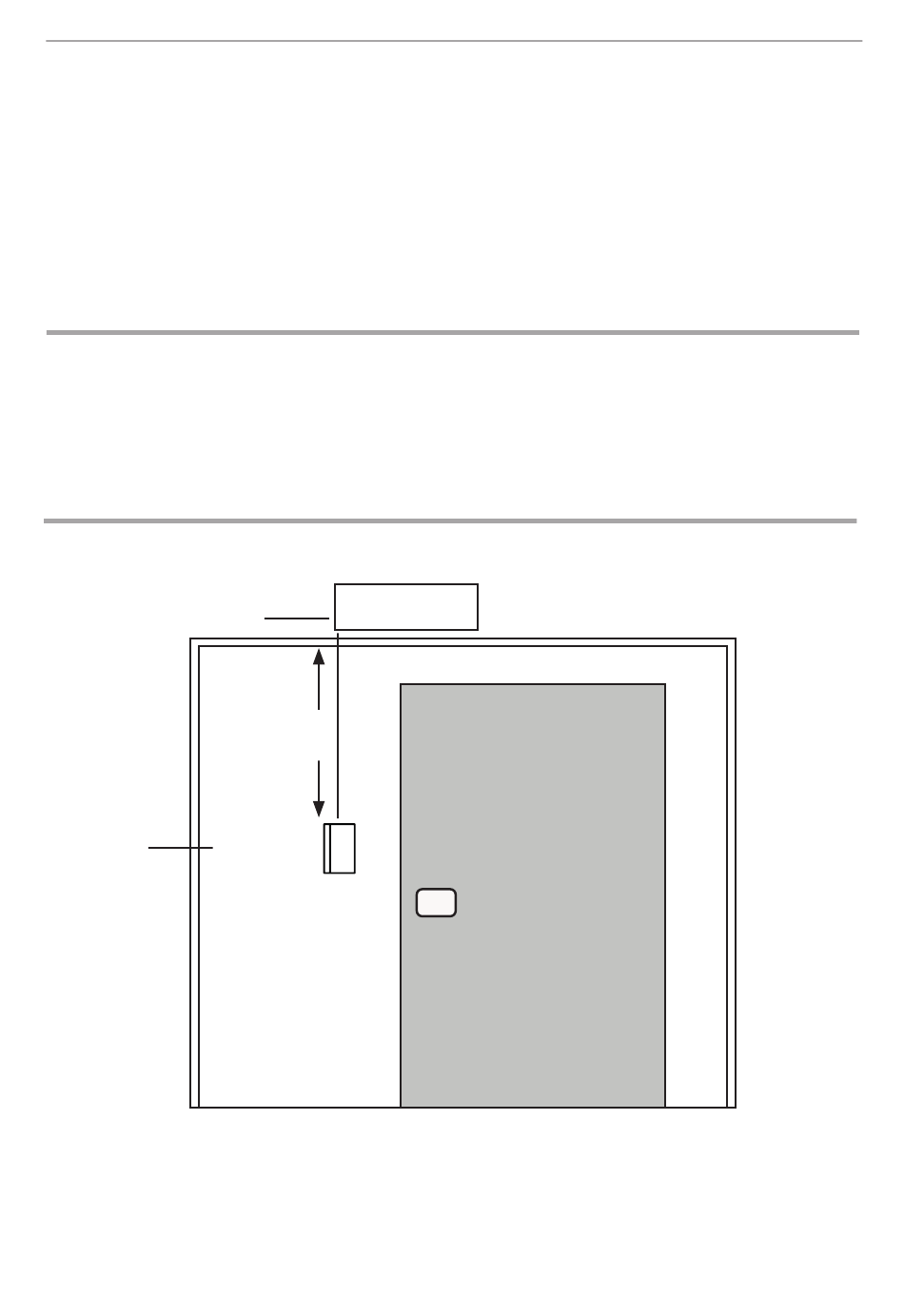

Fig. 2 Control panel position
*
for assembly inside the cabin
of the infrared controller is installed on the outside wall
of the infrared controller is splashproof
Power unit
1
Infrabox Basic
*
Control
unit
External view
p. 12/32
