è The programming is complete, and the drive switches to low consumption mode.

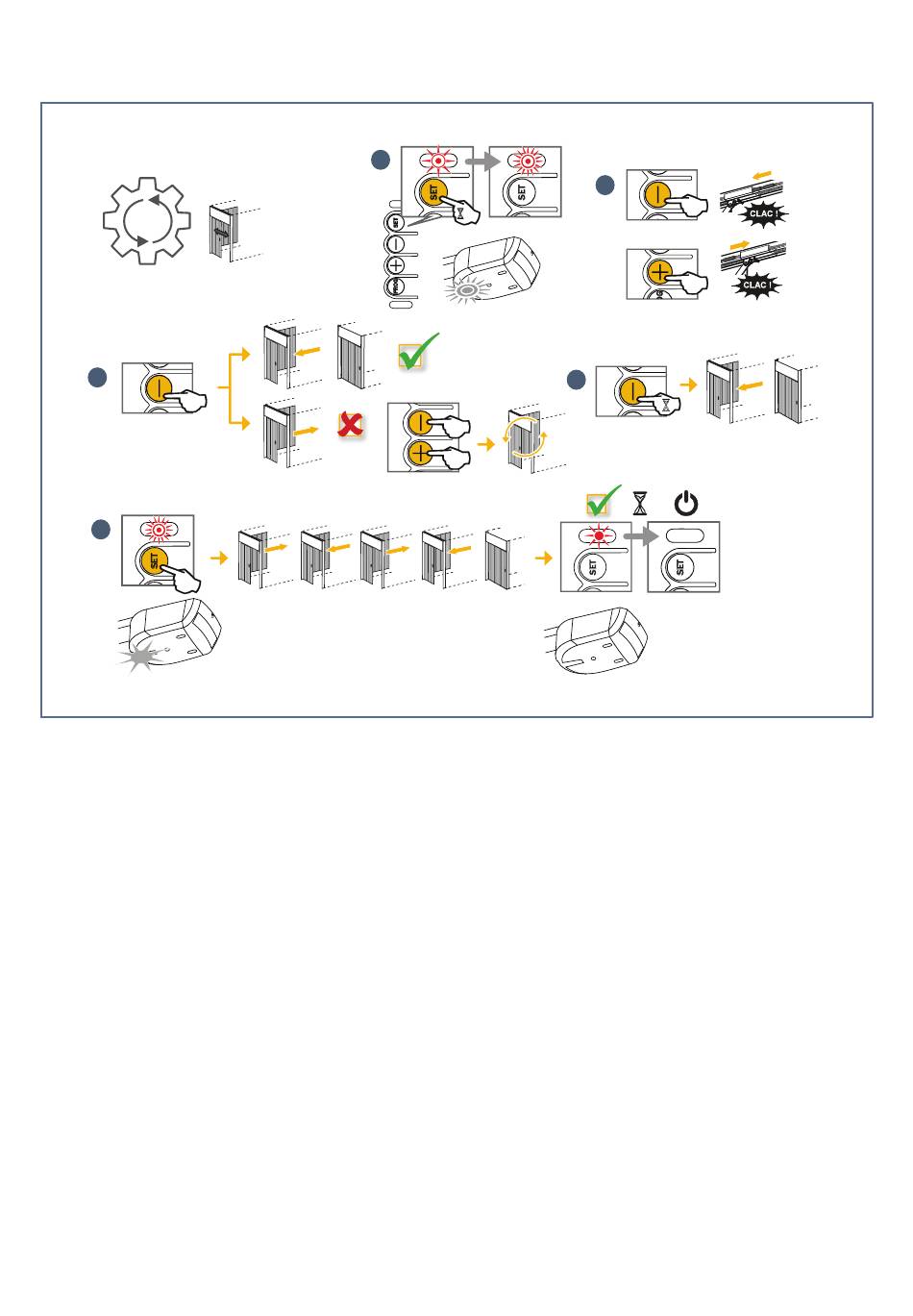

4.3.2 Garage side door auto-programming (Dexxo Compact 1000 io only)
AUTO
3
5
1. Press the "SET" button (≈ 2 s) until the integrated lighting and the "SET" indicator light flash quickly.
2. Control the motor using the "+" or "-" button to engage the transmission shuttle on the carriage.
3. Check that pressing the "-" button closes the door. If the door opens, press the "+" and "-" buttons simultaneously to reverse the
direction of operation.
4. Close by pressing and holding the "-" button. Adjust the closed position using the "+" or "-" button. Release before forcing the
door.
5. Press the "SET" button to start auto-programming:
ð The closing position has been memorised.
ð The door opens at reduced speed.
ð The door closes at nominal speed, then reduced speed until it reaches the memorised closed position (closing force limited to
400 N).
ð The door opens at nominal speed, then reduced speed until it reaches the open position.
ð The door closes at nominal speed, then reduced speed until it reaches the memorised closed position (closing force limited to
400 N).
è The "SET" indicator light is continuously lit, and then goes out after a few seconds.
è Programming is complete, and the drive switches to low consumption mode.
4.4 Low consumption mode
P4 (low consumption mode): Active
After 15 minutes with no activity, the product will switch to low consumption mode.
The SET indicator light goes out.
The 24VDC auxiliary power supply is deactivated.
Pressing a button will make the product exit low consumption mode for 15 minutes.
26
1
2s
DEXXO COMPACT io
2
4 4
©
