DEXXO COMPACT io

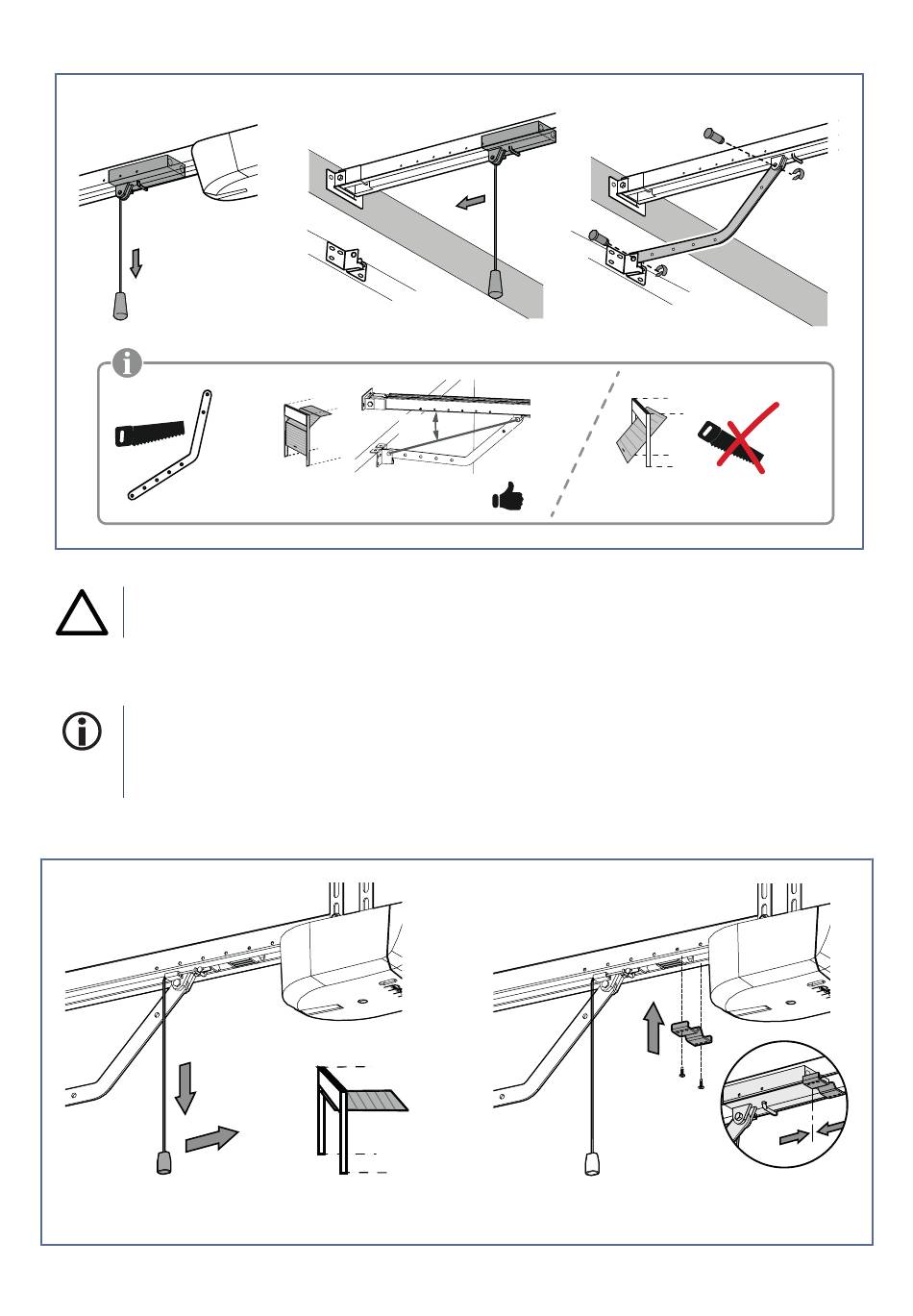

3.8 Mounting the arm to the door and carriage
CAUTION
If the back release handle is higher than 1.80 m, it is necessary to extend the cable to make it accessible to all users.
1.
Release the carriage using the manual back release device.
2.
Bring the carriage level with the door.
3.
Secure the arm to the door yoke and carriage.
NOTICE
Cutting the arm
Sectional door: for optimum operation, the arm must form a 45° angle with the rail. If necessary, cut the arm.
Up-and-over door: do not cut the arm.
3.9 Setting and mounting the opening stop
1.
Release the carriage using the manual back release device and move the door to the open position.
©
Copyright
2024 SOMFY ACTIVITES SA. All rights reserved.
α
5° ≤ α ≤ 45°
21
