DANGER
Auto-programming is a mandatory step in commissioning the motorisation.
During auto-programming:
• the obstacle detection function is inactive. Remove any objects or obstacles and do not allow anyone near or inside the
drive's operating range.
• the safety inputs are active.
• pressing a button on the interface will interrupt auto-programming.
• the memorised remote controls can be used to interrupt auto-programming.
WARNING
Once installation is complete, it is essential to check that the obstacle detection system complies with Annex A of the standard
EN 12453.

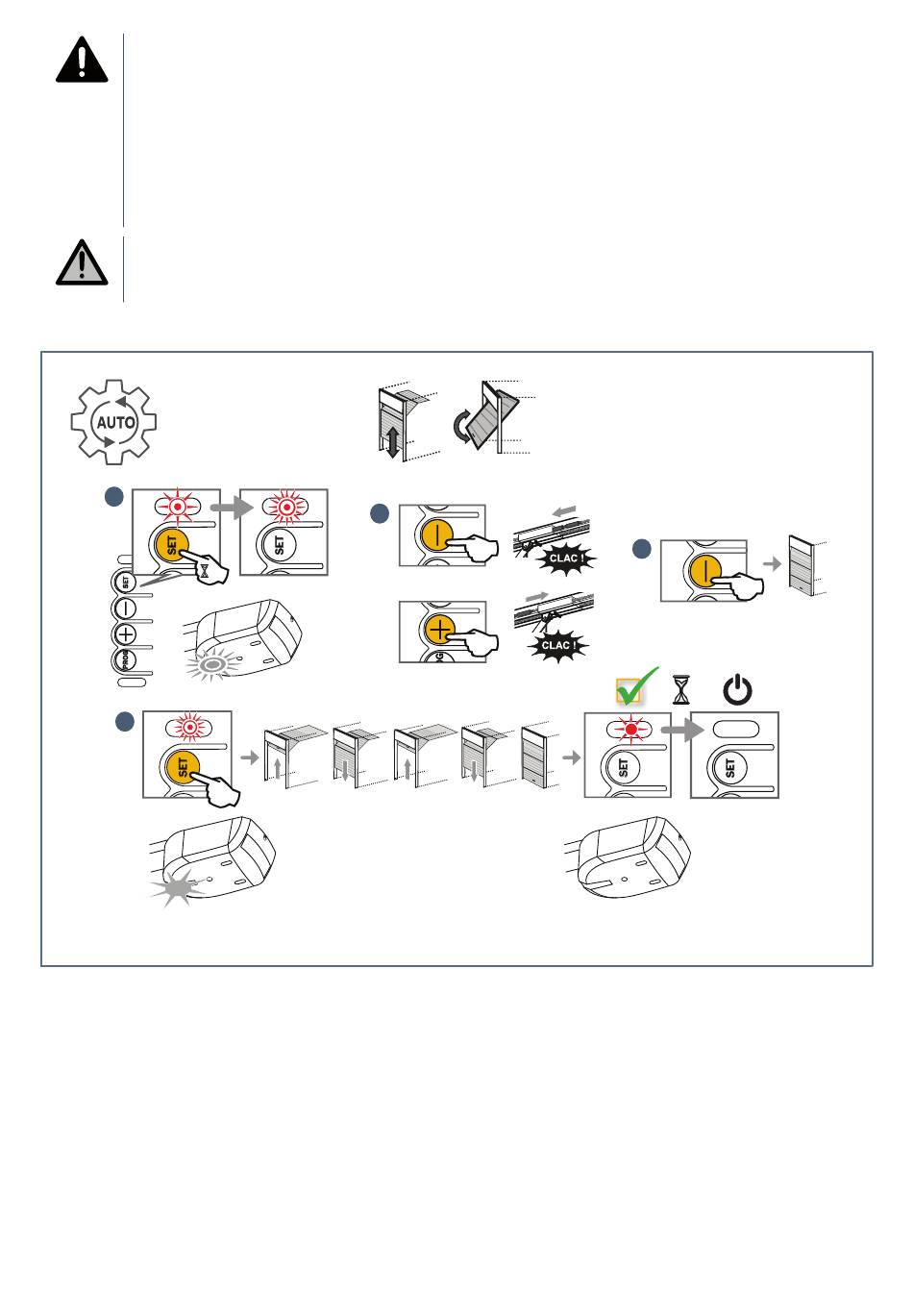

4.3.1 Auto-programming a sectional or up-and-over garage door
1
2s
4 4
1. Press the "SET" button (≈ 2 s) until the integrated lighting and the "SET" indicator light flash quickly.
2. Actuate the motor using the "+" or "-" button to engage the transmission shuttle on the trolley.
3. Close by pressing and holding the "-" button. Adjust the closed position using the "+" or "-" button. Release before forcing the
door.
4. Press the "SET" button to start auto-programming:
ð The closing position has been memorised.
ð The door opens at reduced speed.
ð The door closes at nominal speed, then reduced speed until it reaches the memorised closed position (closing force limited to
400 N).
ð The door opens at nominal speed, then reduced speed until it reaches the open position.
ð The door closes at nominal speed, then reduced speed until it reaches the memorised closed position (closing force limited to
400 N).
è The "SET" indicator light is continuously lit, and then goes out after a few seconds.
©
