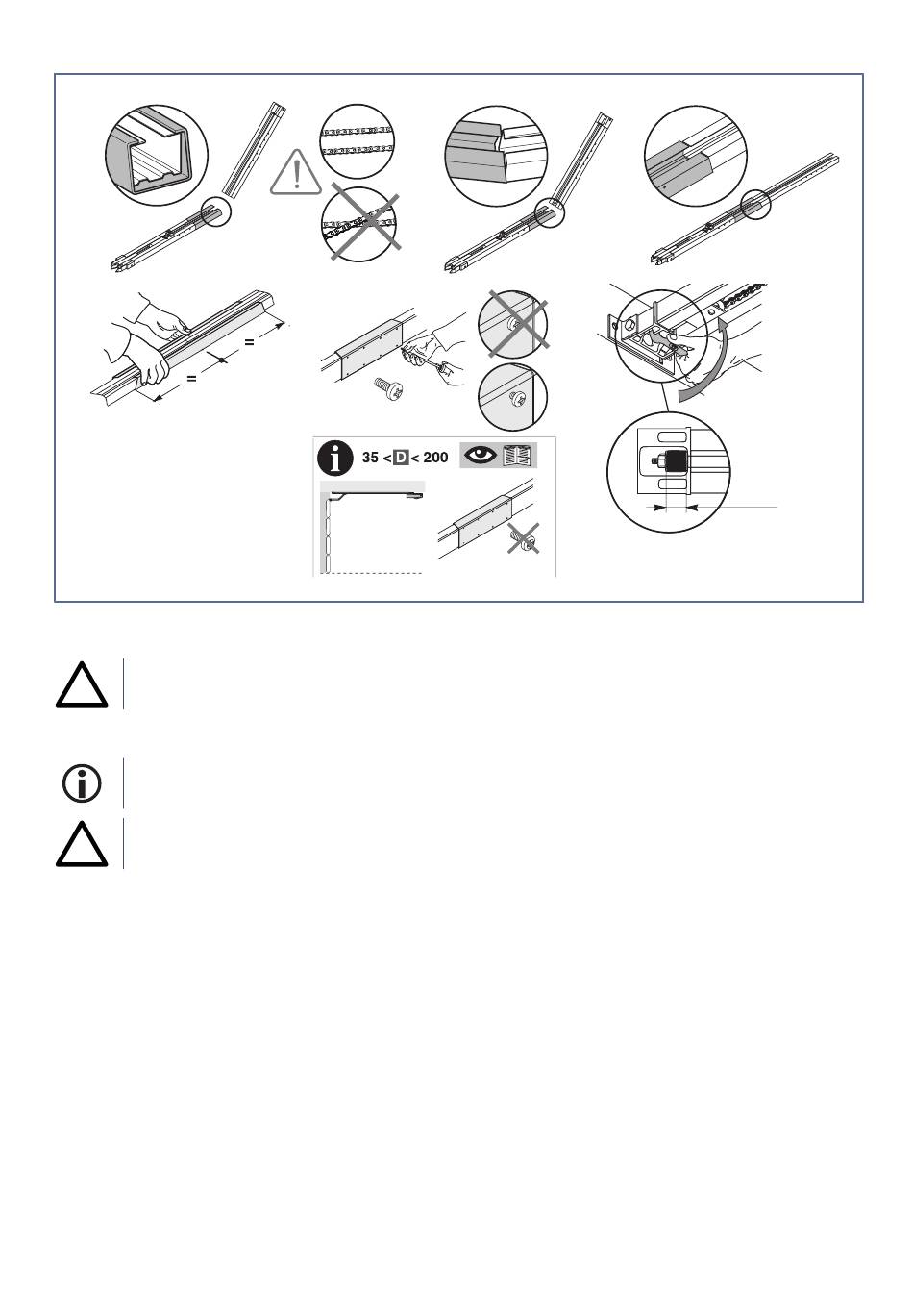

3.4 Assembling the rail in 2 sections
1)
4)
1. Unfold the 2 sections of the rail.
CAUTION
Ensure that the chain or belt is not twisted.
2. Assemble the 2 sections of the rail using the sleeve.
3. Secure the assembly using the 4 mounting screws.
NOTICE
In the case of an attached ceiling installation, do not use the sleeve mounting screws.
CAUTION
The mounting screws must not penetrate the rail (do not drill).
4. Tighten the nut to tension the chain or belt. The compressed rubber must measure between 18 and 20 mm.
18
2)
5)
x4
DEXXO COMPACT io
3)
6)
18 < x < 20 mm
x
©
