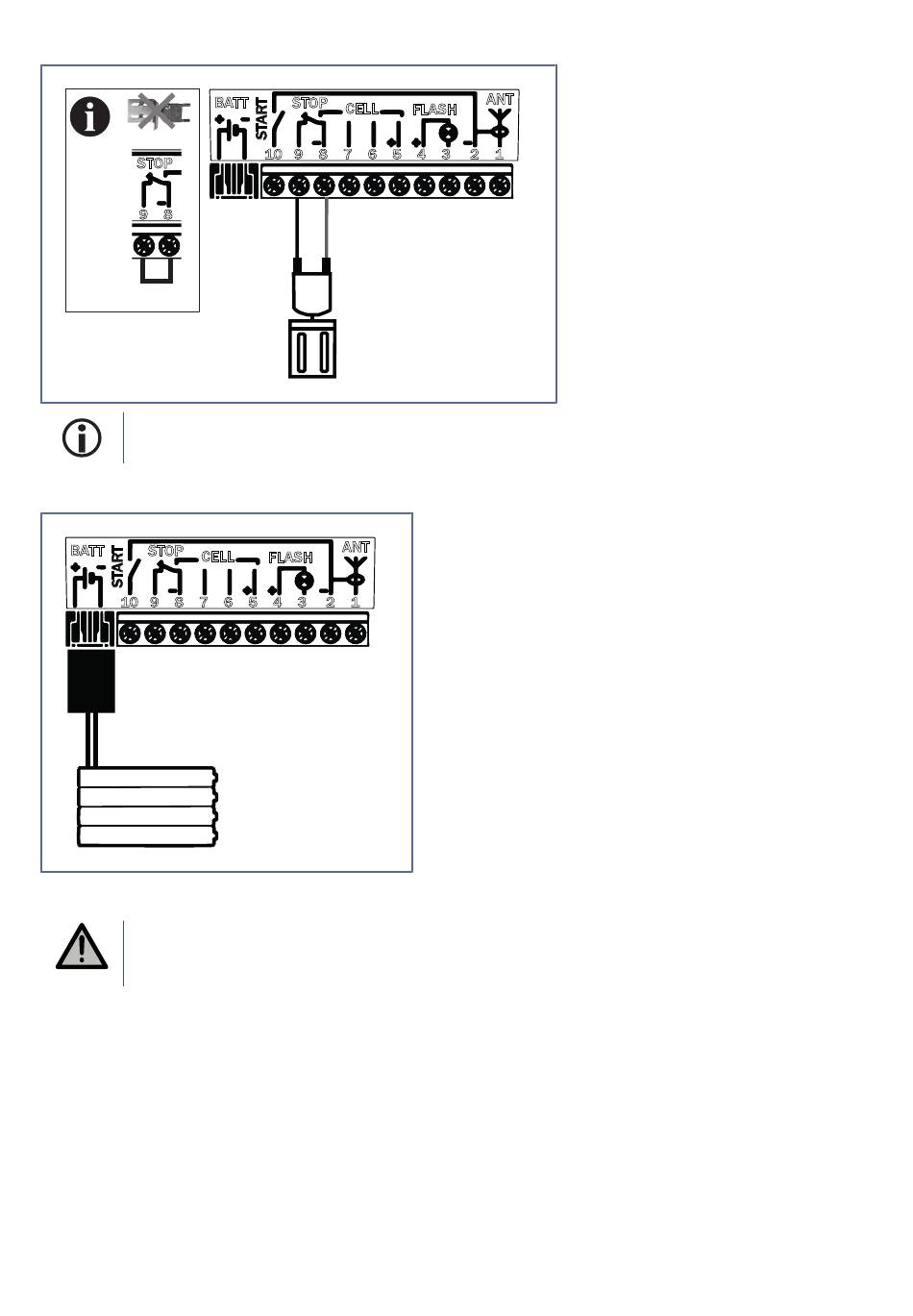

6.2.5 Gate contact
STOP
0 9
8
7
6
NOTICE
If the gate contact is removed, it is essential to make a bridge between the STOP terminals.
6.2.6 9.6 V battery
BATT
STOP
CELL
10 9
8
7
Downgraded mode: constant reduced speed (no slowing at end limit), 24V accessories inactive (including cells).
Life: maximum 24 h, with at least 3 cycles
DANGER
In the event of a leak from a component, ensure that no liquid comes into contact with the skin or eyes. If this should happen,
wash the area affected with plenty of water and seek medical advice.
