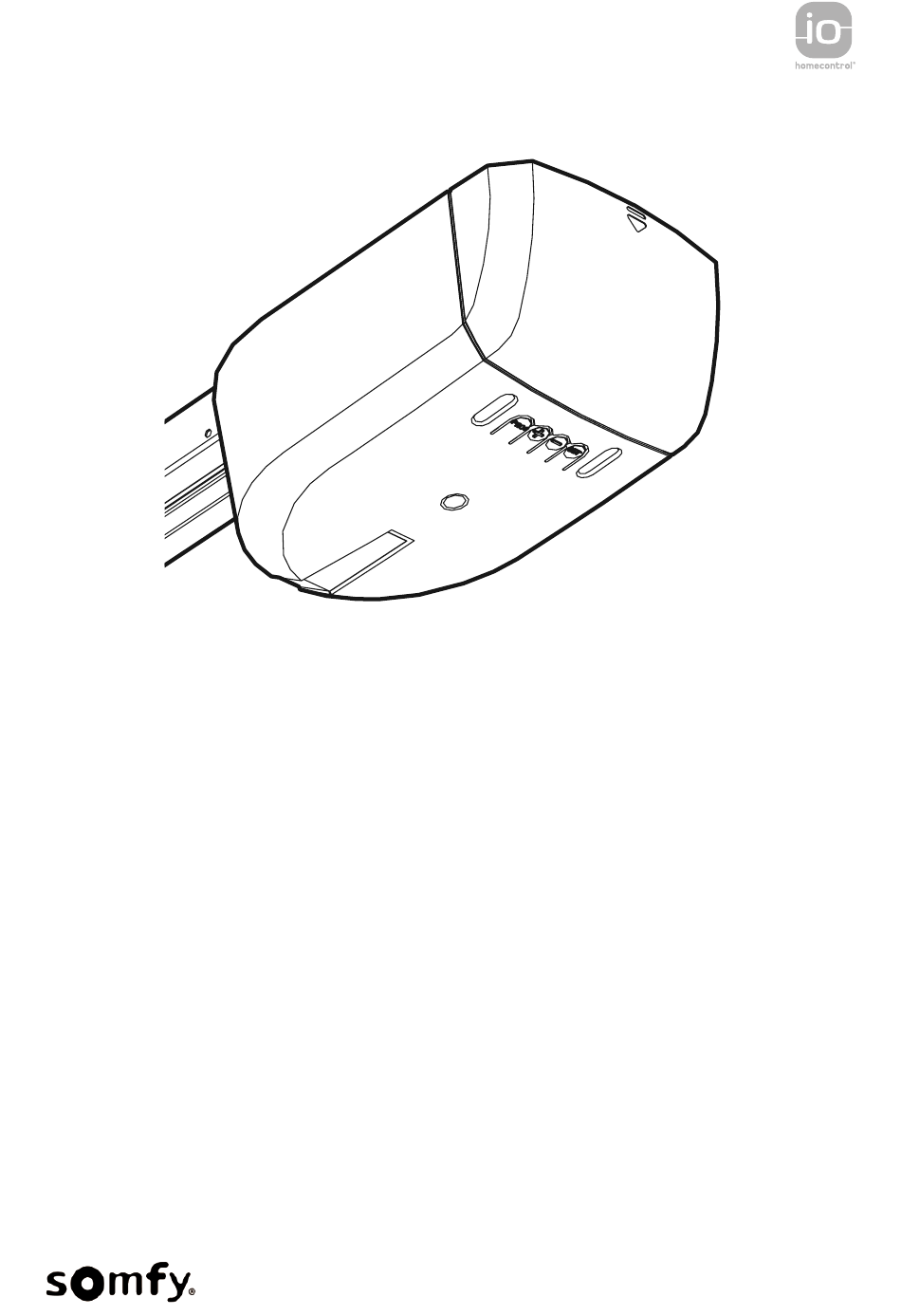

Page 1 DEXXO COMPACT io...
Page 3 Memorising the remote controls ..............................36 Memorising the 3-button remote controls..........................39 9 Programming on an io light receiver..........................41 10 Clearing the remote controls and all settings........................42 10.1 Clearing the memorised remote controls............................. 42 © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 4 12 Diagnostic and troubleshooting ............................44 12.1 Indicator light status ..................................44 12.2 Diagnostic ......................................44 12.3 Safety devices failure ..................................44 12.4 TaHoma Pro settings..................................45 13 Technical data..................................46 © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 5 Indicates a danger which may result in death or serious injury. PRECAUTION Indicates a danger which may result in minor or moderate injury. CAUTION Indicates a danger which may result in damage to or destruction of the product. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 6 Any use made of this product outside the field of application described in this manual is prohibited (see “Field of applic- ation” section). The use of any accessory or component not recommended by Somfy is prohibited as this may place people at risk. Somfy cannot be held responsible for any damage resulting from non-compliance with the instructions in this guide.
Page 7 Permanently affix the crushing warning labels near any fixed control devices or so that they are clearly visible. 1.4.1 Risk prevention – motorisation for residential sectional / up-and-over garage door Zone 4 Zone 2 Zone 5 Zone 3 Zone 1 Zone 4 © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 8 ZONE 4 Eliminate all sharp edges on the guide rails Risk of trapping between the roller rails and bearings Eliminate any gap ≥ 8 mm between the rails and the bearings © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 9 Do not use adhesive to mount the motorisation. Install the internal manual back release device at a height of less than 1.8 m. Permanently affix the label concerning the manual back release device near its actuator. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 10 For manoeuvring, drilling and welding operations, wear appropriate protection (special glasses, gloves, ear protection, etc.). 1.7 Regulations Somfy declares that, when used in accordance with these instructions, the product described in these instructions complies with the essential requirements of the applicable European directives, and in particular Machinery Directive 2006/42/EC and Radio Equipment Directive 2014/53/EU.
Page 12 M8x16 TH screw HU8 nut Spindle Circlips Self-tapping screw ∅ 4x8 Single-piece rail 2-part rail 19b1 Sleeve 19b2 Self-tapping screw ∅ 4x8 Bracket HM8 self-locking nut Remote control * 2.2 Description of interface © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 13 : Electronics fault (motor thermal cut-out, etc.) : Drive in low consumption mode Built-in lighting Terminal block 230V power supply Photoelectric cells Orange light Wired control point Gate contact 9.6V battery or solar kit Remote antenna © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 14 S max = 15 m² S max = 15 m² This drive is designed exclusively for installation on the following types of residential garage door: A: up-and-over doors B: sectional doors C: side doors © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 16 If “D” is between 35 and 200 mm, secure the assembly directly to the ceiling. • If “D” is greater than 200mm, secure the assembly so that the height “H” is between 10 and 245 mm. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 17 10 < H < 245 NOTICE For maximum door heights, the motor travel can be optimised by fastening the lintel bracket on the ceiling, with a gap of up to 200 mm from the lintel. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 18 CAUTION The mounting screws must not penetrate the rail (do not drill). Tighten the nut to tension the chain or belt. The compressed rubber must measure between 18 and 20 mm. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 19 NOTICE For maximum door heights, the motor travel can be optimised by fitting the motor head at 90°. 3.6 Mounting on the lintel yoke 3.7 Mounting on the ceiling Attached ceiling © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 20 For adjustable intermediate mounting along the rail, or mounting at a dimension h between 250 mm and 550 mm, use the ceiling mounting kit, part no.: 9014462 © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 21 Up-and-over door: do not cut the arm. 3.9 Setting and mounting the opening stop Release the carriage using the manual back release device and move the door to the open position. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 22 18 < x < 20 mm The rails are supplied pre-tensioned and checked. If necessary, adjust this tension. CAUTION The rubber or tension spring must never be completely compressed during operation. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 23 Dexxo Compact 1000 io is configured by default for installation on a sectional door. If the drive is installed on a side or up-and-over door, change the value of parameter P5: Door type Values 1: Sectional 2: Side 3: Up-and-over © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 24 Auto-programming is used to adjust the speed, maximum torque and slowing zones. NOTICE The opening and closing slowing zones are set to a default distance of about 20 cm. The door must not encounter any sticking points in the slowing zone. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 25 ð The door closes at nominal speed, then reduced speed until it reaches the memorised closed position (closing force limited to 400 N). è The "SET" indicator light is continuously lit, and then goes out after a few seconds. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 26 After 15 minutes with no activity, the product will switch to low consumption mode. The SET indicator light goes out. The 24VDC auxiliary power supply is deactivated. Pressing a button will make the product exit low consumption mode for 15 minutes. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 27 DEXXO COMPACT io P4 (low consumption mode): Inactive The product never switches to low consumption mode. The SET indicator light is continuously lit. The 24VDC auxiliary power supply is still active. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 28 5.4 Specific modes See the user booklet. 5.5 User training Train all users in how to use this motorised door safely (standard use and locking principle) and in the mandatory periodic checks. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 29 CELL Cells or accessories +24V Tx cell 0V Rx cells input CELL / STOP STOP Gate contact START Complete opening control input BATT Compatible with 9.6V battery and 24V solar kit © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 30 6.2.2 Orange light BATT STOP CELL FLASH 10 9 If Sequential operating mode + closing time-delay is activated via TaHoma Pro, the orange light will flash for 2 s before the movement starts. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 31 DEXXO COMPACT io 6.2.3 Video door phone BATT STOP CELL FLASH 10 9 6.2.4 Antenna BATT STOP CELL FLASH 10 9 Connect the antenna cable to terminals 1 (core) and 2 (braid). © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 32 In the event of a leak from a component, ensure that no liquid comes into contact with the skin or eyes. If this should happen, wash the area affected with plenty of water and seek medical advice. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 33 In the event of a leak from a component, ensure that no liquid comes into contact with the skin or eyes. If this should happen, wash the area affected with plenty of water and seek medical advice. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 34 The auto-test is run every operating cycle. Low consumption mode Values 1: Active 2: Inactive Door type Values 1: Sectional 2: Side 3: Up-and-over © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 35 Adjust closing time-delay in sequential + closing time-delay modes • Set independent opening and closing speeds • Set the closing slowing speed • Set the independent opening and closing slowing zone length • Adjust the partial opening position. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 36 Press the remote control buttons briefly and simultaneously. Briefly press the button selected for the function control. ð The integrated lighting and “PROG” indicator light flash for 5 s. Complete opening control © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 38 Press and hold the button to be copied on the previously memorised remote control for 2 seconds. Briefly press the buttons on the new remote control simultaneously. Briefly press the button selected to control the drive on the new remote control. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 39 ð The integrated lighting and “PROG” indicator light flash for 5 s. 8.2.2 By copying a previously memorised remote control CAUTION This operation must be carried out close to the drive. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 40 My button Down button Complete opening Complete opening Stop Complete closing Partial opening Complete opening If door closed or open: par- Complete closing tial opening If door moving: stop Built-in lighting © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 41 This function enables automatic activation of remote lighting connected to the io light receiver during garage door movements. NOTICE For this operation, use a Somfy io control point already saved on the io light receiver. Press the "PROG" button on the saved control point until the light switches on.
Page 42 If the SET indicator light is off, briefly press a button to exit low consumption mode. Press the “SET” button (≈ 7 s) until the “SET” indicator light flashes quickly. This causes all settings to be reset to the default values. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 43 Press the "SET", "+" and "-" buttons simultaneously. The programmes are locked. The SET and PROG indicator lights flash rapidly for 5 seconds when the "SET" button is pressed. To access programming again, repeat the same procedure. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 44 12.3 Safety devices failure In the event of a photoelectric cell failure, a key contact connected between terminals 2 and 10 enables the motorised product to be controlled in dead-man mode after 3 minutes. © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 45 DEXXO COMPACT io 12.4 TaHoma Pro settings CAUTION Additional settings may have been made with the TaHoma Pro tool, and are not accessible with the motor interface (see TaHoma Pro settings [ 35]). © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 46 Automatic closing mode Programmable with TaHoma Pro Orange light warning 2 s in sequential mode with closing time delay Partial opening control Gradual starting Closing slowing zone Programmable: 3 possible values © Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
Page 47 SOMFY ACTIVITES SA 50 avenue du Nouveau Monde 74300 CLUSES FRANCE www.somfy.com 5175773B...
