Operating Guide | VLT® Decentral Drive FCD 302
Table 15: Description of Front Indicator Lights - (continued)
Indicator name
Color
Alarm
Red
(1)
Bus MS
(1)
Bus NS1
(1)
Bus NS2
1) Only relevant if an optional fieldbus is present. See fieldbus-dedicated guides for specific information.
6.4 Local Control Panel Operation
6.4.1 Overview of the LCP
Easily program the drive via the local control panel (LCP).
Status
1234rpm
1
43.5Hz
Run OK
Quick
Status
2
Menu
OK
On
3
Warn.
Alarm
4
Off

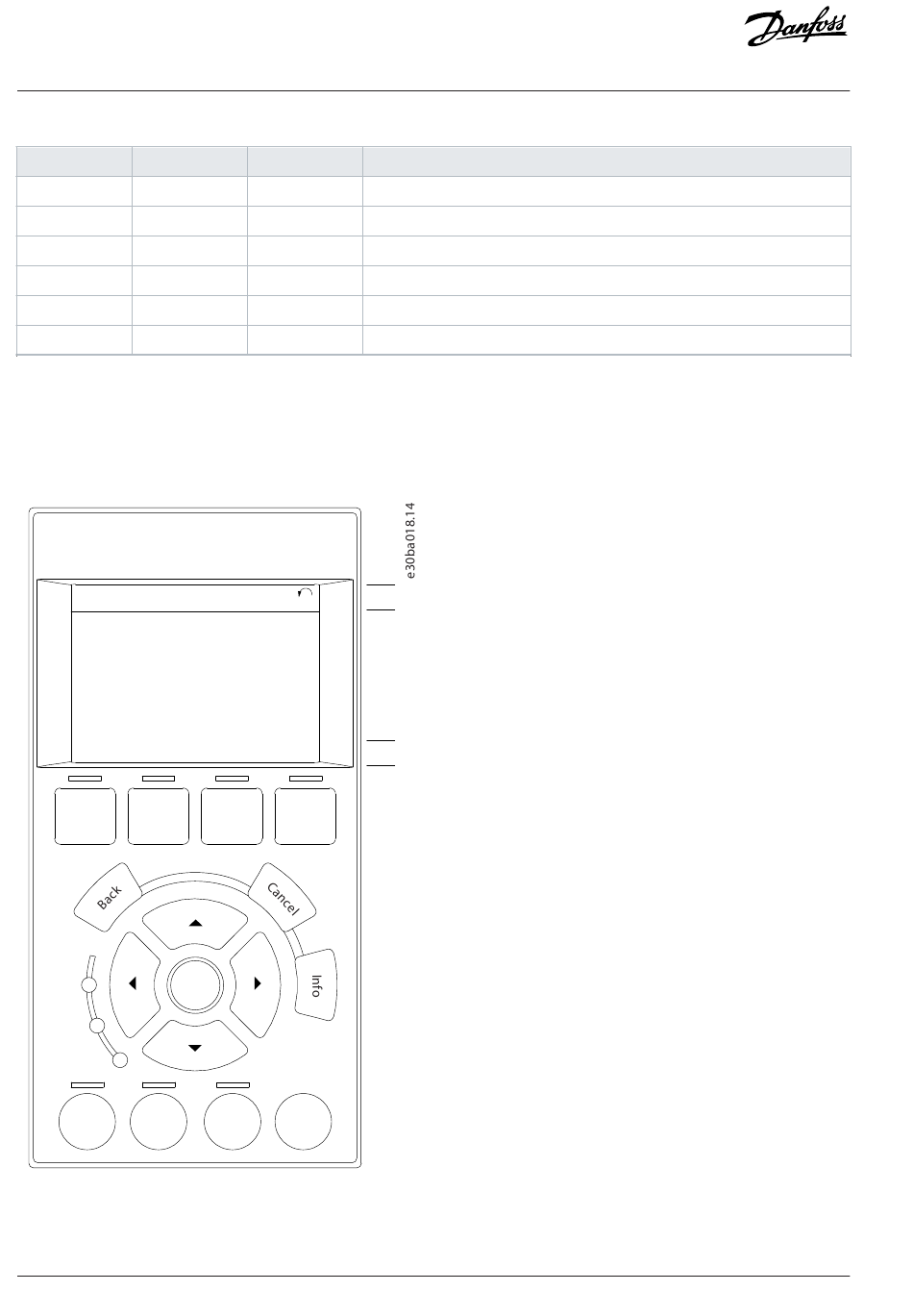

Figure 29: The LCP
42
| Danfoss A/S © 2025.04
Status
Off
Flashing
Off
1(0)
10.4A
43.5Hz
Main
Alarm
Menu
Log
Reset
Description
No warning is present.
Alarm is present.
No alarm is present.
Bus module status.
Bus network status 1.
Bus network status 2.
a
b
c
Operating the Drive
AQ267036816112en-000301 / 130R0208
