Operating Guide | VLT® Decentral Drive FCD 302
431.5 mm (16.98 in)
380 mm (14.96 in)
32 mm
(1.25 in)
415 mm (16.33 in)
449.5 mm (17.69 in)

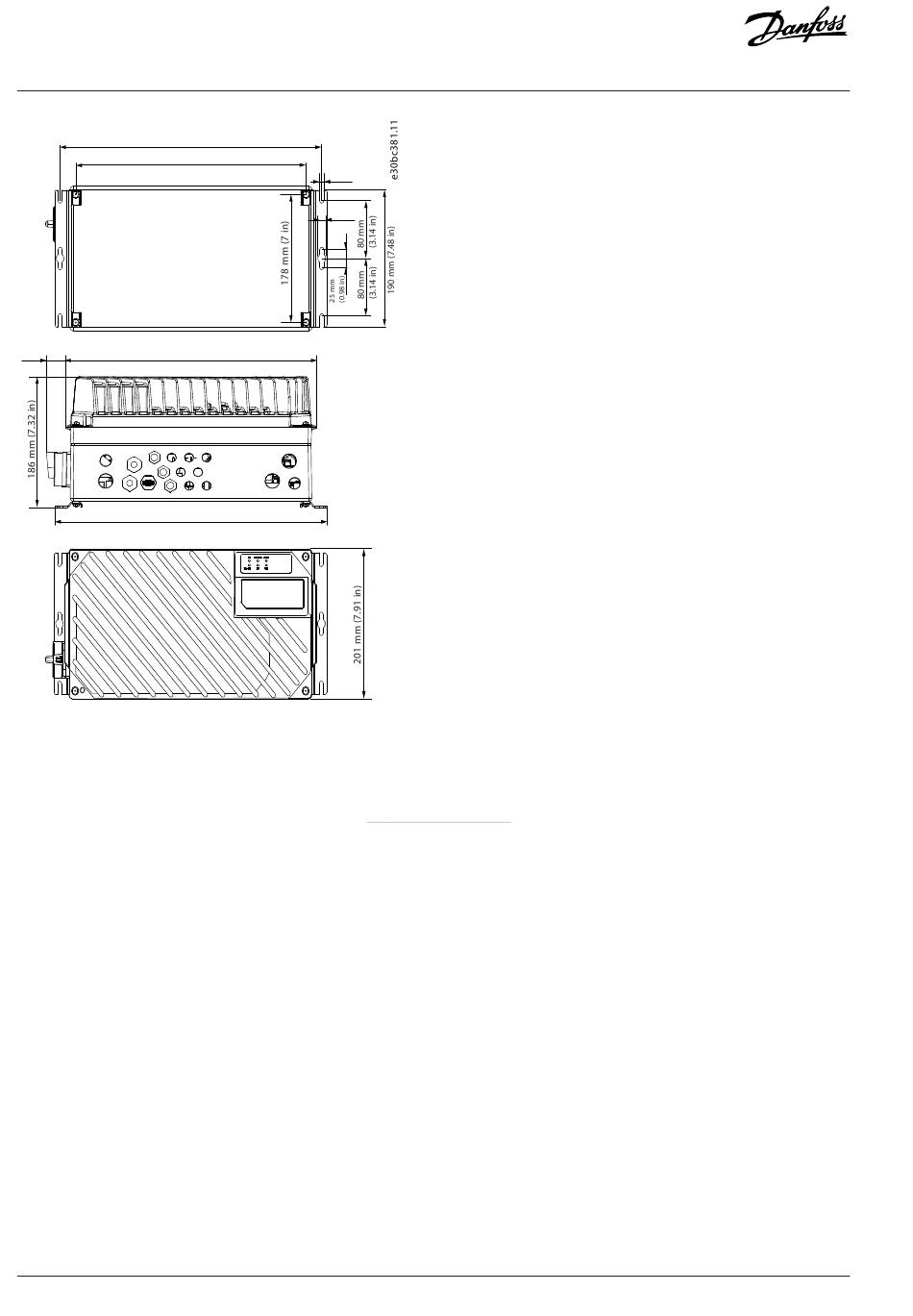

Figure 7: Dimensions VLT® Decentral Drive FCD 302 Large Unit
2.3 Storage
Ensure that the requirements for storage are fulfilled. See
transport.
