Operating Guide | VLT® Decentral Drive FCD 302

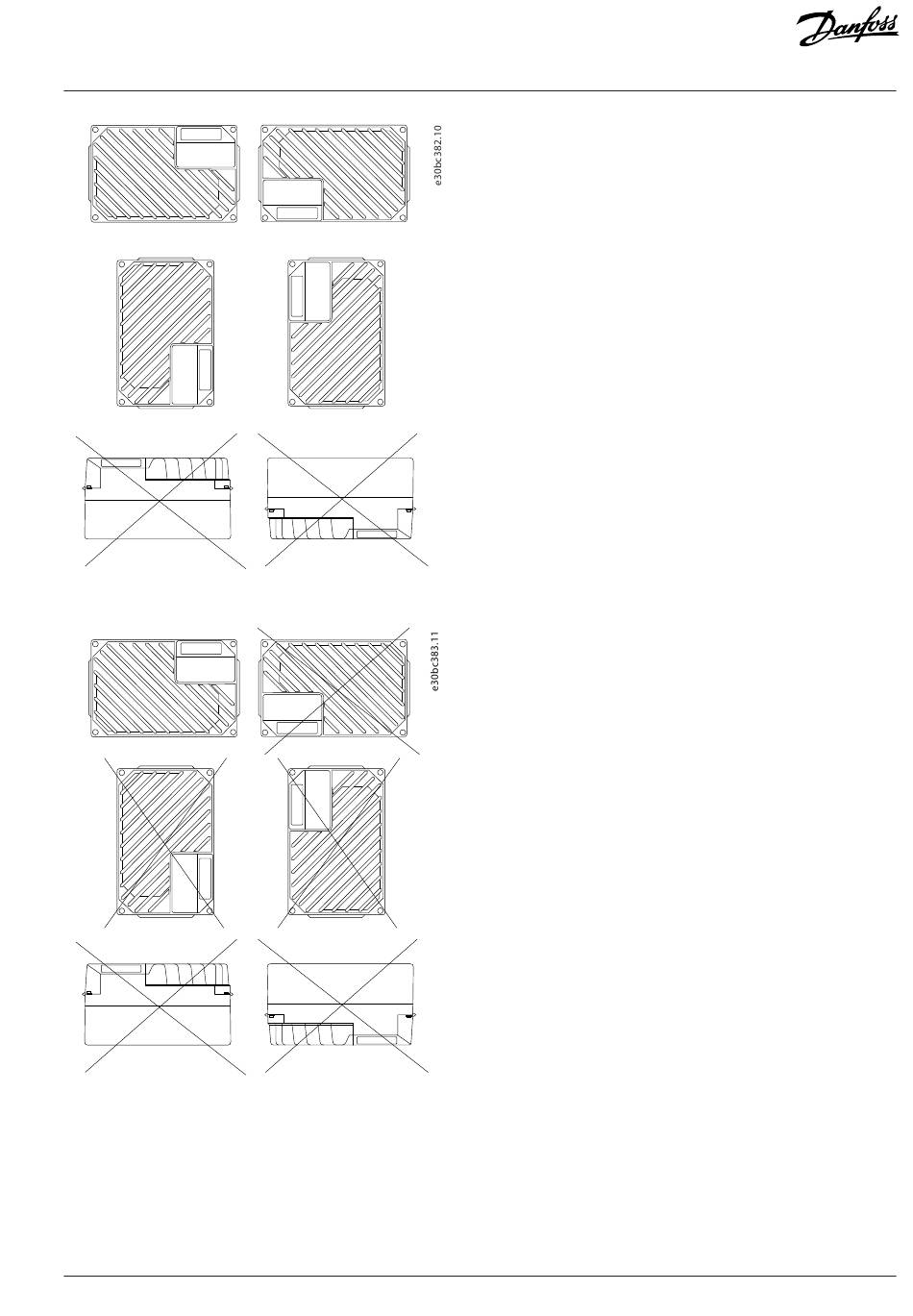

Figure 10: Allowed Mounting Positions - Standard Applications
Figure 11: Allowed Mounting Positions - Hygienic Applications
3.4.2 Installing the Inverter Part
Procedure for compressing the gasket between the 2 parts.
1.
Tighten the 4 connection screws to torque 2.8–3.0 Nm (24–26 in-lb).
2.
Tighten the 4 screws in diagonally opposite order.
Danfoss A/S © 2025.04
Mechanical Installation
AQ267036816112en-000301 / 130R0208 |
21
