Operating Guide | VLT® Decentral Drive FCD 302
Table 5: Terminals 96, 97, 98 - (continued)
Terminal
U1 V1
PE –
DRIVE AND MOTOR CONNECTIONS
Do not install power factor correction capacitors between the drive and the motor. Do not wire a starting or pole-changing device
between the drive and the motor.
1.
Connect the motor to terminals 96, 97, 98.
2. Connect ground to PE terminal.
3. Ensure proper grounding of the motor cable shield at both the motor and drive ends.
4.6.2 Grounding Shielded Cable
Grounding clamps are provided for motor and control wiring.

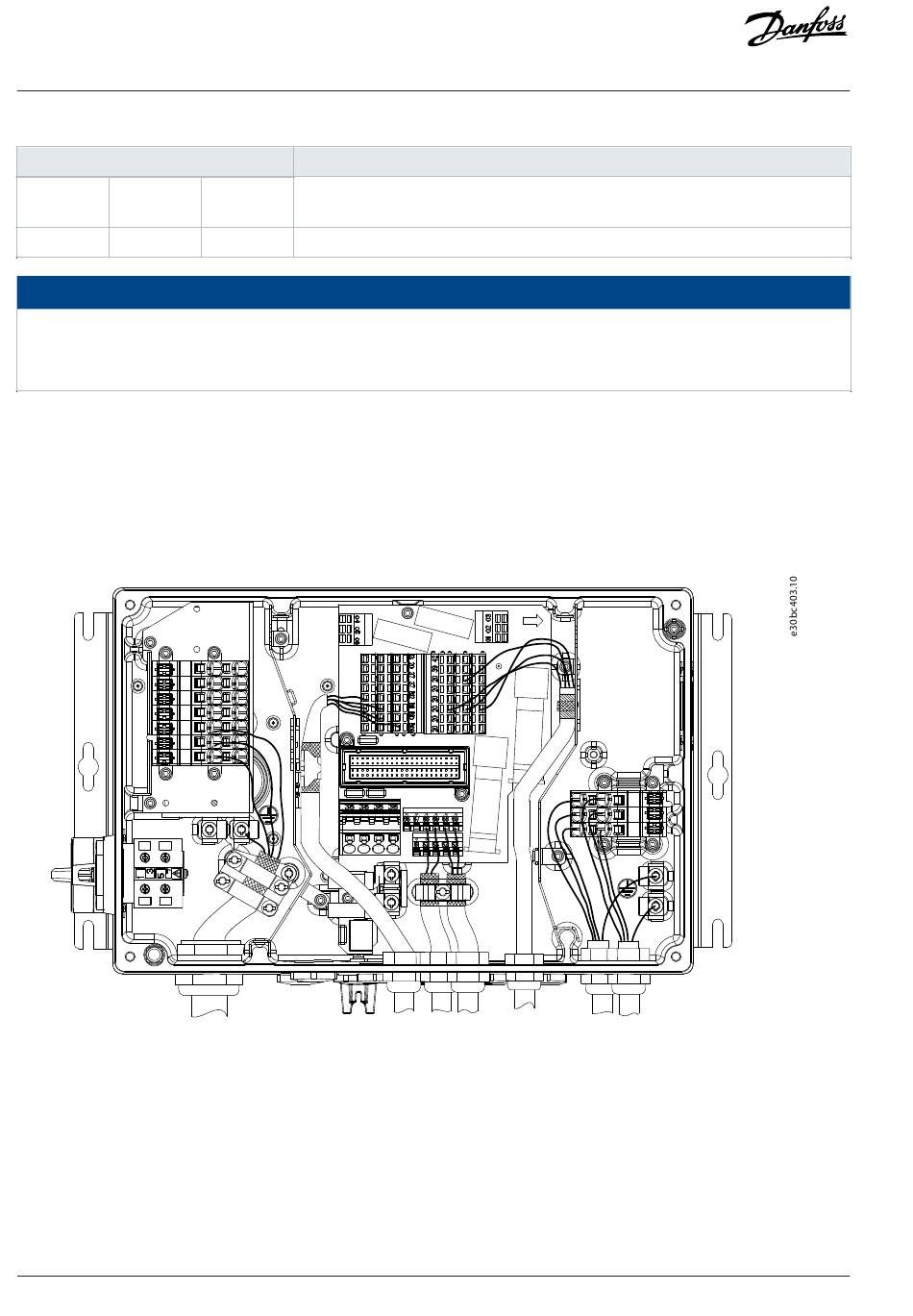

Figure 21: Grounding Clamp for Motor and Control Wiring (Small Unit)
30 | Danfoss A/S © 2025.04
Description
W1 6 wires out of the motor, star connected. Connect U2, V2, W2 separately (optional termi-
nal block)
– Ground connection
NOTICE
Electrical Installation
AQ267036816112en-000301 / 130R0208
