KG200Z-TE-B

User Guide

Short-Range Module Series

Version: 1.0

Date: 2024-09-29

Status: Released

Need help?

Do you have a question about the Short-Range Module Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Quectel Short-Range Module Series

Page 1 KG200Z-TE-B User Guide Short-Range Module Series Version: 1.0 Date: 2024-09-29 Status: Released...
Page 2 Short-Range Module Series At Quectel, our aim is to provide timely and comprehensive services to our customers. If you require any assistance, please contact our headquarters: Quectel Wireless Solutions Co., Ltd. Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai...
Page 3 Except as otherwise set forth herein, nothing in this document shall be construed as conferring any rights to use any trademark, trade name or name, abbreviation, or counterfeit product thereof owned by Quectel or any third party in advertising, publicity, or other aspects.
Page 4 Manufacturers of the terminal should notify users and operating personnel of the following safety information by incorporating these guidelines into all manuals of the product. Otherwise, Quectel assumes no liability for customers’ failure to comply with these precautions.
Page 5 Short-Range Module Series About the Document Revision History Version Date Author Description 2024-09-04 Paul YU Creation of the document 2024-09-29 Paul YU First official release KG200Z_TE-B_User_Guide 4 / 34...
Page 6 Short-Range Module Series Contents Safety Information ............................3 About the Document ........................... 4 Contents ............................... 5 Table Index ..............................6 Figure Index ..............................7 Introduction ............................8 Product Overview ..........................9 2.1. Top and Bottom Views ........................ 9 2.2. Component Placement ......................10 Kit Accessories &...
Page 7 Short-Range Module Series Table Index Table 1: Component Information .........................11 Table 2: Accessory List ..........................12 Table 3: Description of Power Switch and Reset Button ................16 Table 4: Description of Test Points ......................19 Table 5: Description of ST-LINK Connector ....................22 Table 6: Description of Status LEDs ......................
Page 8 Short-Range Module Series Figure Index Figure 1: Top View ............................9 Figure 2: Bottom View ..........................10 Figure 3: Component Placement ....................... 10 Figure 4: TE-B Kit Accessories ........................12 Figure 5: TE-B Kit Accessory Assembly ..................... 13 Figure 6: Power Supply for KG200Z-TE-B ....................14 Figure 7: Power Switch ..........................
Page 9 Short-Range Module Series Introduction To help you to develop applications with Quectel KG200Z conveniently, Quectel supplies corresponding development board (KG200Z-TE-B) to test the module. This document can help you quickly understand KG200Z-TE-B interface specifications, RF characteristics, electrical and mechanical details and know how to use it.

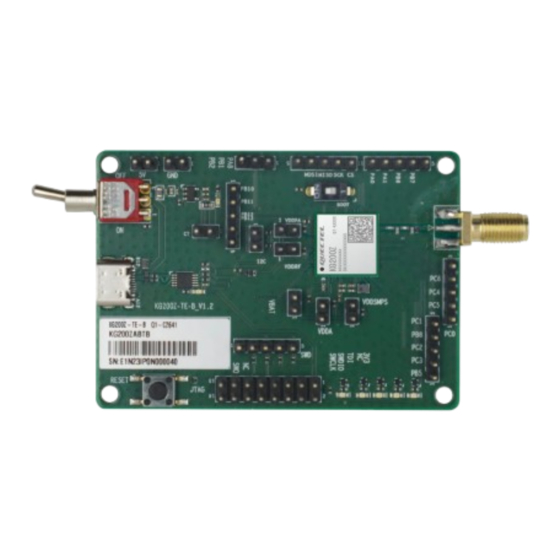

Page 10 Short-Range Module Series Product Overview KG200Z-TE-B is a development board that supports a series of interfaces. It can be used for basic functionalities test and further development of KG200Z. 2.1. Top and Bottom Views Figure 1: Top View KG200Z_TE-B_User_Guide 9 / 34...
Page 11 Short-Range Module Series Figure 2: Bottom View 2.2. Component Placement J0104 J0105 J0206 J0203 J0208 D0104 J0111 U0102 J0110 S0101 J0103 J0108 U0103 KG200Z J0209 J0202 J0109 U0101 J0207 J0113 D0102 J0112 J0102 J0106 J0205 J0107 J0101 KG200Z-TE-B_V1.3 J0204 S0102...
Page 12 Short-Range Module Series Table 1: Component Information Interface Reference No. Description KG200Z U0103 The KG200Z module Bridge IC U0101 USB-to-UART bridge IC U0102 5 V to 3.3 V USB Type-C power supply interface J0102 Typical supply voltage: +5 V Power Supply Interfaces...
Page 13 Short-Range Module Series Kit Accessories & Assembly 3.1. Kit Accessories Figure 4: TE-B Kit Accessories Table 2: Accessory List Item Description Quantity (pcs) Cable USB Type-A to Type-C cable Antenna LoRa antenna KG200Z_TE-B_User_Guide 12 / 34...
Page 14 Short-Range Module Series 3.2. Kit Assembly Figure 5: TE-B Kit Accessory Assembly KG200Z_TE-B_User_Guide 13 / 34...
Page 15 Short-Range Module Series Interface Applications This chapter outlines the information and applications of some hardware interfaces of KG200Z-TE-B. 4.1. Power Supply Interfaces KG200Z can be powered by J0102 (USB Type-C power supply interface) or J0104/J0105 (2-pin header). The simplified schematic of KG200Z-TE-B is shown in the following figure.
Page 16 Short-Range Module Series Figure 7: Power Switch Figure 8: Reset Button KG200Z_TE-B_User_Guide 15 / 34...
Page 17 Short-Range Module Series Table 3: Description of Power Switch and Reset Button Reference No. Description S0101 VBAT ON/OFF control S0102 Resets the module 4.3. USB Connector KG200Z-TE-B integrates with a USB connector (J0102) connecting to the module's GPIO2 and GPIO3 via the USB-to-UART bridge IC (U0101).
Page 18 Short-Range Module Series KG200Z J0102 U0101 3.3 V I/O USB-to-UART GPIO2 USB Type-C GPIO3 Bridge Figure 10: USB-to-UART Connection 4.4. BOOT Header KG200Z-TE-B features a BOOT header (J0111) as shown below. Figure 11: BOOT Header 4.5. LPUART Headers KG200Z-TE-B has two LPUART headers (J0112 and J0113), which are connected to the module's GPIO2 and GPIO3 respectively with the jumpers as shown below.
Page 19 Short-Range Module Series Figure 12: LPUART Headers 4.6. RF Connector KG200Z-TE-B is equipped with a RF SMA connector (J0103), designed for connecting to the module's ANT_LORA. The simplified schematic of RF connection is shown in the following figure. KG200Z J0103...
Page 20 Short-Range Module Series 4.7. Test Points KG200Z-TE-B features a series of test points, which can help you to obtain the corresponding waveform of some signals. J0108, J0203, J0206, J0208, J0209, J0202, J0110, J0109, J0106, J0107, J0101, J0207, J0204, J0205 are illustrated in the following figures.
Page 21 Short-Range Module Series Pin No. Pin Name Description Connected directly to GPIO8 of the module Connected directly to GPIO15 of the module Connected directly to GPIO16 of the module J0204 Pin No. Pin Name Description Connected directly to GPIO19 of the module...
Page 22 Short-Range Module Series Pin No. Pin Name Description Connected directly to GPIO30 of the module Connected directly to GPIO35 of the module Connected directly to GPIO34 of the module Connected directly to GPIO36 of the module Ground J0208 Pin No.
Page 23 Short-Range Module Series Figure 15: ST-LINK Connector Table 5: Description of ST-LINK Connector J0201 Pin No. Pin Name Description 1, 2 Power input pin Test data input SWDIO Serial wire debug input/output SWCLK Serial wire debug clock Test data output...
Page 24 Short-Range Module Series Figure 16: Status LEDs Table 6: Description of Status LEDs RefDes. Description Indicates the power status of U0101 D0102 Light on: high level Light off: low level Indicates the power status of the module's VBAT D0104 Light on: high level...
Page 25 Short-Range Module Series Light on: high level Light off: low level KG200Z_TE-B_User_Guide 24 / 34...
Page 26 Short-Range Module Series Operating Procedures The chapter outlines how to use the KG200Z-TE-B for testing and evaluating the module. 5.1. Power Up Connect J0102 (USB connector) of KG200Z-TE-B to PC with the USB Type-A to Type-C cable. Switch S0101 (Power Switch) to ON state, then D0104 (VBAT ON/OFF indicator) will light up.
Page 27 Short-Range Module Series Figure 17: STM32 STLink Device 5.3. Firmware Upgrade You can install STM32CubeProgrammer tool provided by Quectel on PC for firmware upgrade in normal operating mode and bootloader mode. 5.3.1. Firmware Upgrade in Normal Operating Mode 1. Open the STM32CubeProgrammer tool, and then establish the communication as described in Chapter 5.2.
Page 28 Short-Range Module Series Figure 18: Firmware Download in Normal Operating Mode (1) 4. Click “Download” on the STM32CubeProgrammer of PC. Figure 19: Firmware Download in Normal Operating Mode (2) KG200Z_TE-B_User_Guide 27 / 34...
Page 29 Short-Range Module Series Figure 20: Firmware Download in Normal Operating Mode (3) 5. The firmware upgrade's progress is shown by the progress bar at the bottom of the page. The message “File download complete” indicates that the firmware upgrade is complete.
Page 30 Short-Range Module Series Figure 21: Complete Firmware Upgrade in Normal Operating Mode 5.3.2. Firmware Upgrade in Bootloader Mode Connect the BOOT pin to the VDD pin on J0111 (BOOT header) to reset the module and initiate Bootloader mode, with the jumpers on J0111 as shown below.
Page 31 Short-Range Module Series Open the STM32CubeProgrammer tool, and then establish the communication as described in Chapter 5.2. Select the “UART” port, and click “Connect” until there is “Data read successfully”. Choose the firmware package from “Open file”. Figure 23: Firmware Download in Bootloader Mode Click “Download”...
Page 32 Short-Range Module Series Figure 24: Complete Firmware Upgrade in Bootloader Mode 6. Once the firmware upgrade is complete, connect the BOOT pin to the GND on J0111 (BOOT header) to reset the module and enter into normal operation. Figure 25: Jumpers on J0111 in Normal Operating Mode...
Page 33 Short-Range Module Series 5.4. Reset Press and hold S0102 (reset button) for more than 100 ms, then release it to reset the module. KG200Z_TE-B_User_Guide 32 / 34...
Page 34 Short-Range Module Series Appendix References Table 7: Related Documents Document Name [1] Quectel_KG200Z_Hardware_Design [2] Quectel_QCOM_User_Guide Table 8: Terms and Abbreviations Abbreviation Description Ground GPIO General Purpose Input/Output Integrated Circuit Low-dropout Regulator Light Emitting Diode LPUART Low Power UART Not Connected...
Page 35 Short-Range Module Series Test Data Output UART Universal Asynchronous Receiver & Transmitter Universal Serial Bus VBAT Voltage at Battery (Pin) Drain Voltage KG200Z_TE-B_User_Guide 34 / 34...
