L86
EVB User Guide
GNSS Module Series
Rev. L86_EVB_User_Guide_V1.0
Date: 2014-08-18
www.quectel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L86 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quectel L86

Summary of Contents for Quectel L86

  • Page 1 EVB User Guide GNSS Module Series Rev. L86_EVB_User_Guide_V1.0 Date: 2014-08-18 www.quectel.com...
  • Page 2 QUECTEL OFFERS THIS INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR RELIANCE UPON THE INFORMATION.

  • Page 3: About The Document

    GNSS Module Series L86 EVB User Guide About the Document History Revision Date Author Description 2014-08-18 Bond SUN Initial L86_EVB_User_Guide Confidential / Released 2 / 20...

  • Page 4: Table Of Contents

    GNSS Module Series L86 EVB User Guide Contents About the Document ........................... 2 Contents ............................... 3 Table Index ..............................4 Figure Index ..............................5 Introduction ............................6 Introduction to EVB Kit ........................7 2.1. EVB Top and Bottom View ......................7 2.2.
  • Page 5 GNSS Module Series L86 EVB User Guide Table Index TABLE 1: EVB BOTTOM VIEW ........................... 8 TABLE 2: EVB ACCESSORIES .......................... 9 TABLE 3: PINS OF UART PORT ........................11 TABLE 4: SWITCHES AND BUTTONS ......................13 TABLE 5: THE DESCRIPTION OF TEST POINTS ................... 14 TABLE 6: DESCRIPTION OF POWERGPS WINDOW ..................
  • Page 6 GNSS Module Series L86 EVB User Guide Figure Index FIGURE 1: EVB TOP VIEW ..........................7 FIGURE 2: EVB BOTTOM VIEW ........................8 FIGURE 3: EVB ACCESSORIES ........................9 FIGURE 4: MICRO-USB INTERFACE ......................10 FIGURE 5: UART INTERFACE .......................... 11 FIGURE 6: ANTENNA INTERFACE ........................

  • Page 7: Introduction

    GNSS Module Series L86 EVB User Guide Introduction This document defines and specifies the usage of L86 EVB (Evaluation Board). You can get useful information about L86 EVB and GPS demo tool from this document. L86_EVB_User_Guide Confidential / Released 6 / 20...

  • Page 8: Introduction To Evb Kit

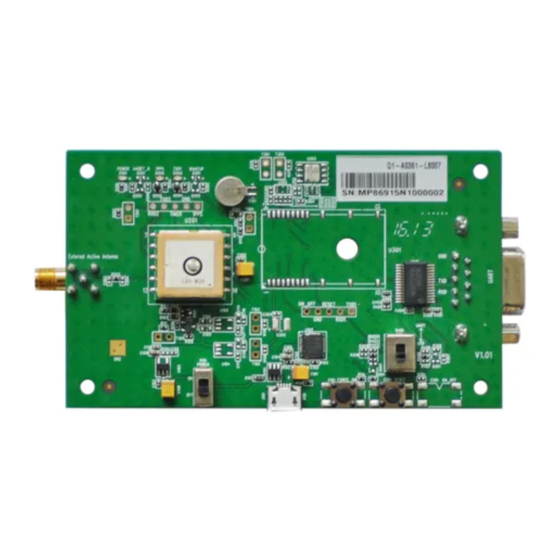

    GNSS Module Series L86 EVB User Guide Introduction to EVB Kit 2.1. EVB Top and Bottom View Figure 1: EVB Top View L86_EVB_User_Guide Confidential / Released 7 / 20...
  • Page 9 GNSS Module Series L86 EVB User Guide Figure 2: EVB Bottom View Table 1: EVB Bottom View Index Description UART port Serial port alternation switch RESET button FORCE_ON Micro-USB port POWER switch PATCH antenna L86 module Active antenna interface Test points...

  • Page 10: Evb Accessories

    GNSS Module Series L86 EVB User Guide 2.2. EVB Accessories Figure 3: EVB Accessories Table 2: EVB Accessories Index Description USB cable L86_EVB_User_Guide Confidential / Released 9 / 20...

  • Page 11: Interface Application

    3.1. USB Interface Figure 4: Micro-USB Interface The main power is supplied via Micro-USB interface. Quectel provides two ways for data communication: Micro-USB and UART interface which are controlled by serial port alternation switch (S401). If you want to use UART in order to output NEMA, both RS232 and Micro-USB cable are necessary. So the easier way is to use Micro-USB cable which provides both the power and output NEMA.

  • Page 12: Uart Interface

    GNSS Module Series L86 EVB User Guide 3.2. UART Interface Figure 5: UART Interface Table 3: Pins of UART Port Signal Description Receive data Transmit data L86_EVB_User_Guide Confidential / Released 11 / 20...

  • Page 13: Antenna Interface

    GNSS Module Series L86 EVB User Guide 3.3. Antenna Interface Antenna Figure 6: Antenna Interface L86_EVB_User_Guide Confidential / Released 12 / 20...

  • Page 14: Switches And Buttons

    3.4. Switches and Buttons Figure 7: Switches and Buttons Table 4: Switches and Buttons Part Name Description Quectel EVB supplies two communicative ways: Serial port alternation Micro-USB and UART which are controlled by switch switch. POWER Control power supply via Micro-USB.

  • Page 15: Test Point

    GNSS Module Series L86 EVB User Guide 3.5. Test Point Figure 8: Test Points Table 5: The Description of Test Points Signal Description TXD1 Transmit data RXD1 Receive data RESET System reset Ground 1PPS 1 pulse per second Logic high will force module to wake up from backup mode.

  • Page 16: Evb And Accessories

    The EVB and its accessories are equipped as shown in Figure 9. Figure 9: EVB and Accessory Equipment NOTE The GNSS active antenna is not included in L86EVB-KIT. If you need it for your application, you can purchase separately from Quectel Sales Support. L86_EVB_User_Guide Confidential / Released 15 / 20...

  • Page 17: Install Device Driver

    GNSS Module Series L86 EVB User Guide Install Device Driver Please note that you need to install the driver of Micro-USB when using Micro-USB for data communication. The driver has been stored in our FTP server. The driver of CP210x can also be downloaded from internet.

  • Page 18: Start Powergps

    Figure 10: PowerGPS Tool After EVB accessories are assembled, turn on the module and start up the PowerGPS. Select a correct COM port and baud rate (L86 module supports 9600bps by default), then click the button “Create Connection”. Figure 11: COM Port and Baud From the PowerGPS window, user can view CNR message, time, position, speed, precision and so on.
  • Page 19 GNSS Module Series L86 EVB User Guide Table 6: Description of PowerGPS Window Icon Description SV with PRN 20. If the position of SV is near to the centre of the Sky View, the elevation angle of SV is close to 90° . Dark blue means this satellite is in tracking.
  • Page 20 GNSS Module Series L86 EVB User Guide Figure 12: MTK Command L86_EVB_User_Guide Confidential / Released 19 / 20...

  • Page 21: Appendix A Reference

    GNSS Module Series L86 EVB User Guide Appendix A Reference Table 7: Reference Document Name Remark Quectel_L86_Hardware_Design L86 Hardware Design Quectel_L86_Protocol_Specification L86 Protocol Specification Quectel_L86_Reference Design L86 Reference Design Table 8: Abbreviations Abbreviation Description Carrier-to-Noise Ratio Global Positioning System GNSS...
