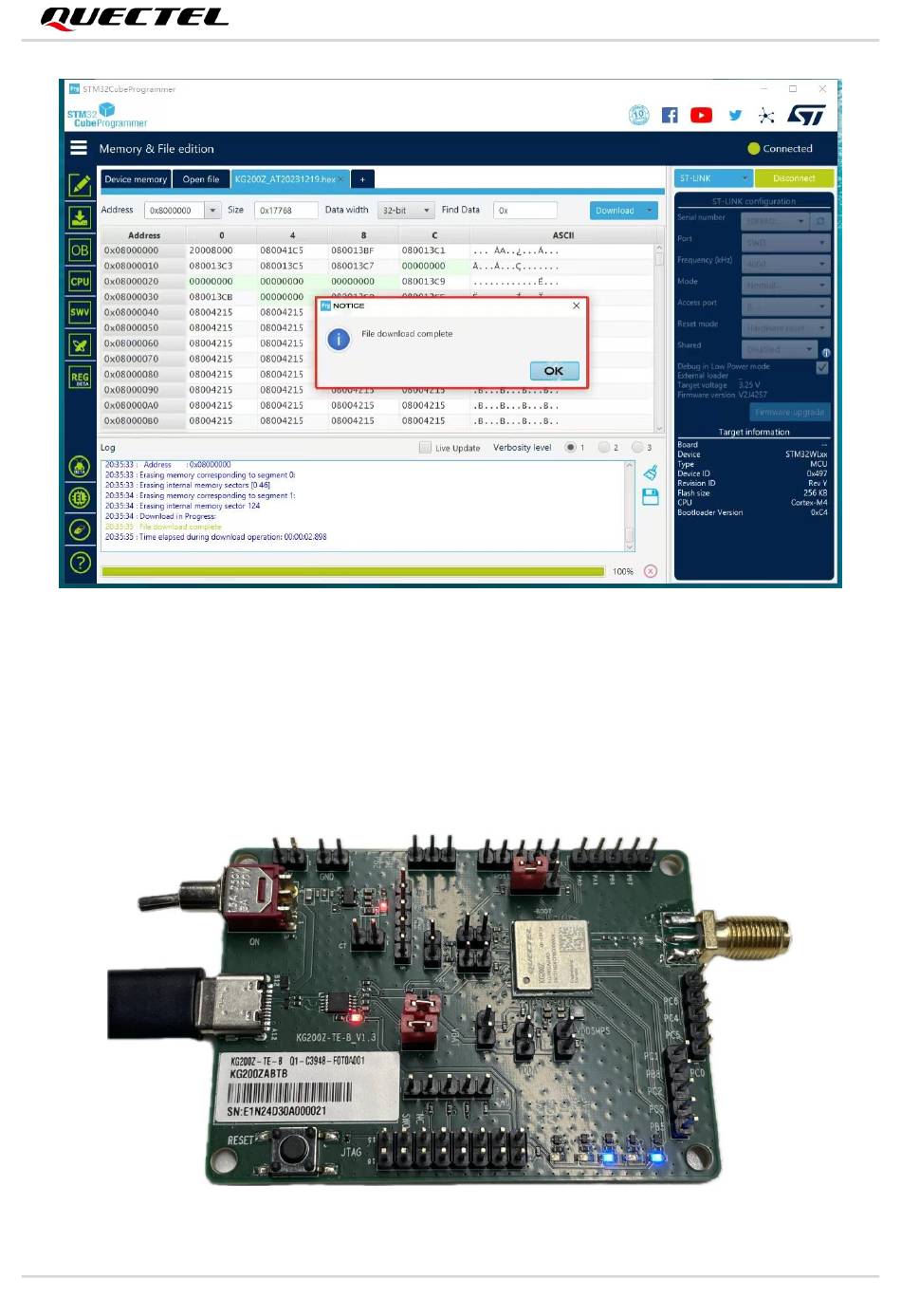

Figure 21: Complete Firmware Upgrade in Normal Operating Mode
5.3.2. Firmware Upgrade in Bootloader Mode
1.
Connect the BOOT pin to the VDD pin on J0111 (BOOT header) to reset the module and initiate
Bootloader mode, with the jumpers on J0111 as shown below.
KG200Z_TE-B_User_Guide
Figure 22: Jumpers on J0111 in Bootloader Mode
Short-Range Module Series
29 / 34
